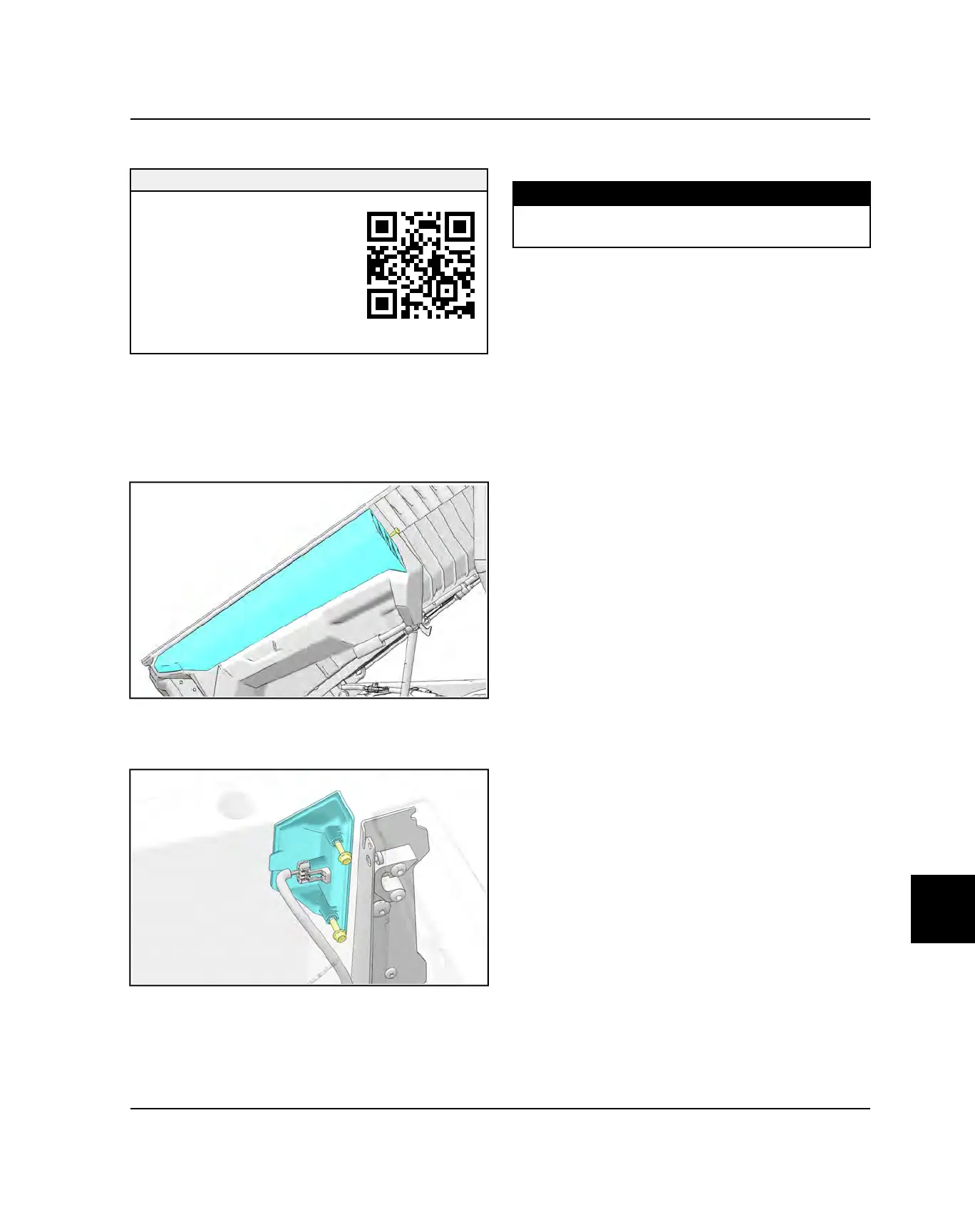

TAIL LIGHT REPLACEMENT
SERVICE VIDEO
A service video has been created
to help highlight this procedure.
To view the video, either:
• Scan the QR Code with a
mobile device
• From a computer, right click
HERE and open link in a new
window.
Before replacing the taillight(s), use a digital multi-meter
to test the harness to ensure the lamp is receiving 12
Volts and that a ground path is present.
1. Lift the cargo box.
2. Remove the fastener holding the cargo box trim panel
to the cargo box and remove the panel.
3. Reaching through the access hole on the outside of
the cargo box, remove the fasteners holding the tail
light to the cargo box.
4. Remove the tail light from the cargo box and
disconnect the wire harness.
5. To install, reverse removal procedure. Torque tail light
fasteners to specification.
TORQUE
Tail Light Fasteners:
4 lb-ft (5 Nm)
DASH LED LIGHT
The vehicle is equipped with an LED light below the dash
that illuminates when the key is turned on. This LED will
stay on for approximately 20 seconds after the key has
been turned off.
