7
9929375 R02 - 2016-2019 GENERAL / GENERAL 4 Service Manual
© Copyright Polaris Industries Inc.
7.41
11. Rotate bearing by hand and check for smooth
rotation. Visually inspect bearing for moisture, dirt, or
corrosion.
NOTICE
Due to extremely close tolerances and minimal wear,
the bearings must be inspected visually, and by feel.
While rotating bearings by hand, inspect for rough
spots, discoloration, or corrosion. The bearings should
turn smoothly and quietly, with no detectable up and
down movement and minimal movement sideways
between inner and outer race.
12.Replace bearing if moisture, dirt, corrosion, or
roughness is evident.

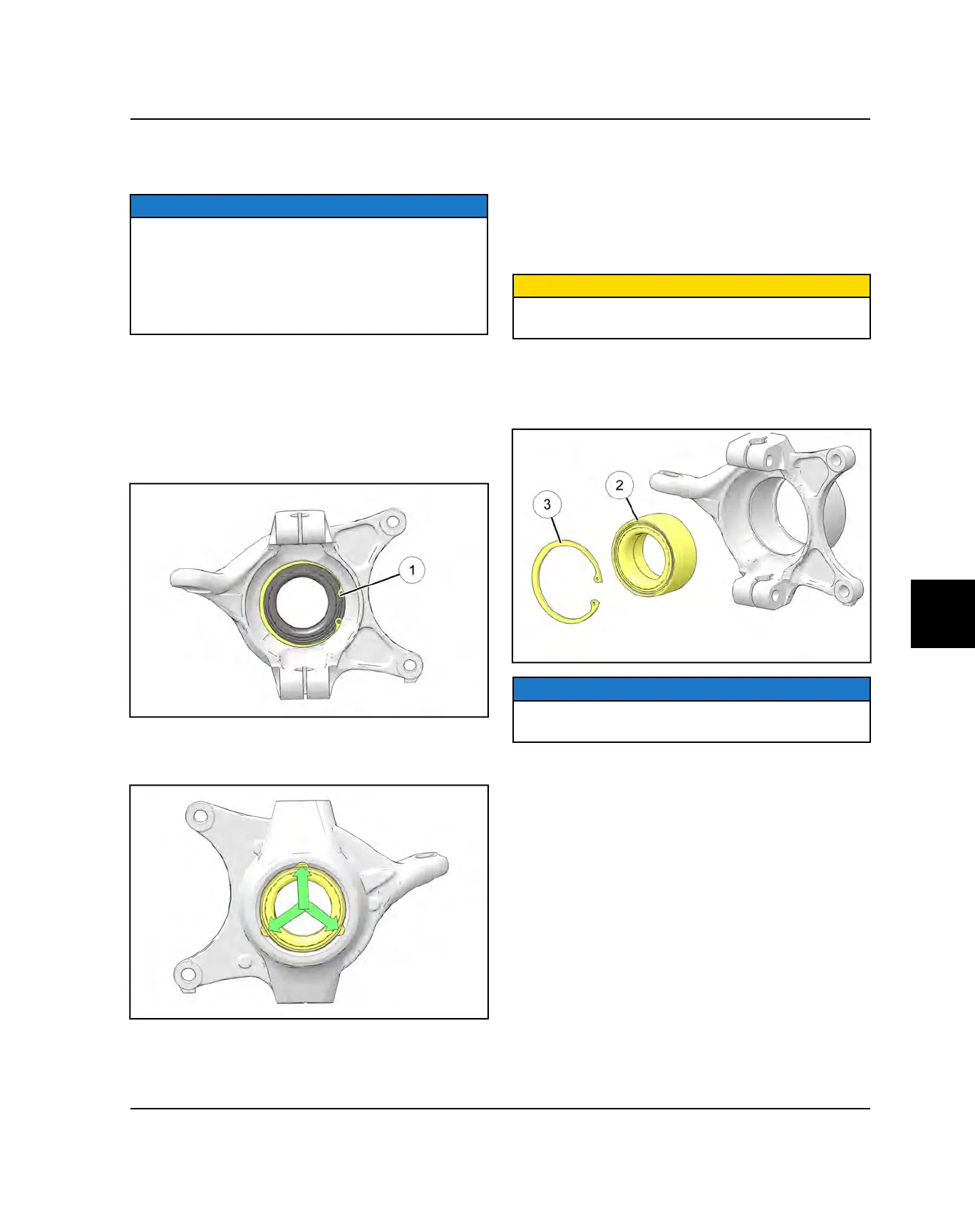

FRONT BEARING REPLACEMENT
BEARING REMOVAL
1. Remove the inner snap ring
q
.
2. From the front side of the bearing carrier, tap on the
outer bearing race with a drift punch in the reliefs as
shown.
3. Drive bearing out evenly by tapping on outer race
only. Once bearing is at bottom of casting, support
casting on outer edges so bearing can be removed.
4. Inspect the bearing carrier housing for scratches,
wear or damage. Replace front bearing carrier if
damaged.
BEARING INSTALLATION
1. Thoroughly clean the front bearing carrier housing
and the outer race on the new bearing. Be sure that
all oil residue has been removed from each surface.
CAUTION
Use an arbor and press only on the outer race,
otherwise bearing damage may occur.
2. Apply Loctite
®
603
™
retaining compound to the outer
circumference of the new bearing
w
race and
carefully press the new bearing into the bearing
carrier housing.
NOTICE
Use care to not allow any of the Loctite
®
compound to
get in the bearing.
3. Wipe the housing clean of any excess compound and
install the snap ring
e
.
FINAL DRIVE
