STABILIZER BAR REMOVAL - FRONT

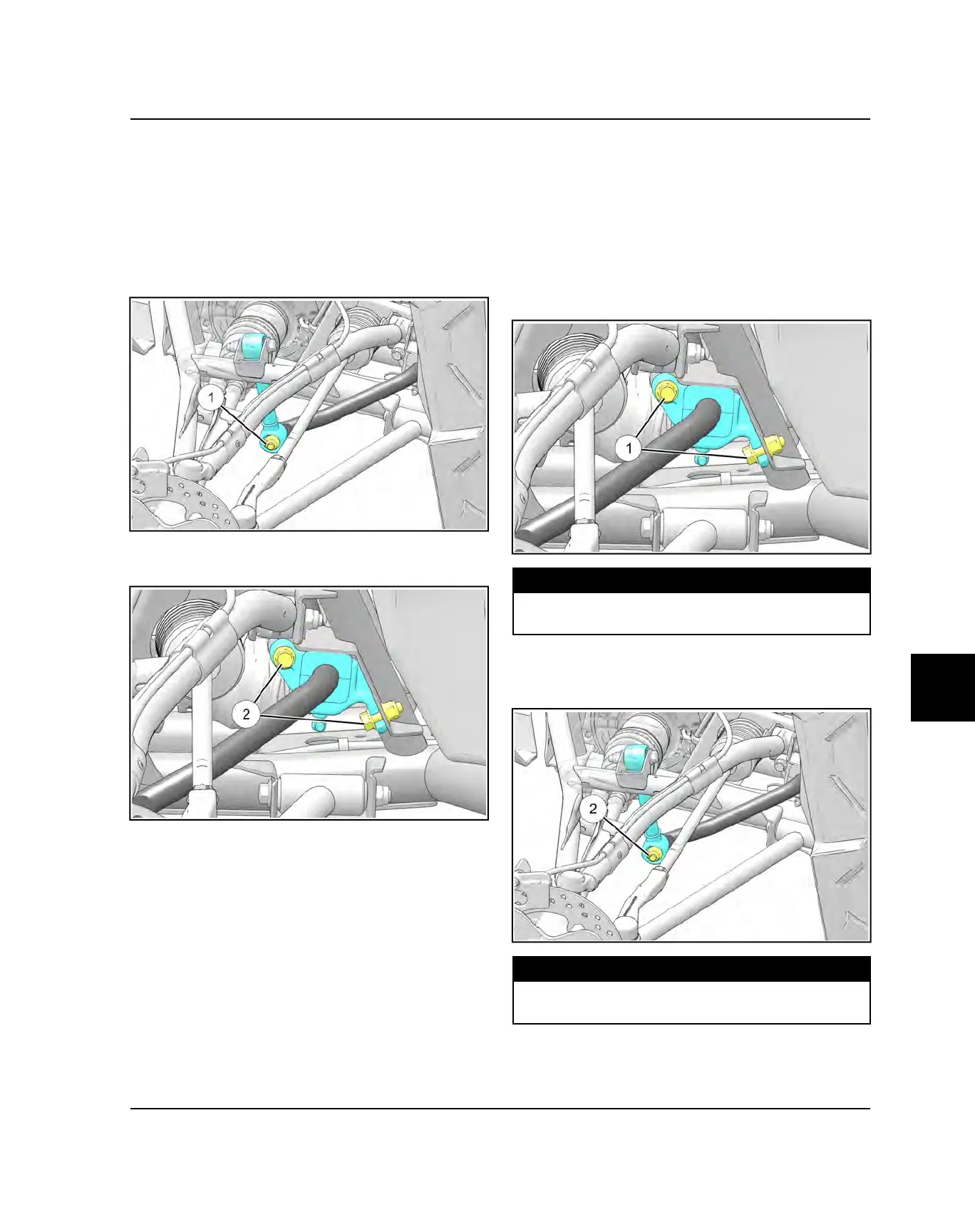

1. Lift and support vehicle by main frame.
2. Remove wheels.
3. Identify / mark top side of the stabilizer bar to
reference during installation.
4. Remove fastener
q
connecting stabilizer bar to
stabilizer bar link. Repeat step for opposite side.
5. Remove the fasteners
w
retaining the stabilizer bar
mounts / bushings to the vehicle frame.
6. Carefully remove the stabilizer bar.
7. Inspect the stabilizer bar for straightness. Inspect the
pivot bushings and replace if needed.
STABILIZER BAR INSTALLATION - FRONT
1. Carefully install stabilizer. Align mounting brackets
with marks from removal.
2. Install bushings and mounting brackets onto stabilizer
bar. Align mounting brackets with marks from
removal.
3. Install the fasteners
q
retaining the stabilizer bar
mounts / bushings to the vehicle frame. Torque
fasteners to specification.
TORQUE
Stabilizer Bar Mount Fasteners:
42 lb-ft (57 Nm)
4. Install the fasteners
w
retaining the stabilizer bar to
the linkage on each side of the vehicle. Torque
fasteners to specification.
TORQUE
Stabilizer Bar Link Fasteners (Front):
20 ft-lbs (27 Nm)
