9929375 R02 - 2016-2019 GENERAL / GENERAL 4 Service Manual
© Copyright Polaris Industries Inc.

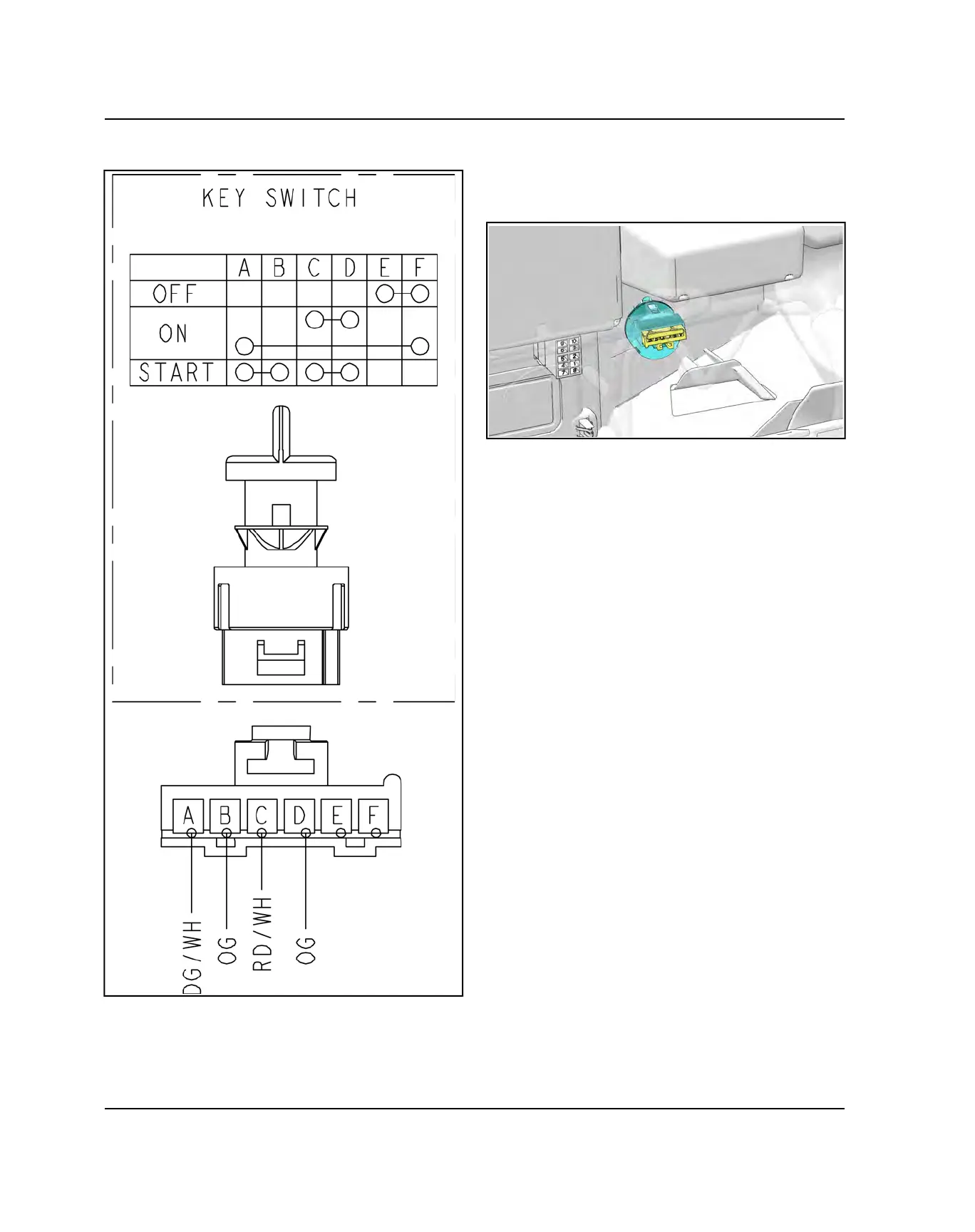

IGNITION (KEY) SWITCH TESTING
1. Disconnect the key switch harness from the back side
of the dash by depressing the connector lock and
pulling on the connector. Do not pull on the wiring.
2. Test between the 3 sets of outputs (OFF / ON /
START). If any of the tests fail, replace ignition switch
assembly.
• Turn the ignition key to ON. There should be
continuity between switch pins C and D.
• Turn the ignition key to START. There should be
continuity between switch pins A and B; C and D.
ELECTRICAL
