9929375 R02 - 2016-2019 GENERAL / GENERAL 4 Service Manual
© Copyright Polaris Industries Inc.
9.15

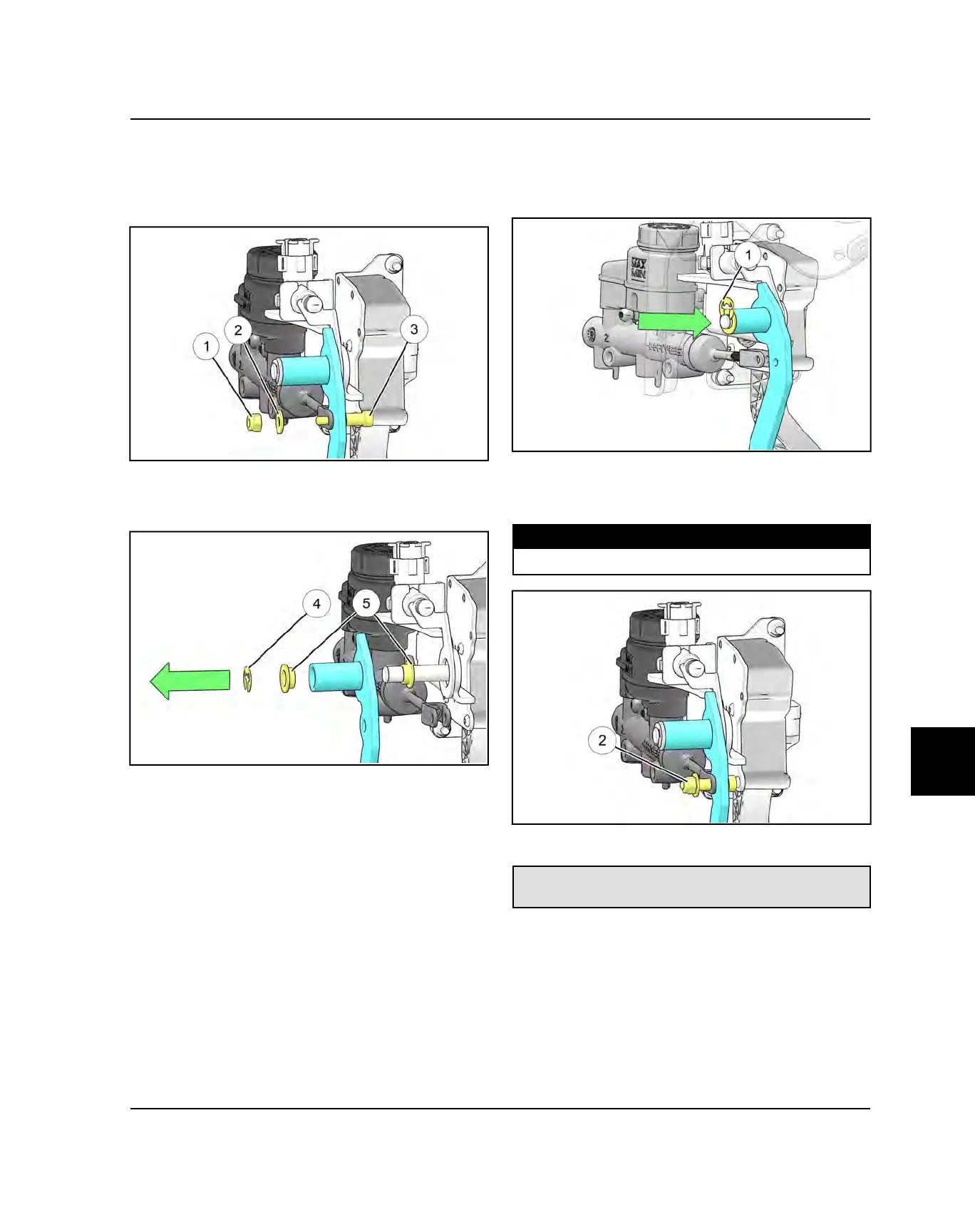

BRAKE PEDAL REMOVAL (INTL)
1. Remove the nut
q
and washer
w
from the shoulder
bolt
e
that attaches the master cylinder to the brake
pedal lever. Remove shoulder bolt.
2. Remove the E-clip
r
from the pedal mount and
remove the brake pedal lever from the vehicle with its
bushings
t
.
BRAKE PEDAL INSTALLATION (INTL)
1. Install the brake pedal onto pedal pivot shaft.
2. Insert E-Clip
q
into end of pivot shaft
3. Install the shoulder bolt, washer and nut
w
connecting the master cylinder to the brake pedal.
Torque to specification.
TORQUE
Brake Pedal Shoulder Bolt:13 lb-ft (18 Nm)
4. Ensure brake pedal freeplay is within specification.
Brake Pedal Free-play:
0.090 in (2.28 mm)
BRAKE SYSTEM
