PLANETARY DIFFERENTIAL BUSHING

REPLACEMENT

NOTICE

If the differential is completely assembled, perform the

“Planetary Differential Disassembly” procedure.

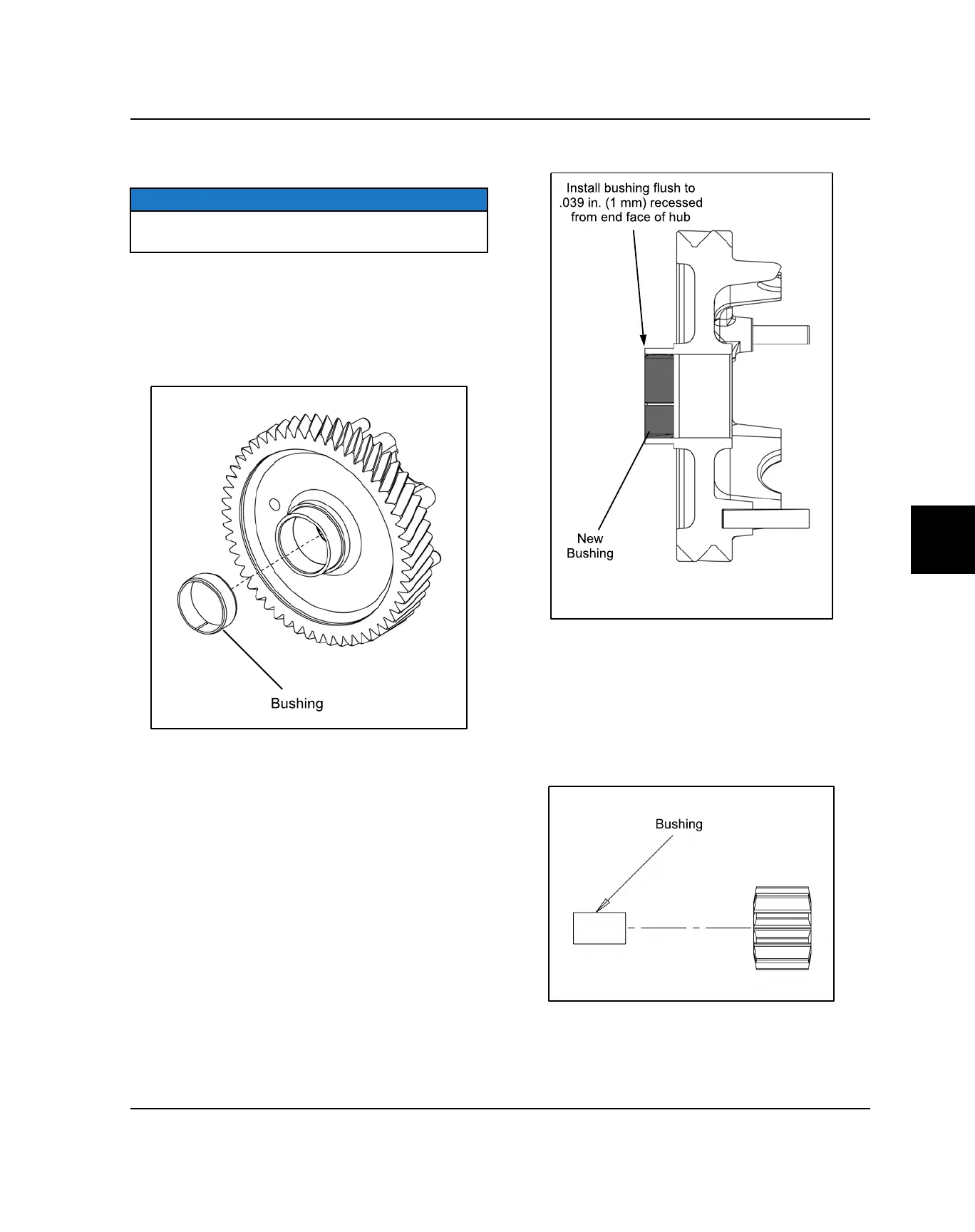

Ring Gear Bushing Replacement

1. Press the old bushing out of the ring gear.

2. Thoroughly clean the bore of the ring gear and check

for any unwanted burs.

3. Press the new bushing into the ring gear housing.

4. Install the bushing to the specified depth as shown.

Planet Gear Bushing Replacement

5. Press the old bushing out of the planet gear.

6. Thoroughly clean the bore of the planet gear and

check for any unwanted burs.

7. Press the new bushing into the planet gear until it is

flush on each end. Repeat this procedure for the

remaining planet gears.
