9929375 R02 - 2016-2019 GENERAL / GENERAL 4 Service Manual
© Copyright Polaris Industries Inc.
6.13
HOLE YEAR
VEHICLE
DESCRIPTION
4 2018-19 RANGER 900

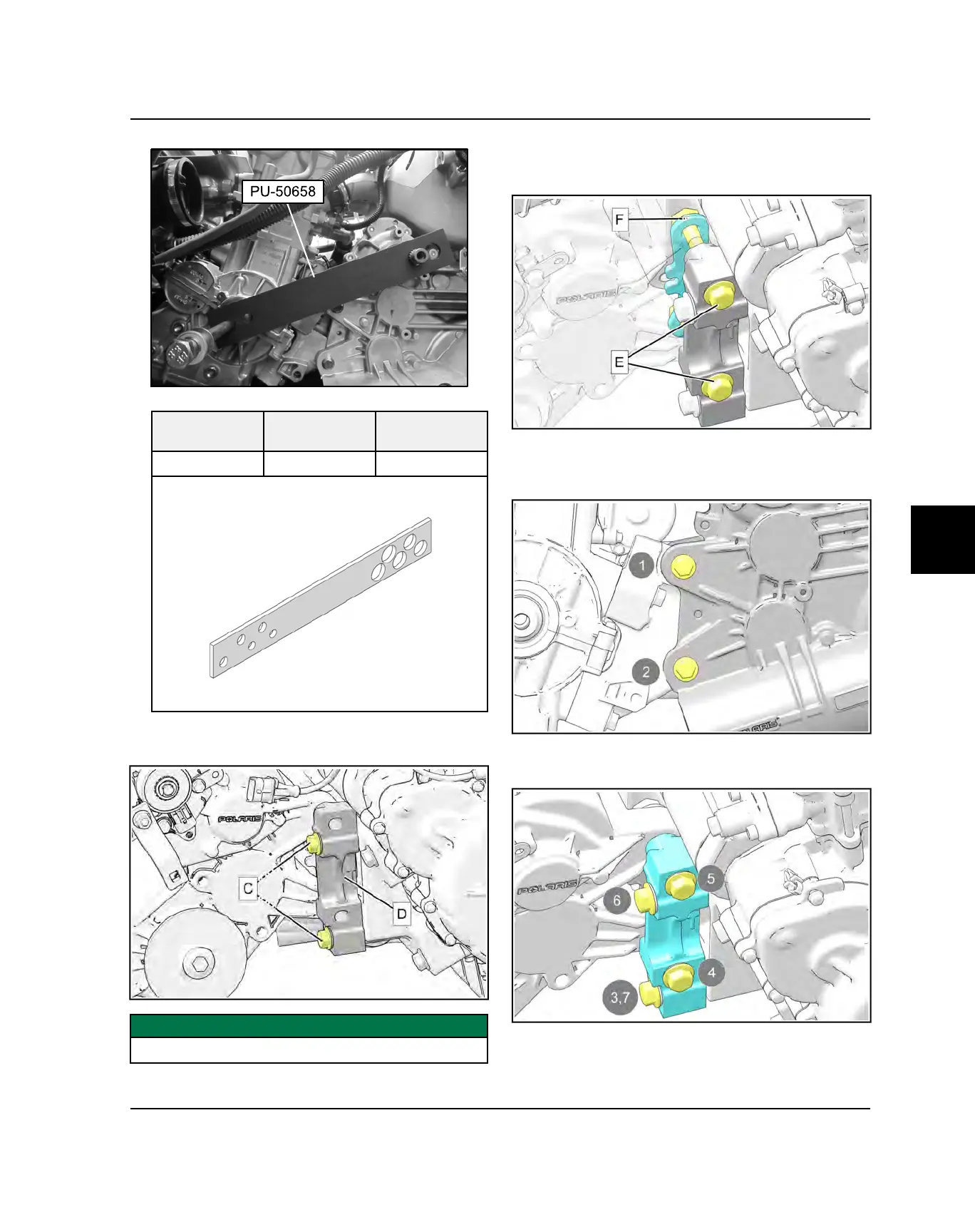

6. Install the two bolts (C) retaining the transmission
coupler bracket (D) to the engine on the right side.
IMPORTANT
DO NOT torque fasteners at this time.
7. Install the two bolts (E) and transmission joint retainer
plate (F) on the right side. Hand tighten the bolts so
they remain loose at this time.
8. Install the two longer bolts into left side mounting
holes. Torque left side mounting bolts to specification
using the numbered sequence shown.
9. Torque right side mounting bolts to specification using
the numbered sequence shown.
TRANSMISSION
