6.36
9929375 R02 - 2016-2019 GENERAL / GENERAL 4 Service Manual
© Copyright Polaris Industries Inc.

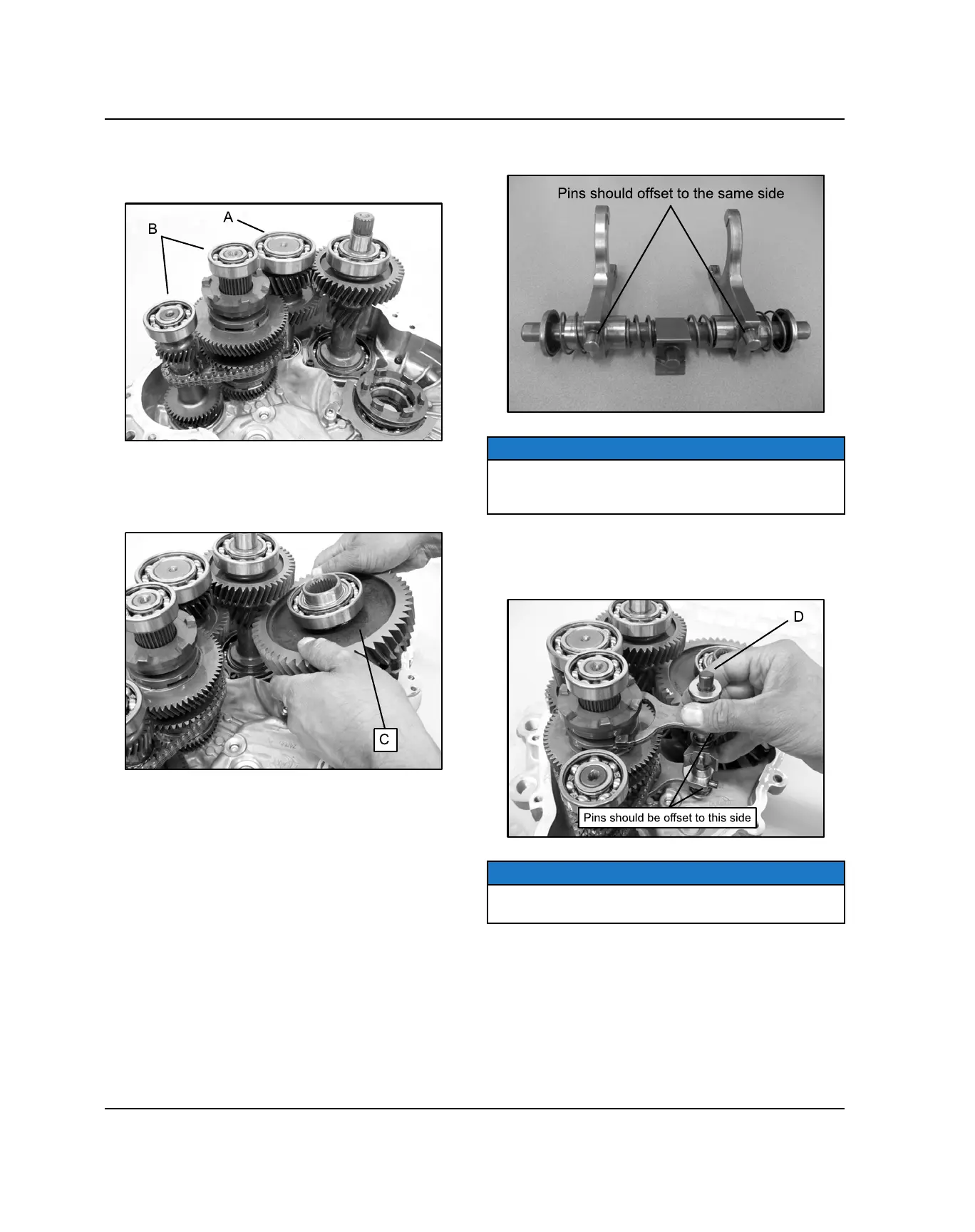

6. Install the idler gear shaft assembly (A) and gear
cluster assembly (B) into the transmission housing,
all at the same time.
7. Install the rear output shaft assembly (C). Rotate
output shaft assembly to align slots with engagement
dog. Ensure bearing is fully seated upon assembly.
8. Assemble shift shaft rail if previously disassembled.
NOTICE
Both shift forks need to be orientated the same way, so
that the shift fork pins are both offset to the same side
of the rail.
9. Install the shift shaft rail (D) and shift forks into the
transmission housing as an assembly. Be sure the
shift forks are engaged into the engagement dogs.
NOTICE
Shift fork pins should be offset towards the input shaft
as shown above.
TRANSMISSION
