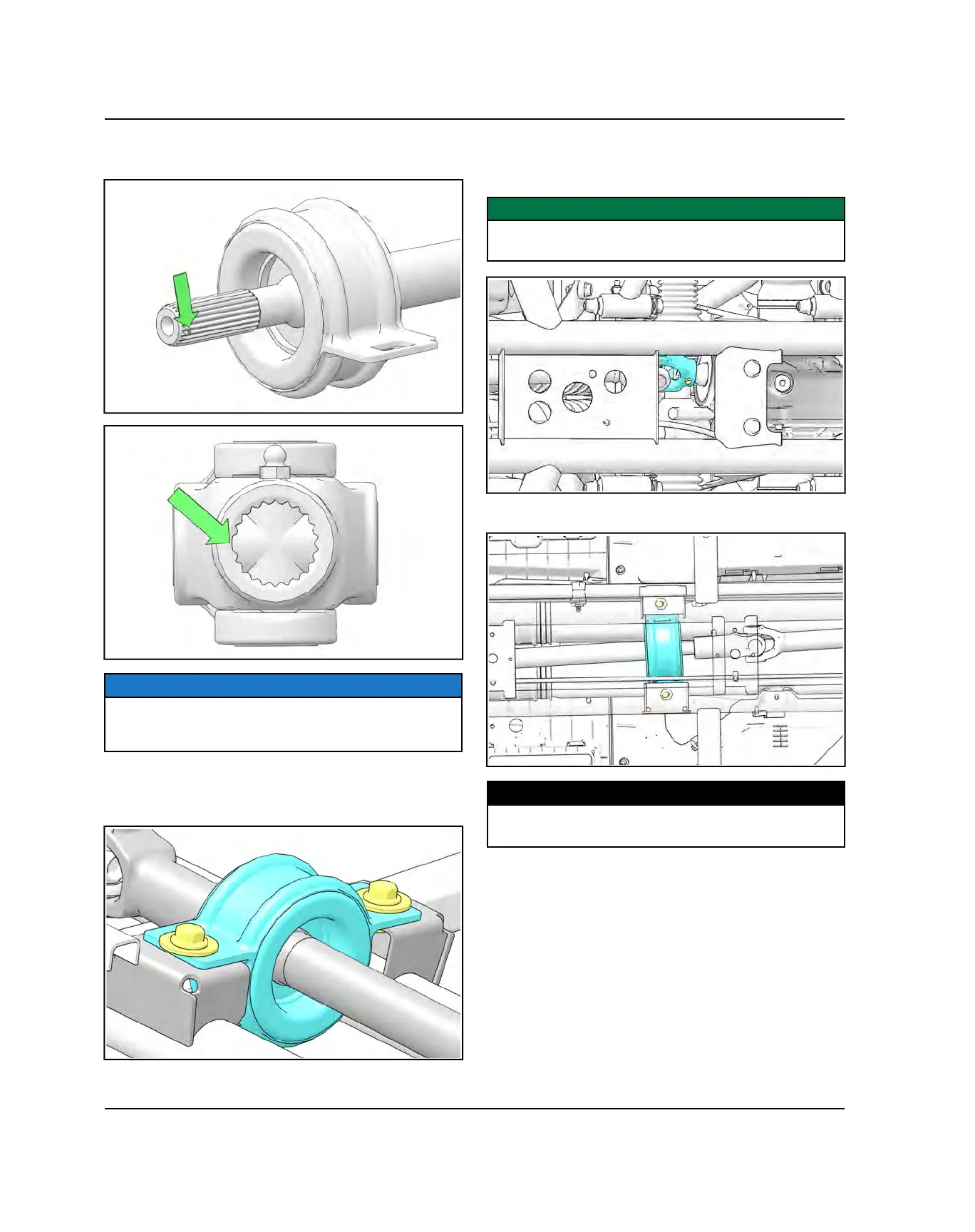

6. Install the front propshaft and align with the alignment
mark on the rear propshaft.
NOTICE
Paint marks are applied to the front and rear prop shafts
to aid shaft alignment. Reference these marks during
installation if still visible.
7. Ensure proper orientation of the support bearing
assembly. The shallow ridge of the bearing should be
facing upwards.
8. Align the front prop shaft paint mark with the front
gearcase input shaft mark so the pin holes align.
Install a new roll pin.
IMPORTANT
Always use a new roll pin when installing the front
propshaft onto the gearcase. Do not reuse roll pins.
9. Torque the support bearing fasteners to specification.
TORQUE
Support Bearing Fasteners:
33 lb-ft (45 Nm)
10.Install the skid plates on the vehicle. Refer to “Skid
Plate Replacement”page 10.73 procedure.
