7
9929375 R02 - 2016-2019 GENERAL / GENERAL 4 Service Manual
© Copyright Polaris Industries Inc.
7.27

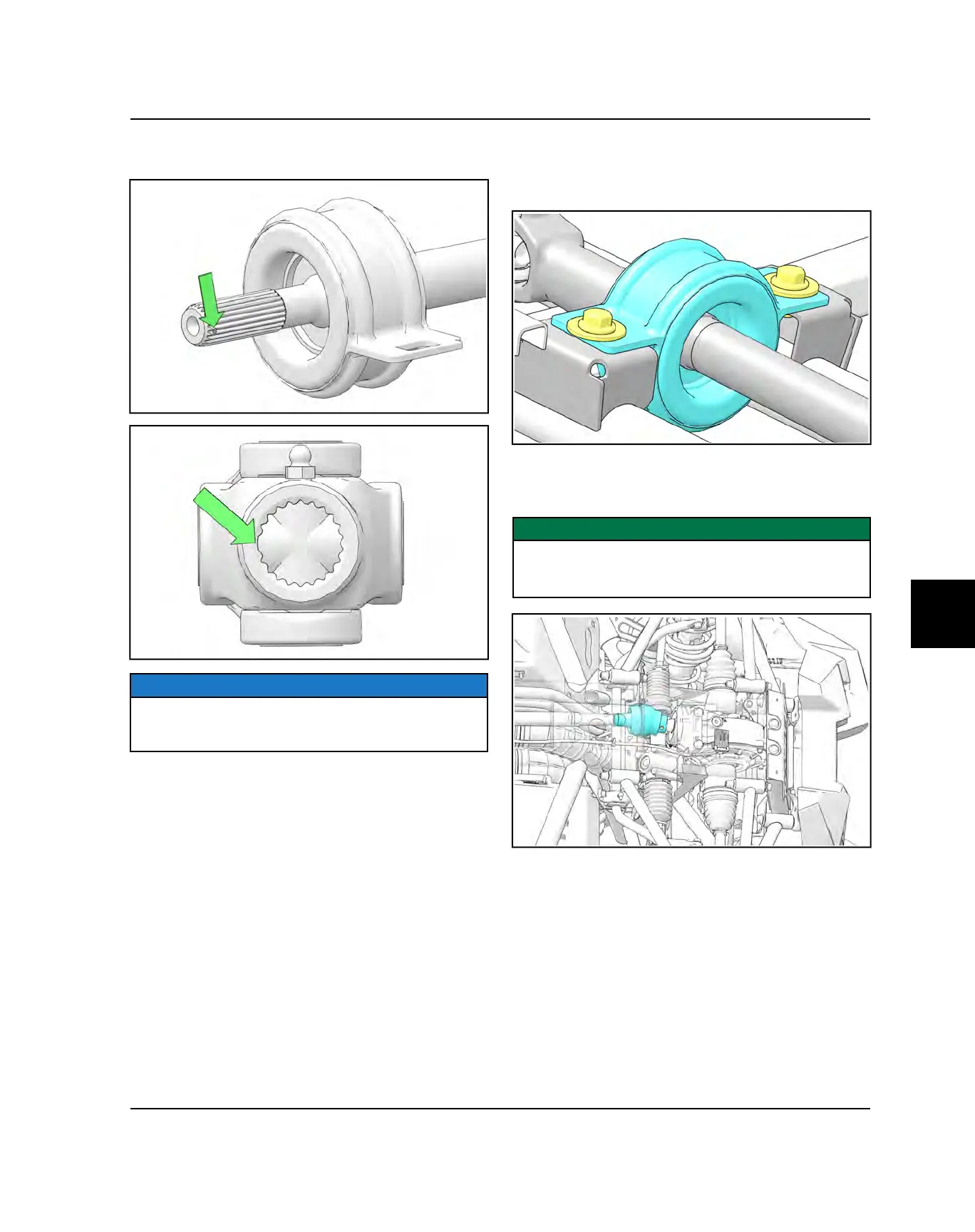

6. Install the center propshaft and align with alignment
marks on rear propshaft.
NOTICE
Paint marks are applied to the front and rear prop shafts
to aid shaft alignment. Reference these marks during
installation if still visible.
7. Mark the front propshaft alignment mark if necessary
as shown above. Install the front propshaft in the
vehicle, and align with the alignment mark on the
center propshaft.
8. Ensure proper orientation of support bearing
assemblies for rear and center propshafts. The
shallow ridge of the bearings should be facing
upwards.
9. Align the front propshaft paint mark with the front
gearcase input shaft mark so the pin holes align.
Install a new roll pin.
IMPORTANT
Always use a new roll pin when installing the front
propshaft onto the front gearcase. Do not reuse roll
pins.
FINAL DRIVE
