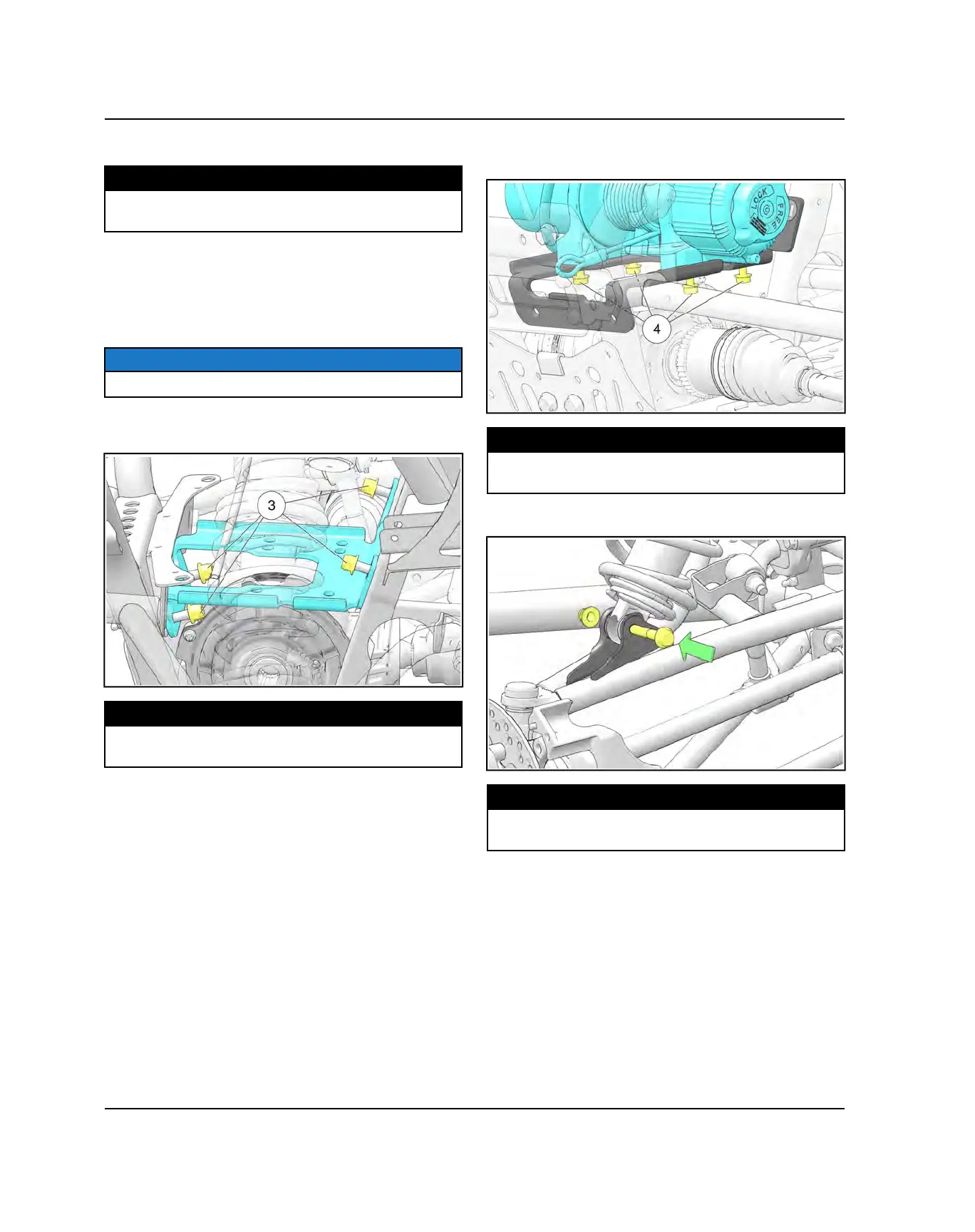

8. Install skid plate and fasteners.
TORQUE
Skid Plate:
3.5 lb-ft (4.7 Nm)
9. Install both front drive shafts into the gearcase. Refer
to “Front Drive Shaft Installation”page
10.Add the proper lubricant to the front gearcase. Refer
to “Front Gearcase Lubrication”page 2.30
procedure.
NOTICE
Reinstall winch if equipped.
11. Install winch mounting plate and secure with four
15mm nuts
e
.
TORQUE
Winch Mounting Plate:
30 lb-ft (41 Nm)
12.Install winch from passenger side.
13.Install four fasteners
r
securing winch to mounting
plate.
TORQUE
Winch Fasteners:
16 lb-ft (22 Nm)
14.Reinstall lower fastener on passenger front shock.
TORQUE
Shock Fastener:
20 lb-ft (27 Nm) + 90°
15.Reconnect contactor connector.
16.Reconnect electrical wires from bus bar.
17.Reconnect battery.
