Polaris GENERAL 2016 - Page 517

10
9929375 R02 - 2016-2019 GENERAL / GENERAL 4 Service Manual
© Copyright Polaris Industries Inc.
10.39

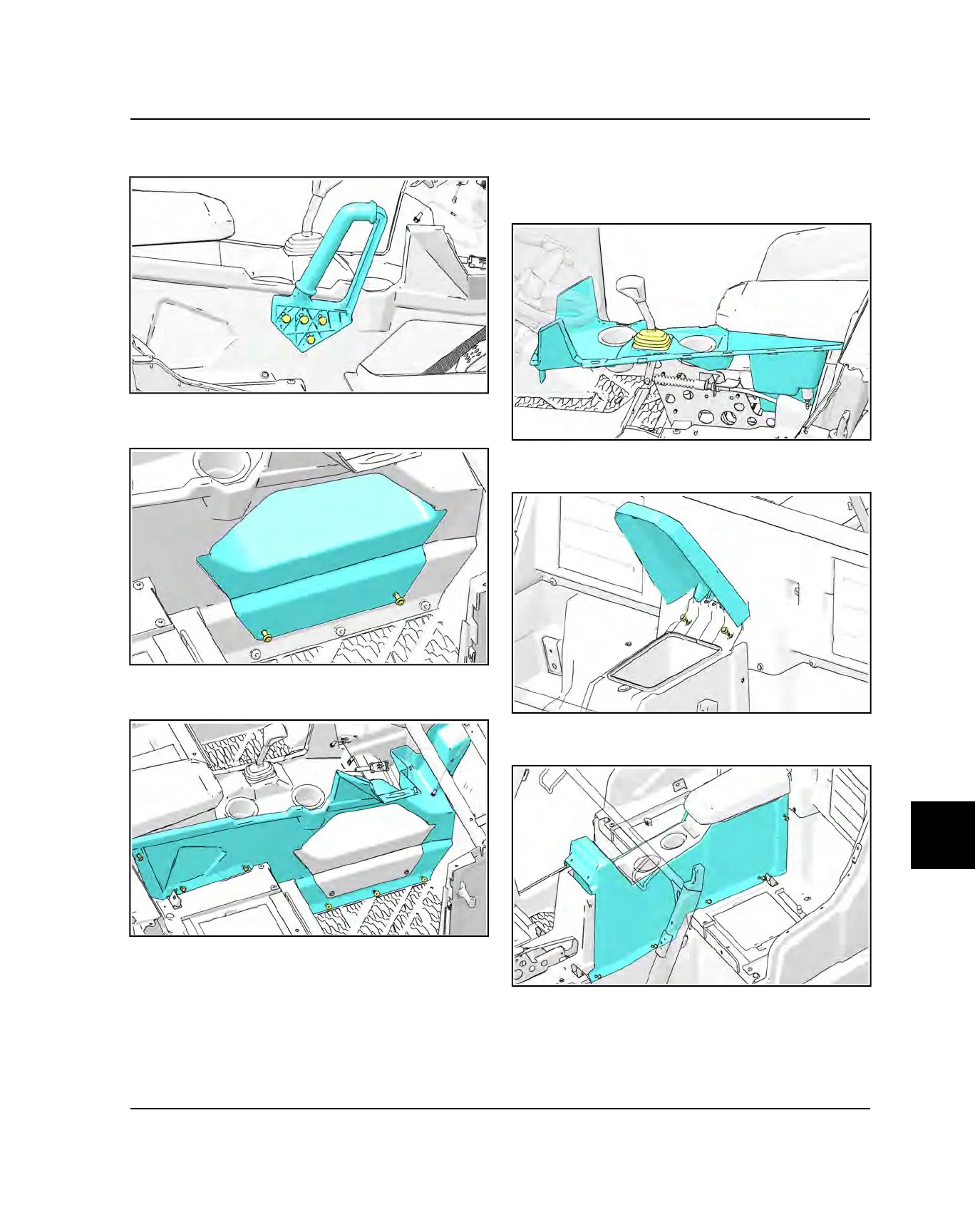

6. Remove the fasteners holding the passenger grab
handle to the vehicle.
7. Remove the fasteners holding the center tunnel
access cover to the center console panels.
8. Remove the fasteners holding the RH and LH center
console panels to the vehicle.
9. Remove the shift boot from the center console top
and remove the remaining fasteners holding center
console top to the vehicle. Disconnect the 12 V power
connectors and remove the center console top from
the vehicle.
10.Remove the fasteners holding the rear center console
cover to the vehicle.
11. Remove the fasteners holding the rear center console
to the vehicle.
12.Disconnect the accessory power outlet and remove
the rear center console and top from the vehicle.
BODY / FRAME
