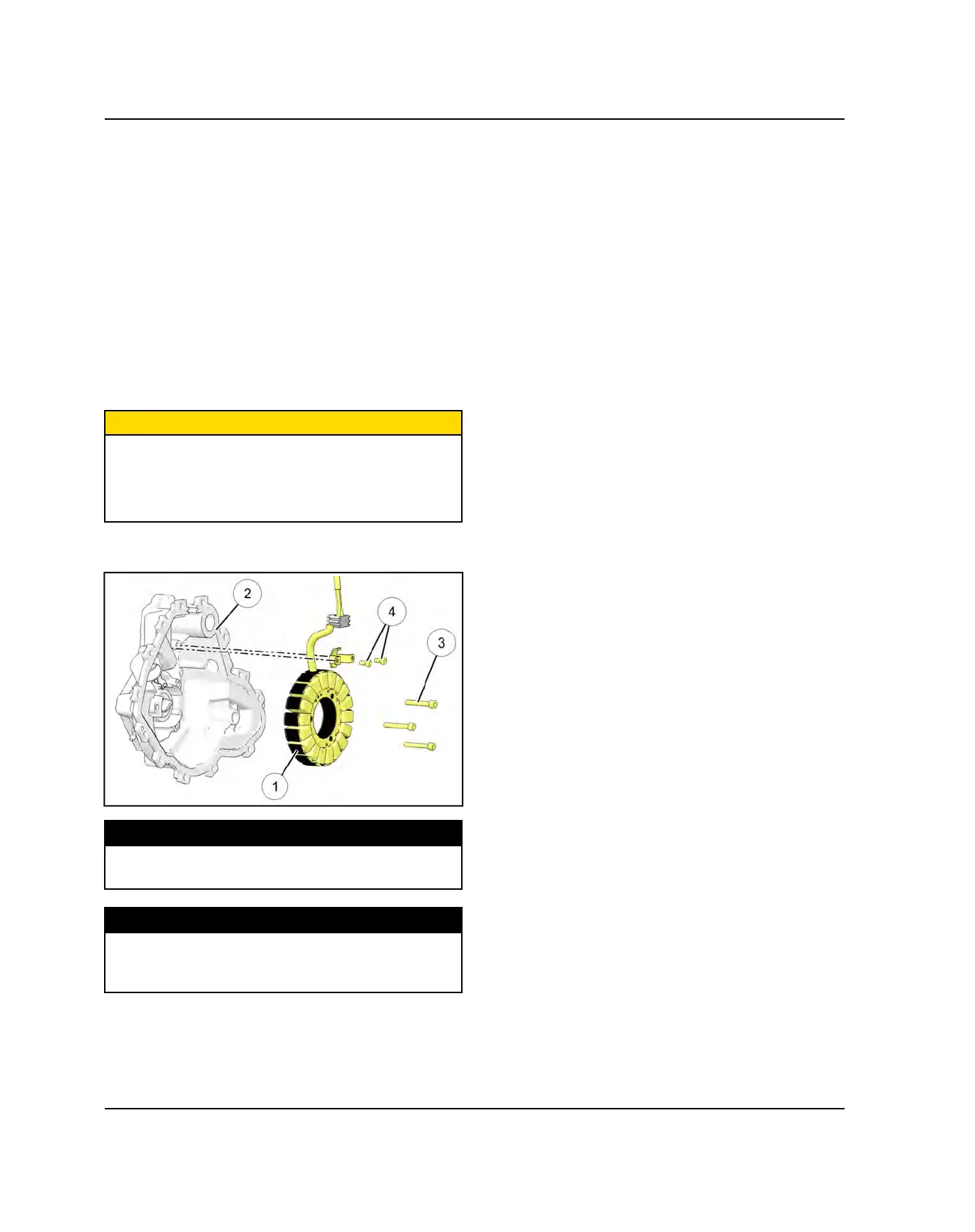

STATOR / STATOR COVER INSTALLATION
1. Clean and degrease stator screws and threads in the
stator housing.
2. Clean mounting surfaces of stator
q
and housing
w
.
3. Apply crankcase sealant to edges of rubber stator
grommet.
4. Set the stator in housing and press wire grommet
into slot on housing.
5. Apply Loctite® 242™ to end (8-10 threads) of the
stator screws
e
and the wire routing bracket screws
r
.
6. Install a new stator cover gasket.
7. Install the stator cover.
CAUTION
The flywheel contains powerful magnets. Use caution
when installing the stator cover.
DO NOT place fingers between cover and crankcase at
any time during the installation process or injury could
result.
8. Install the stator cover screws and torque to
specification.
TORQUE
Stator Mounting Bolts:
9 ft-lbs (12 Nm)Apply Loctite® 242™
TORQUE
Stator Wire Retainer:
6 ft-lbs (9 Nm)
Apply Loctite® 242™
