3.4
9926813 R04 - 2013-2016 RZR 570 Service Manual
© Copyright Polaris Industries Inc.
GENERAL INFORMATION
SPECIAL TOOLS
PART
NUMBER
TOOL DESCRIPTION
PW-47053
Bench Mount Engine Stand Adapter
PU-50658 Clutch Center Distance Tool
PU-50784
Crankshaft Removal / Installation
Tool Kit
PU-50563
Cylinder Holding & Camshaft Timing
Plate
PU-50624
Engine Stand (2” Bore)
PU-50824
Engine Stand Adapter (Mounts To
The Engine)
PU-50625
Engine Stand Sleeve Adapter (Use
With 2” Bore Stand)
PW-47054
Engine Stand Sleeve Adapter (Use
With 2.375” Bore Stand)
PA-49316
Flywheel Puller
PU-50105 Oil Filter Wrench
PV-43531
Oil Pressure Gauge
PU-50569
Oil Pressure Gauge Adapter
PA-49317 Stator Cover Removal Handles
PV-1253
Valve Spring Compressor
PV-43513-A
Valve Spring Compressor Adapter
PU-50689
Water Pump Mechanical / Oil Seal
Installation Kit
Bosch Automotive Service Solutions : 1-800-328-
6657 or http://polaris.service-solutions.com/
ENGINE LUBRICATION SPECIFICATIONS
FLUID CAPACITY
Oil Capacity: 2 Quarts (1.9 L)
Oil Filter Wrench: PU-50105 or 2.5″ (64 mm)
Oil Type: Polaris PS-4 Synthetic Engine Oil
Oil Pressure:
(using Polaris PS-4 at operating temperature)
10 PSI @ 1200 RPM (Minimum)
40 PSI @ 7000 RPM (Minimum)
OIL PRESSURE TEST
1. Attach the Oil Pressure Gauge Adapter to the Oil
Pressure Gauge.
Oil Pressure Gauge Adapter: PU-50569
Oil Pressure Gauge: PV-43531
2. Remove the seats and engine service panel.

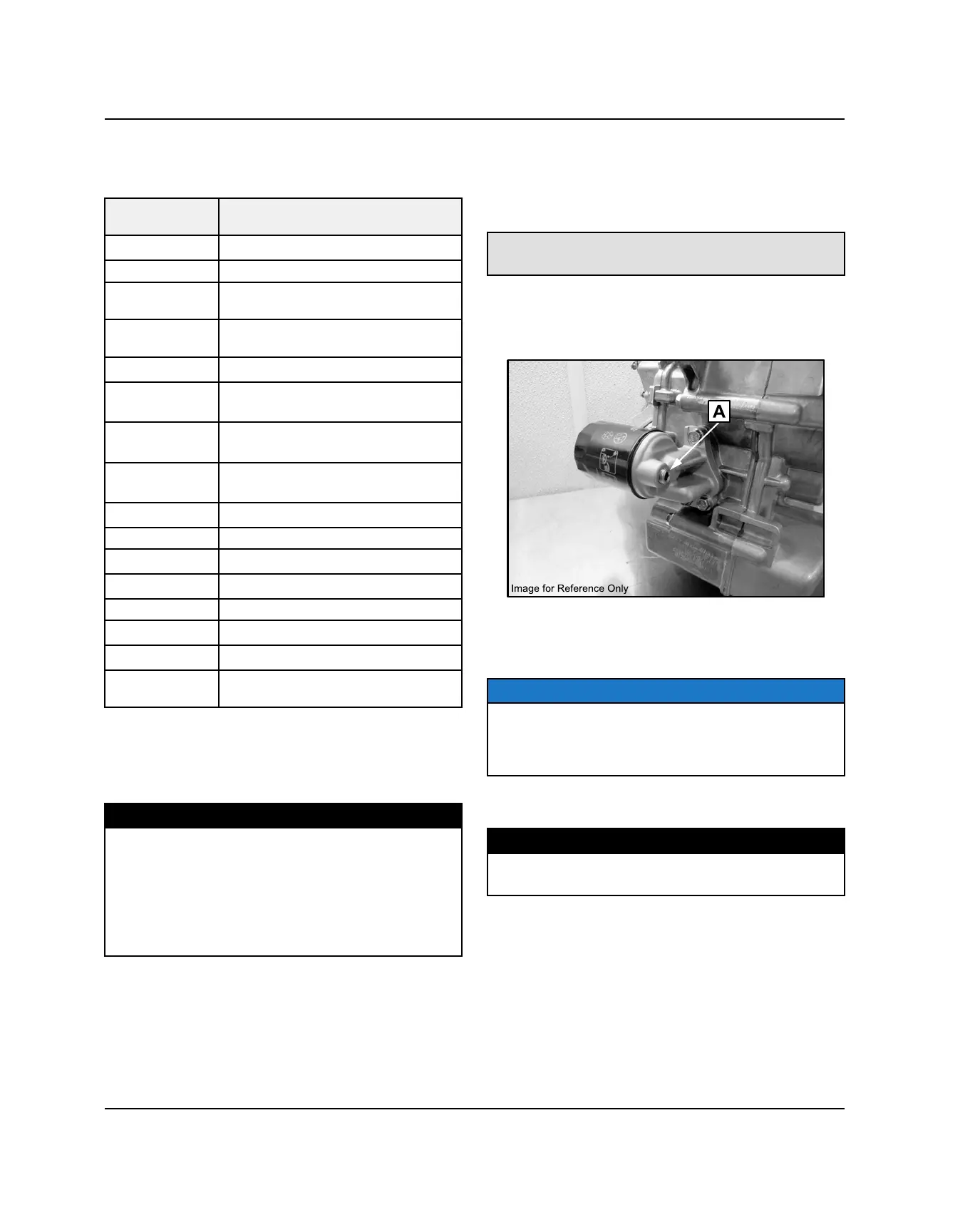

3. Clean the area around the main oil gallery plug (A),
located on the oil filter adapter housing.
4. Remove the plug and insert the oil pressure adapter.
5. Start engine and allow it to reach operating
temperature, monitoring gauge indication.
NOTE
Test results are based on the use of the recommended
engine oil (Polaris PS-4) at operating temperature, and
may vary considerably if any other oil is used or if
engine is not up to temperature.
6. Upon assembly, torque the crankcase gallery plug to
specification.
TORQUE
Oil Gallery Plug:
12 ft-lbs (16 Nm)
ENGINE / COOLING SYSTEM
