BRAKE LIGHT SWITCH

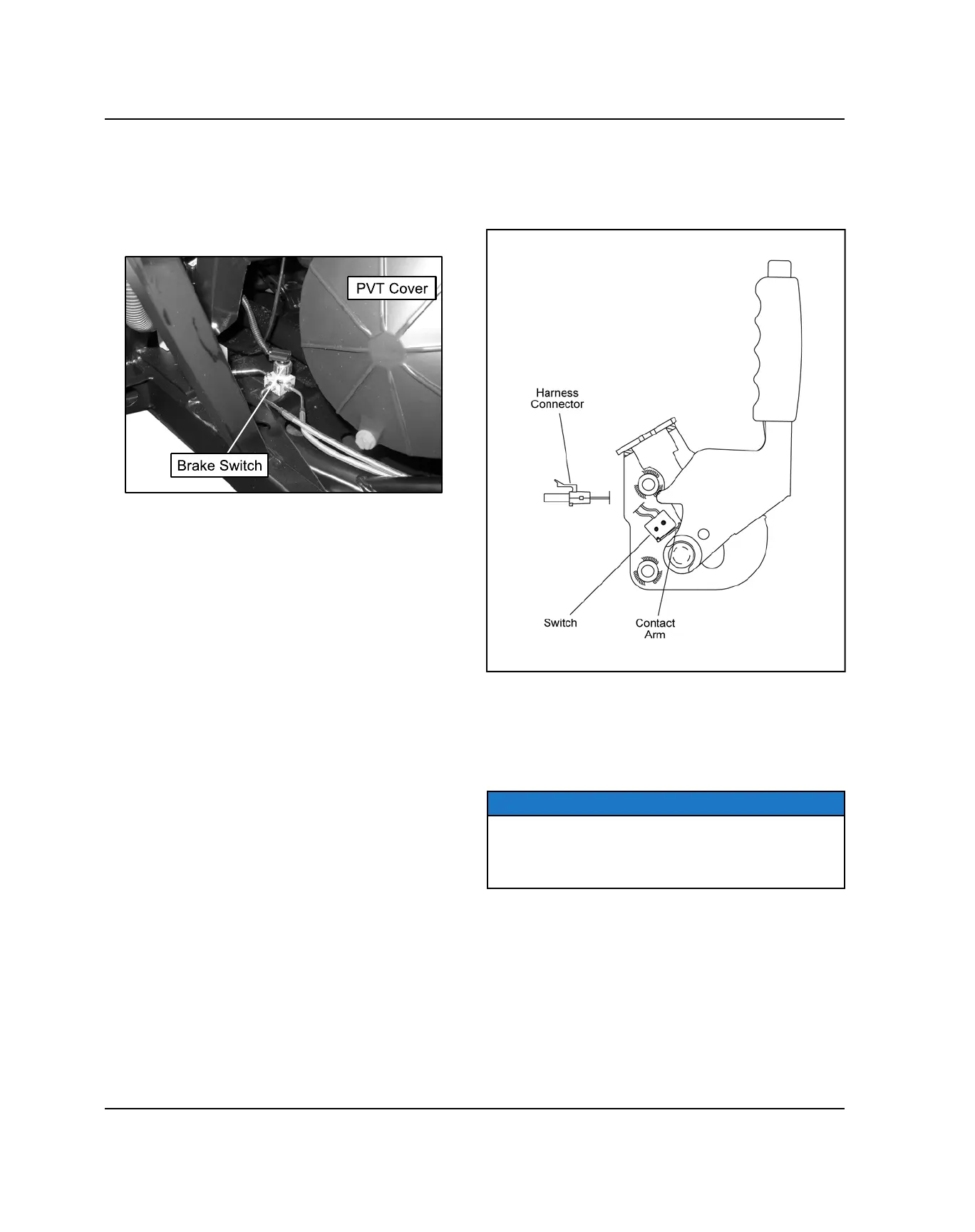

1. The brake switch can be accessed through the LH
rear wheel well area. The switch is located near the
outer PVT cover along the lower frame. The brake
pressure switch is installed into the cross fitting
block.
2. Disconnect wire harness from switch and connect an
ohmmeter across switch contacts. The reading
should be infinite (OL).
3. Apply the brake and check for continuity. If there is
no continuity or if resistance is greater than 0.5
ohms, clean the switch terminals. Re-test and
replace switch if necessary.
PARKING BRAKE SWITCH (INTL MODEL)
The parking brake switch is located within the parking
brake lever. Remove the rubber boot covering the
parking brake lever to locate the internally mounted
switch.
The switch remains in the “open” position when the park
brake lever is not applied.
When the parking brake lever is applied, the switch
makes contact and sends voltage to the ECU to
illuminate “BRAKE” in the instrument cluster rider
information display area (see “Park Brake Indicator”).
NOTE
If the parking brake is applied the ECU will rev limit the
engine at 1500 RPM until the parking brake is released.
This feature has been added to prevent drive-away with
the parking brake applied.
Testing The Parking Brake Switch
1. Disconnect the harness connector at the parking
brake switch (Orange/Red and Red/Blue wires).
