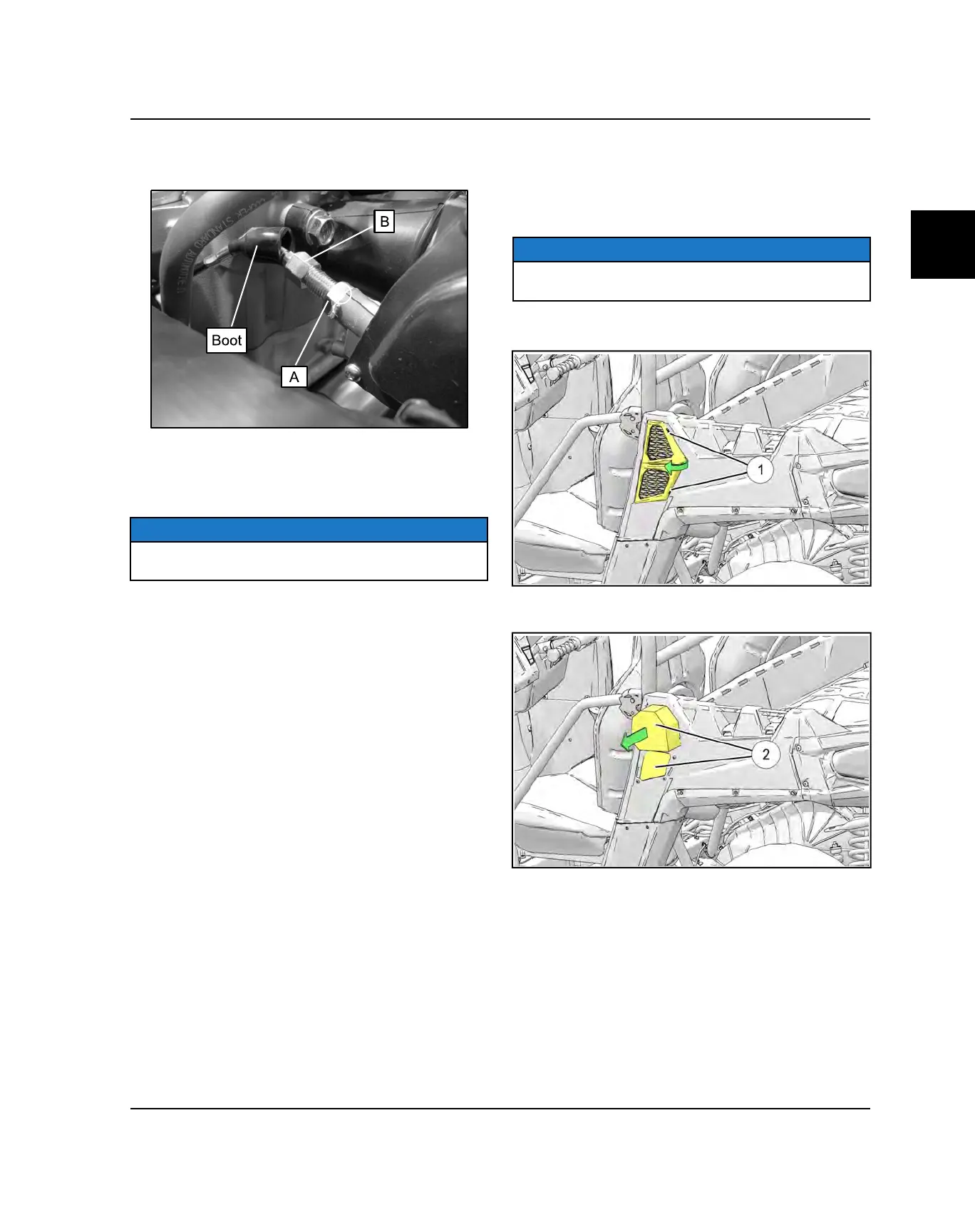

5. Locate throttle cable on the left-hand side of the
throttle body. Slide back the cable adjuster boot.
6. Using an open-end wrench, loosen the adjustment
jam nut (A) . Using another open-end wrench, move
the cable adjuster (B) until 1/16 to 1/8″ (1.5 - 3 mm)
of free play is achieved at the throttle pedal.
NOTE
While adjusting, lightly move the throttle pedal in and
out.
7. Re-tighten the jam nut after final adjustment is made.
8. Apply a small amount of grease to the inside of the
boot
u
and slide it over the cable adjuster to its
original position.
9. Reinstall the cargo box access panel.
ENGINE AND PVT INTAKE PRE-FILTER
SERVICE
It is recommended that the engine and PVT intake pre-
filter be inspected daily. The filter should be inspected
using the following procedure:
NOTE
The engine and PVT intake pre-filter is located just
above the left-rear wheel fender.
1. Press “IN” on the intake grill cover tabs
q
and
remove the pre-filter cover.
2. Remove and inspect the pre-filters
w
. If necessary,
clean with soapy water and dry with compressed air.
3. Reinstall the dry pre-filters and install the pre-filter
cover.
