GEARCASE DISASSEMBLY / INSPECTION

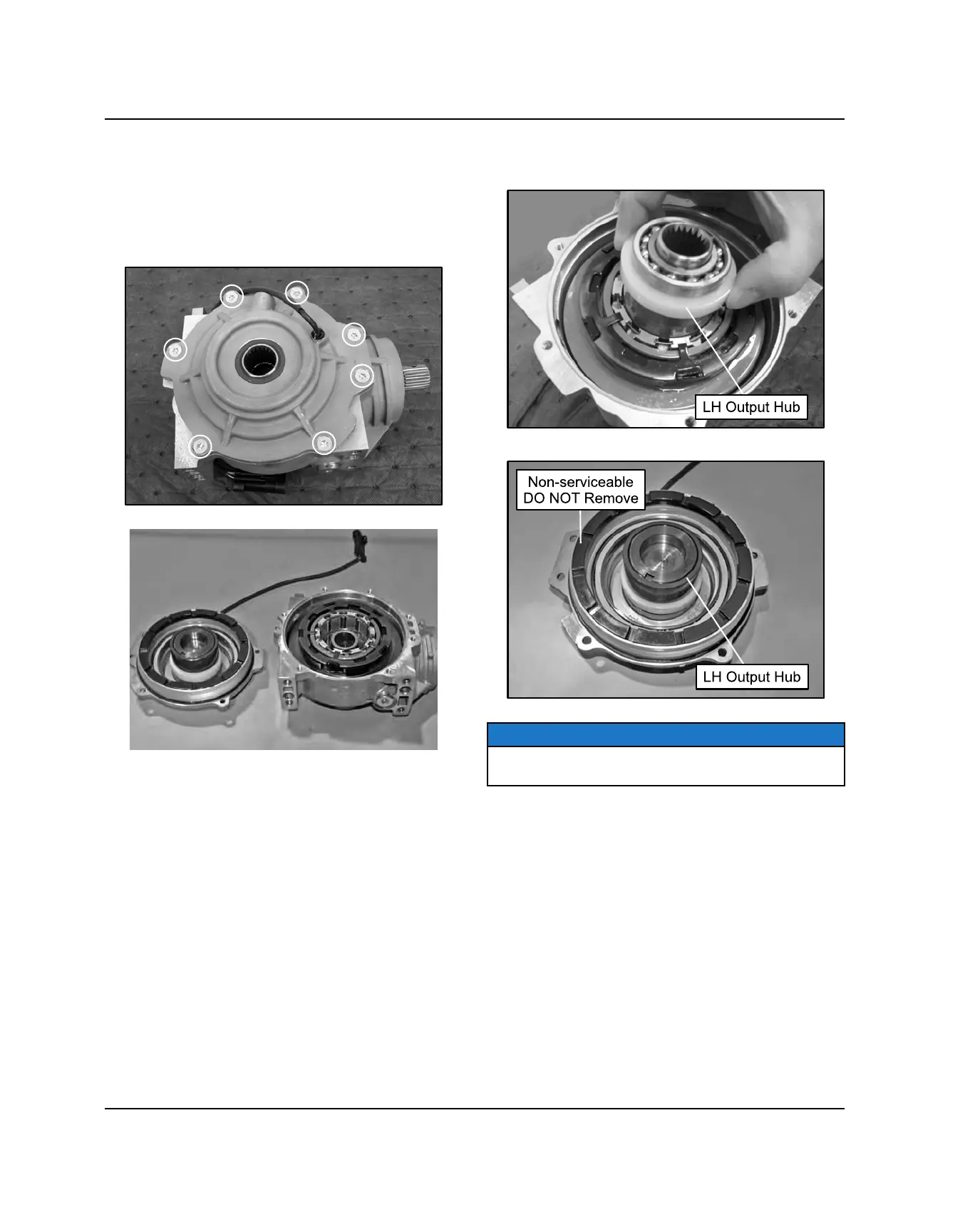

1. Drain and properly dispose of gearcase fluid.
Remove any metal particles from the drain plug
magnet.
2. Remove the seven cover screws and remove the
cover plate assembly.
3. Remove the LH output hub assembly from the clutch
housing or outer cover plate assembly.
NOTE
Nylon spacer is non-serviceable and should not be
removed.
