3.20
9926813 R04 - 2013-2016 RZR 570 Service Manual
© Copyright Polaris Industries Inc.

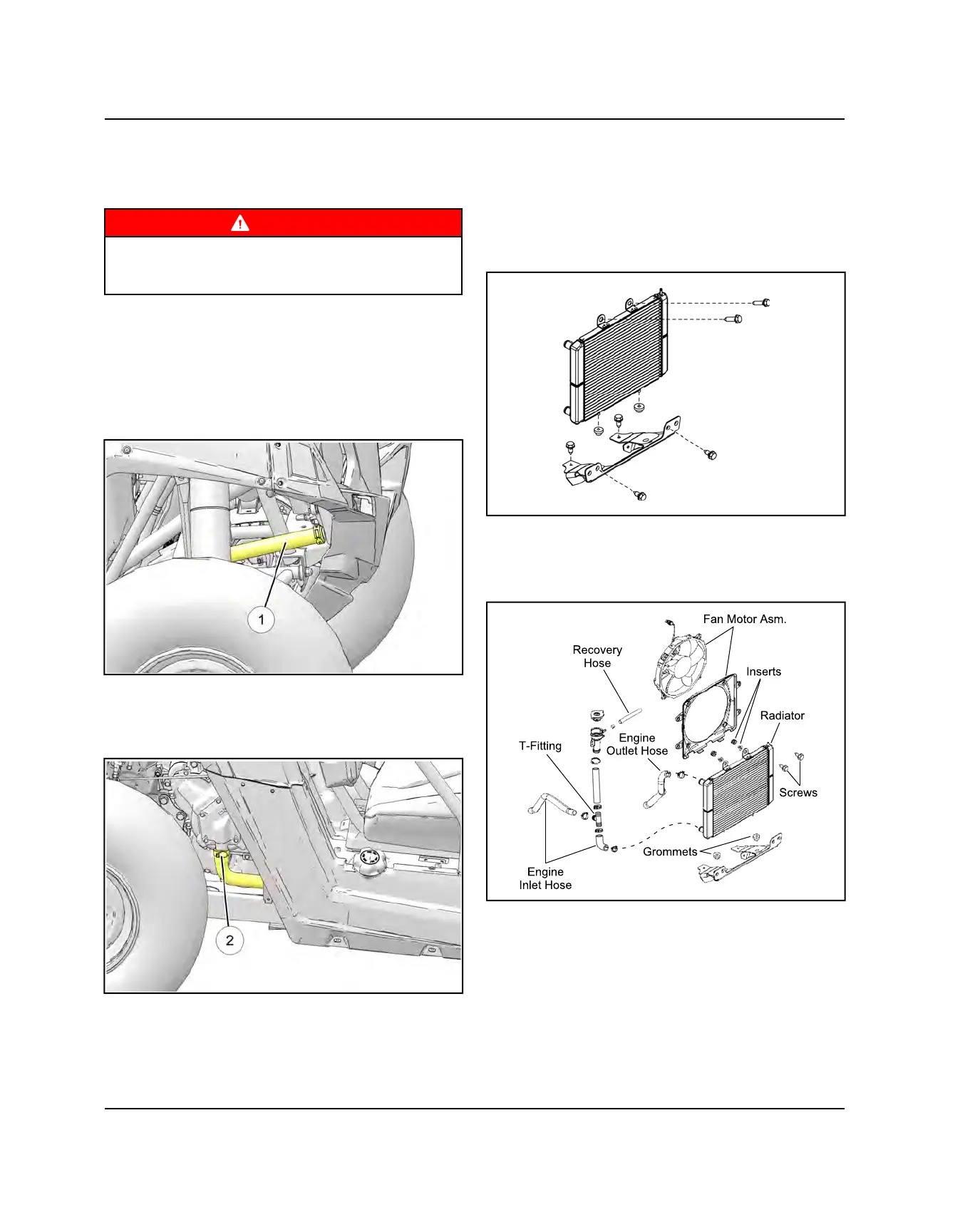

COOLANT DRAIN / RADIATOR REMOVAL
Coolant Drain
1. Remove the hood from the front cab.
WARNING
Never drain the coolant when the engine and radiator
are warm or hot. Hot coolant can cause severe burns.
Allow engine and radiator to cool.
2. Slowly remove the pressure cap to relieve any
cooling system pressure.
3. Place a suitable drain pan underneath the radiator
fitting on the front right-hand side of the vehicle.
4. Drain the coolant from the radiator by removing the
lower coolant hose
q
from the radiator as shown.
Properly dispose of the coolant.
5. Allow coolant to completely drain.
6. Place a suitable drain pan underneath the lower
engine hose
w
on the right-hand rear side of the
vehicle.
7. Remove the hose and completely drain the engine.
Radiator Removal
8. Remove the front bumper (see Chapter 10 – Front
Bumper, page 10.14).
9. Remove the upper engine outlet hose and recovery
hose from the top of the radiator.
10. Remove the two upper radiator retaining bolts and
the four bolts retaining the lower radiator mount
bracket. Remove the bracket from the frame.
11. Disconnect the fan motor and remove the radiator
from the vehicle. Take care not to damage the
cooling fins.
12. Reverse procedure for installation.
ENGINE / COOLING SYSTEM
