7.24
9926813 R04 - 2013-2016 RZR 570 Service Manual
© Copyright Polaris Industries Inc.
16. Reverse removal steps to reinstall propshaft. Use a
NEW Roll Pin (Spring Pin) upon reassembly. Torque
all fasteners to specification.
TORQUE
Wheel Nuts:
Steel Rims: 27 ft-lbs (37 Nm)
Aluminum Rims: 30 ft-lbs (41 Nm) + 90°
Drive Clutch Retaining Bolt:
47 ft-lbs (64 Nm)
Outer Clutch Cover Screws:
100 in-lbs (12 Nm)
Brake Line Junction Block Mounting Screws:
36 in-lbs (4 Nm)

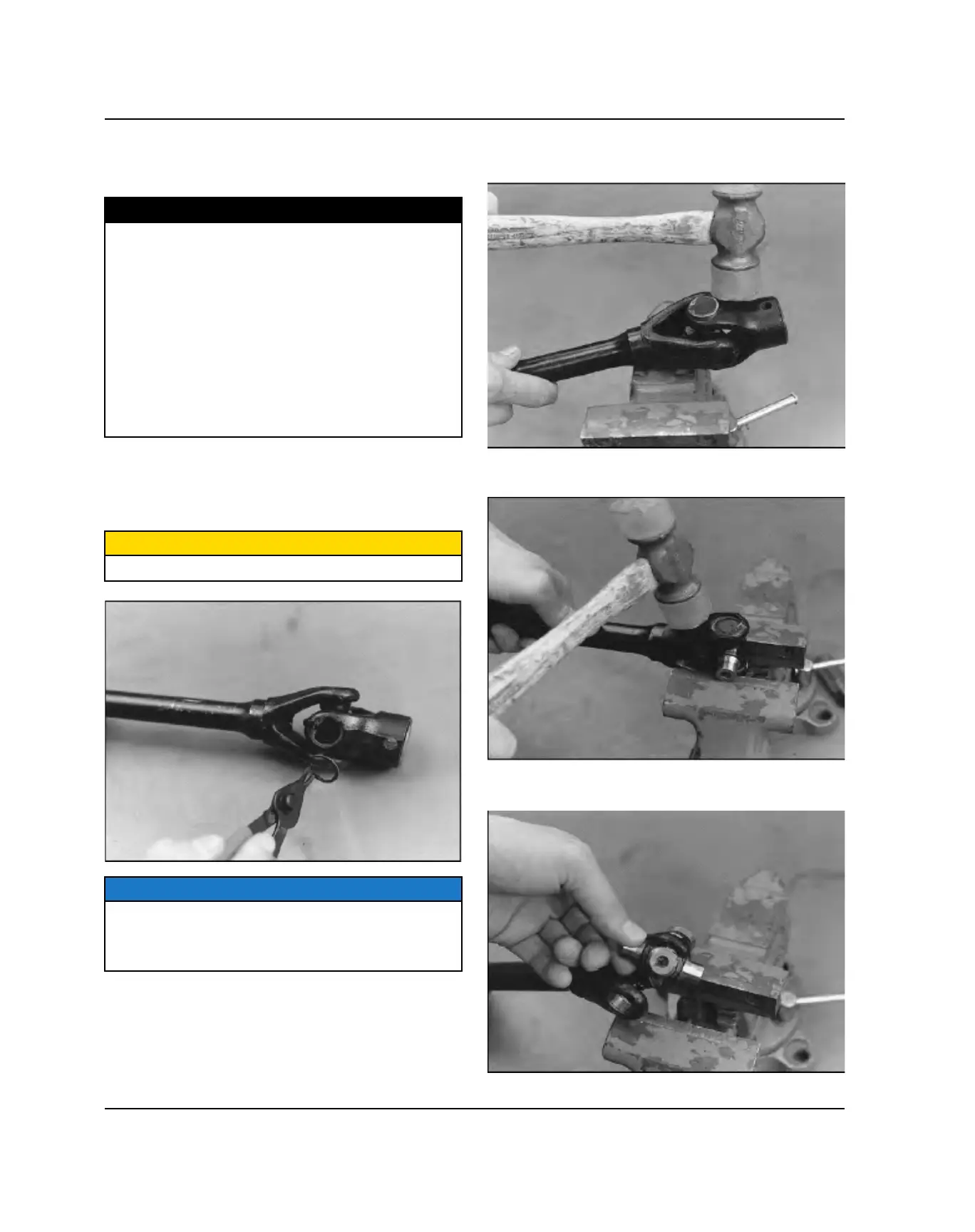

DISASSEMBLY
1. Remove internal or external snap ring from bearing
caps.
CAUTION
Always wear eye protection.
NOTE
If yoke or bearing is removed, cross bearing must be
replaced. Note orientation of grease fitting and mark
inner and outer yoke for correct re-positioning during
installation.
2. Support inner yoke as shown and drive outer yoke
down (bearing cap out) with a soft face hammer.
3. Support U-joint in vise as shown and drive inner yoke
down to remove remaining bearing caps.
4. Force U-joint cross to one side and lift out of inner
yoke.
FINAL DRIVE
