11.38
9926813 R04 - 2013-2016 RZR 570 Service Manual
© Copyright Polaris Industries Inc.
STARTER MOTOR REMOVAL
1. Remove the driver’s side seat and disconnect the
battery.
2. Raise and support rear of vehicle. Remove the right-
hand rear wheel if necessary.

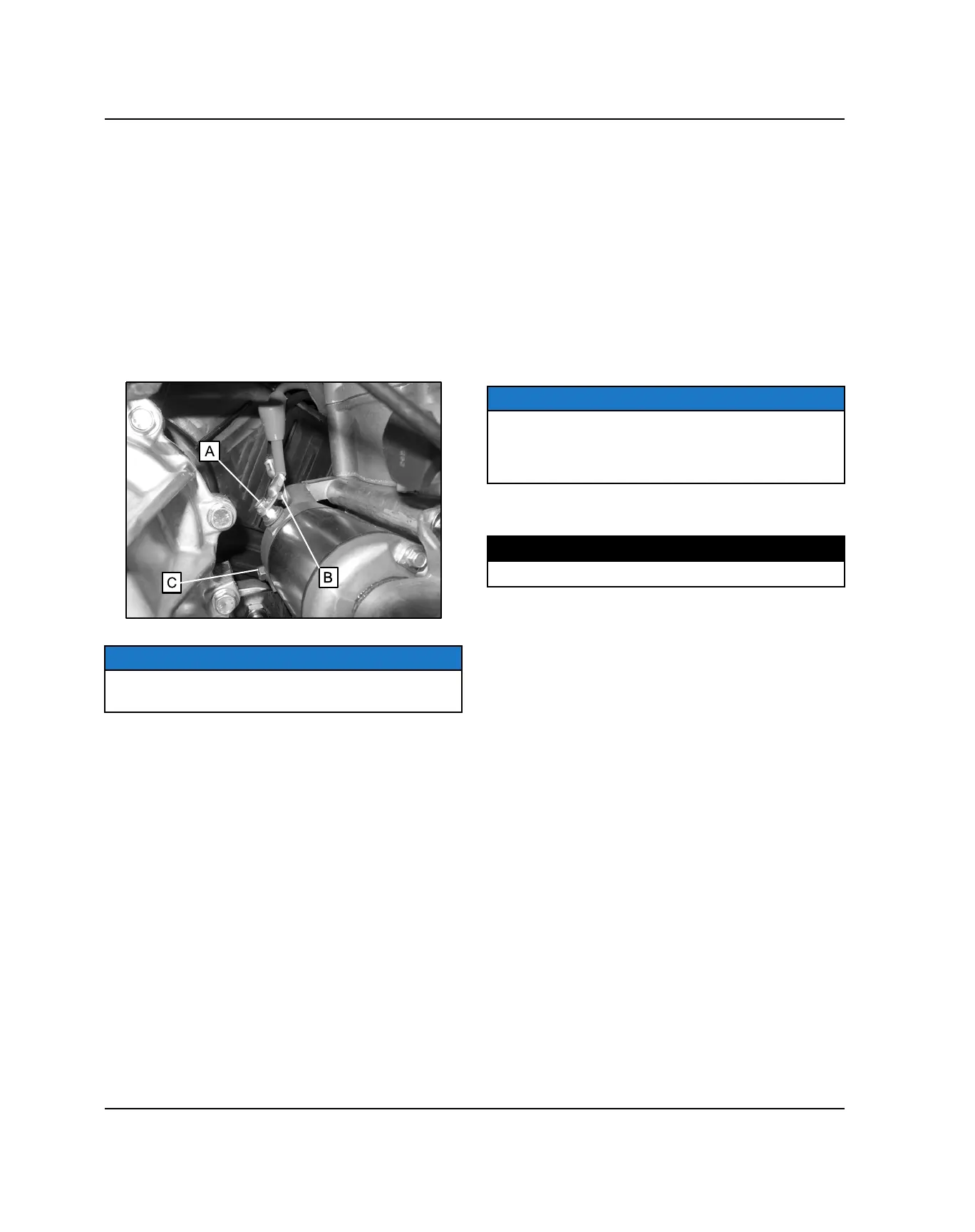

3. Remove the (+) positive wire (A) from the starter
motor terminal.
4. From the right-hand side wheel well, remove the
upper starter motor fastener (B) securing the starter
motor and (-) negative battery cable to the engine.
Completely loosen the lower starter motor fastener
(C).
NOTE
The (-) negative battery cable is mounted to the engine
using the upper starter mounting bolt.
5. Remove the starter from the engine.
STARTER MOTOR INSTALLATION
1. Inspect and replace starter motor O-ring if needed.
2. Lubricate the starter motor O-ring with fresh engine
oil.
3. Place the lower starter motor fastener (C) through
the lower mounting boss in the starter motor.
4. Install the starter motor onto the engine case.
5. Install the (-) negative battery cable in the upper
starter bolt and hand tighten the upper starter
mounting bolt (B).
6. Install and torque the lower mounting bolt (C) to
specification.
NOTE
Tighten the lower starter bolt first, as the bottom hole
acts as a pilot hole to properly align the starter drive
(bendix) with the flywheel. This helps prevent binding
and starter damage.
7. Torque the upper starter mounting bolt (B) to
specification.
TORQUE
Starter Mounting Bolts and Nut:7 ft. lbs. (10 Nm)
8. If removed, install the right-hand rear wheel and
torque wheel nuts to specification (see chapter 2 –
Wheel Installation, page 2.23).
9. Lower vehicle.
10. Connect the (-) negative battery cable and install the
driver’s side seat.
ELECTRICAL
