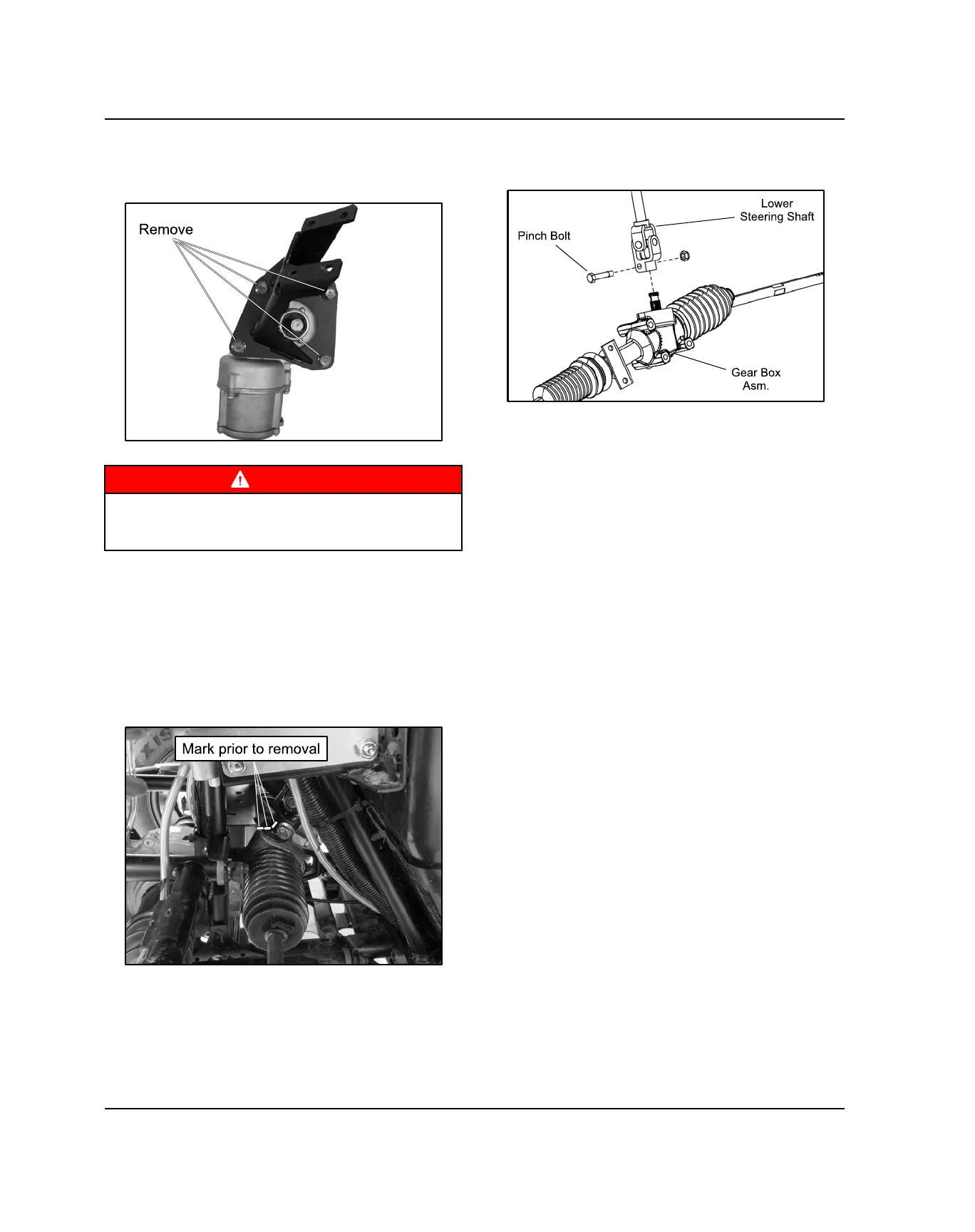

6. If replacing the power steering unit, remove the four
bolts that retain the power steering unit to the mount
bracket.
WARNING
Electronic Power Steering (EPS) units are programmed
to be vehicle specific and are not interchangeable
between product lines.
LOWER STEERING SHAFT REMOVAL (EPS
MODELS)
1. Use the steering wheel to position the front wheels
so they point straight ahead.
2. Locate the lower steering shaft through the left front
wheel well. Mark the lower steering shaft, gear box
stub shaft and gear box to aid installation.
3. Remove the power steering unit (see Chapter 5 –
Power Steering Unit Removal, page 8.9 procedure).
4. Remove the pinch bolt retaining the lower steering
shaft to the steering gear box assembly.
5. Lift up on the shaft and remove it through the floor
panel.
LOWER STEERING SHAFT INSTALLATION
(EPS MODELS)
1. Install the lower steering shaft onto the gear box and
align the marks made during step 2 of the Lower
Steering Shaft Removal (EPS Models), page 8.10
procedure.
2. Install the pinch bolt that retains the lower steering
shaft to the gear box assembly and torque to 30 ft.
lbs. (41 Nm).
3. Install the power steering unit and reassemble the
vehicle (see Chapter 5 – Power Steering Unit
Installation, page 8.11 procedure).
