9926813 R04 - 2013-2016 RZR 570 Service Manual
© Copyright Polaris Industries Inc.
9.13

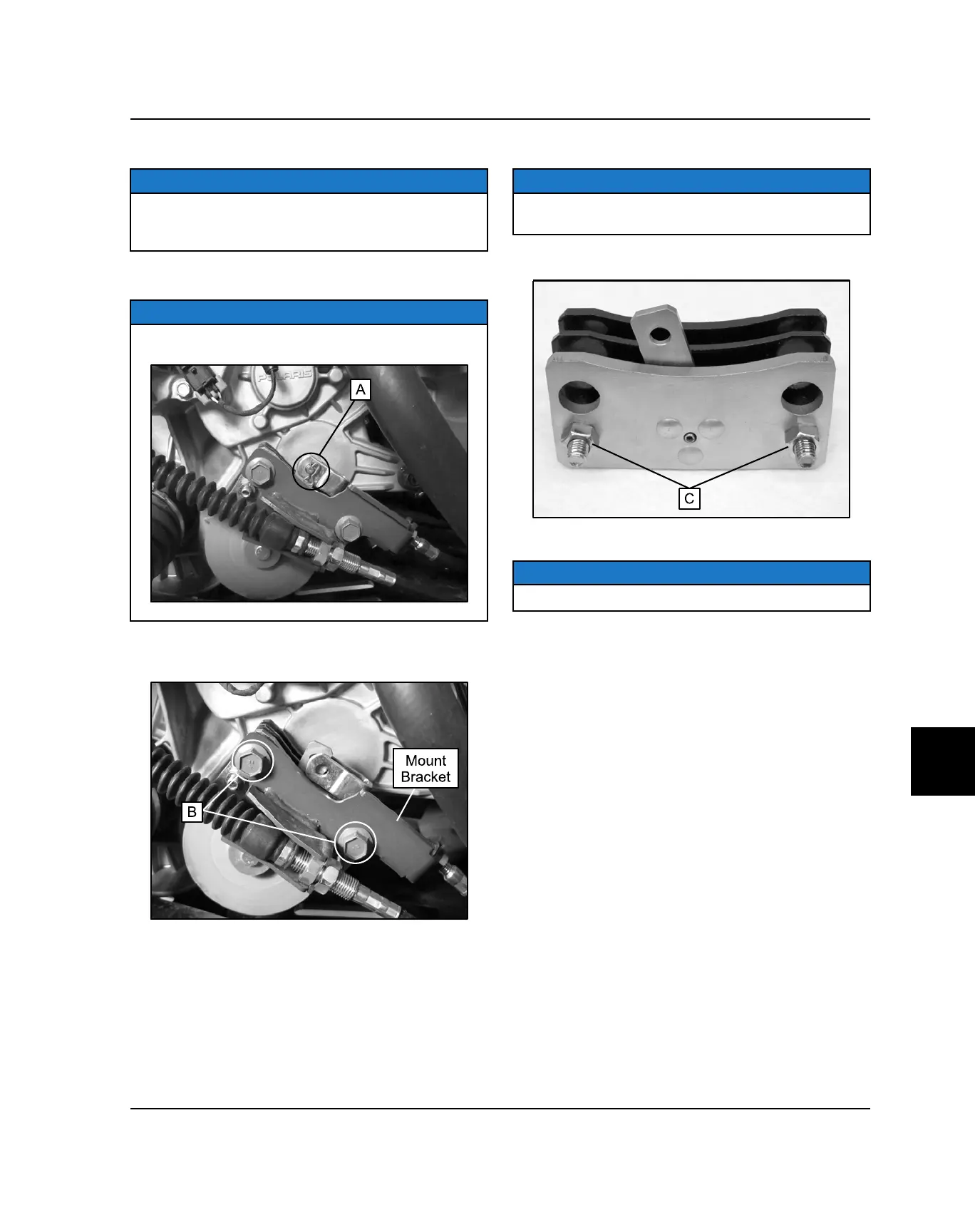

CALIPER REMOVAL
NOTE
Do not get oil, grease, or fluid on the parking brake
pads. Damage to or contamination of the pads may
cause the pads to function improperly.
1. Remove the clip pin and pin (A) from the parking
brake cable.
NOTE
Be sure the parking brake is not engaged.
2. Remove the two fasteners (B) retaining the parking
brake caliper mount / shift cable bracket.
3. Lift the parking brake caliper off the brake disc and
remove it from the vehicle.
CALIPER DISASSEMBLY / INSPECTION
NOTE
Refer to the “Electronic Parts Catalog” for parking brake
caliper replacement parts information.
1. Remove the two caliper assembly bolts (C).
2. Slide the brake pads and springs from the assembly.
NOTE
Retain the lever and ball bearings for reassembly.
3. Inspect brake pads for excessive wear. Replace as
needed.
4. Check the three steel balls for any signs of cracking.
Replace as needed.
5. Check ball seats in lever and stationary actuator. If
excessively worn, replace parts as needed.
BRAKE SYSTEM
