11.14
9926813 R04 - 2013-2016 RZR 570 Service Manual
© Copyright Polaris Industries Inc.

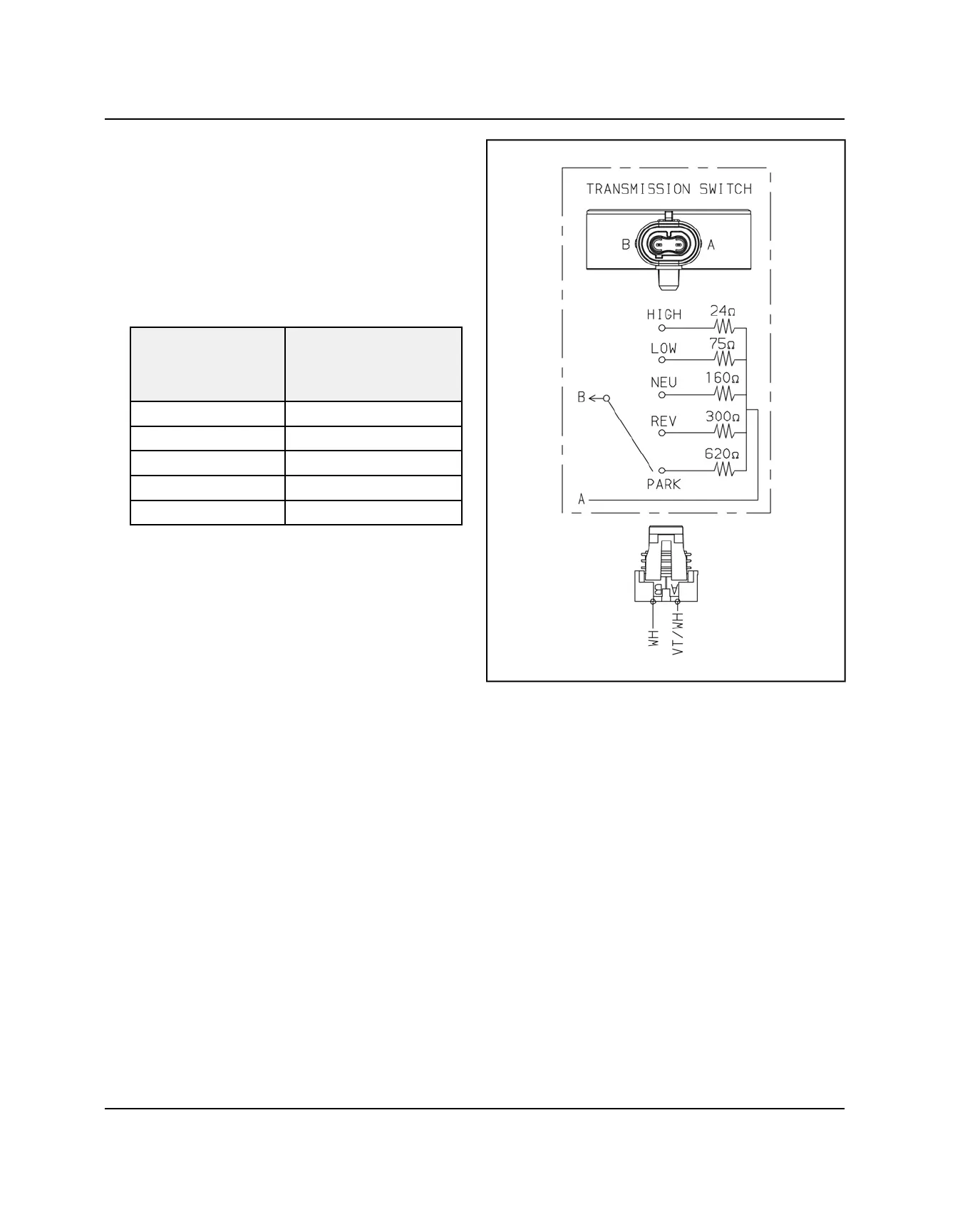

TRANSMISSION (GEAR POSITION) SWITCH
1. The transmission (gear position) switch is located on
the RH side of the transmission and can be
accessed through the RH wheel well area.
2. Disconnect the transmission switch harness by lifting
the connector lock and pulling on the connector. Do
not pull on the wiring.
3. Test the transmission switch continuity readings for
each gear position and compare to the specification
table below.
GEAR POSITION
RESISTANCE VALUE
(WHEN MEASURED AT
SWITCH TERMINALS A
AND B)
HIGH 24 Ω
LOW 75 Ω
NEU 160 Ω
REV 300 Ω
PARK 620 Ω
TURN SIGNAL SWITCH (INTL)
1. Disconnect the Turn Signal switch harness by
depressing the connector locks and pulling on the
connector. Do not pull on the wiring.
ELECTRICAL
