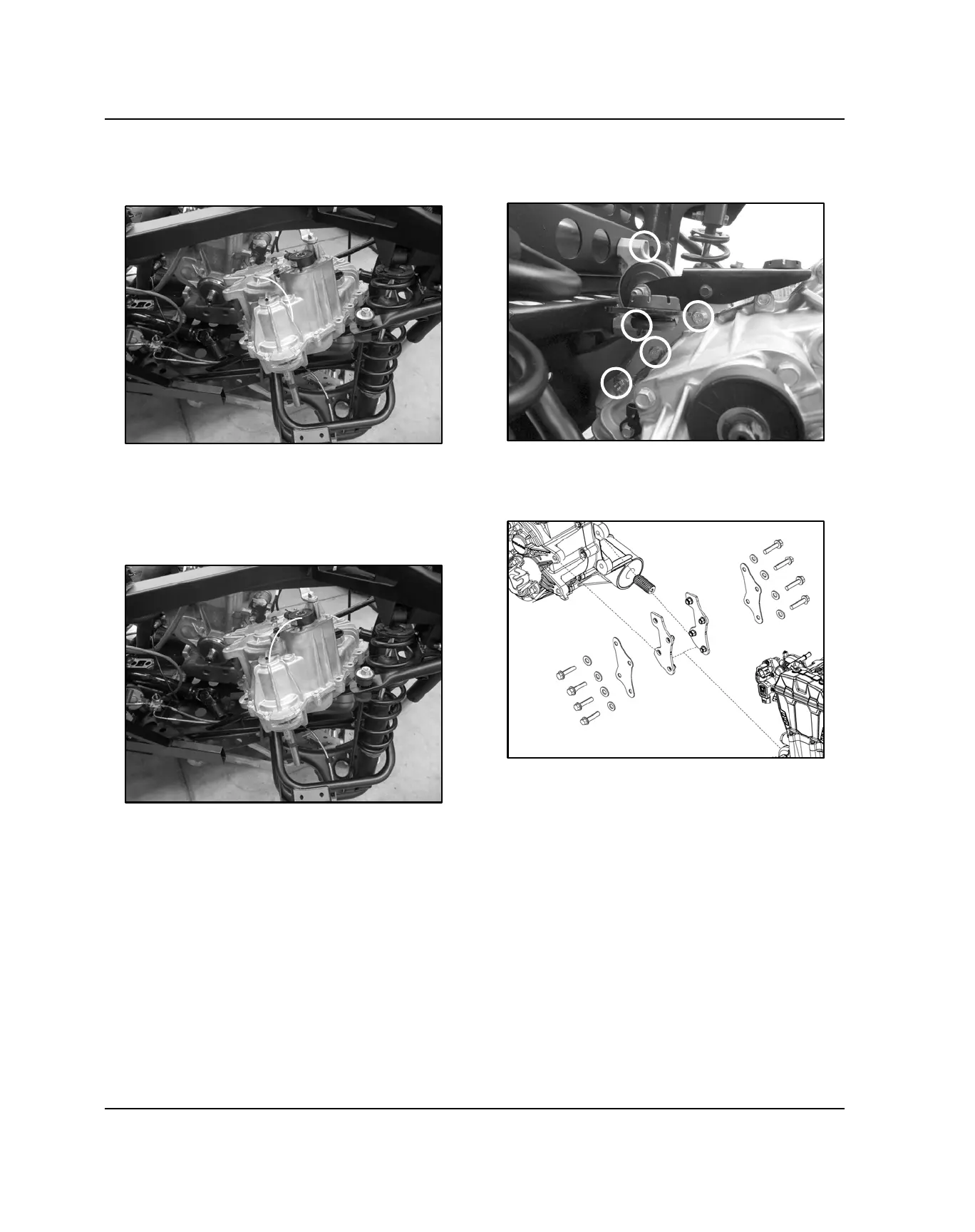

31. Rotate the top of the transmission to the left-hand
side of the vehicle. With the help of an assistant, lift
the assembly up and out of the vehicle frame.
TRANSMISSION INSTALLATION
1. With the help of an assistant lift transmission into the
vehicle frame through the left rear wheel well area as
shown below.
2. Carefully rotate the top of the transmission upward
into its proper location.
3. By hand, install the five rear transmission mount
assembly fasteners. Do not torque fasteners at this
time.
4. By hand, install the eight engine to transmission
coupler brackets, bolts and washers. Do not torque
fasteners at this time.
