8
9926813 R04 - 2013-2016 RZR 570 Service Manual
© Copyright Polaris Industries Inc.
8.17
5. Tighten the Press Asm. screw and fully remove the
ball joint from the A-arm.

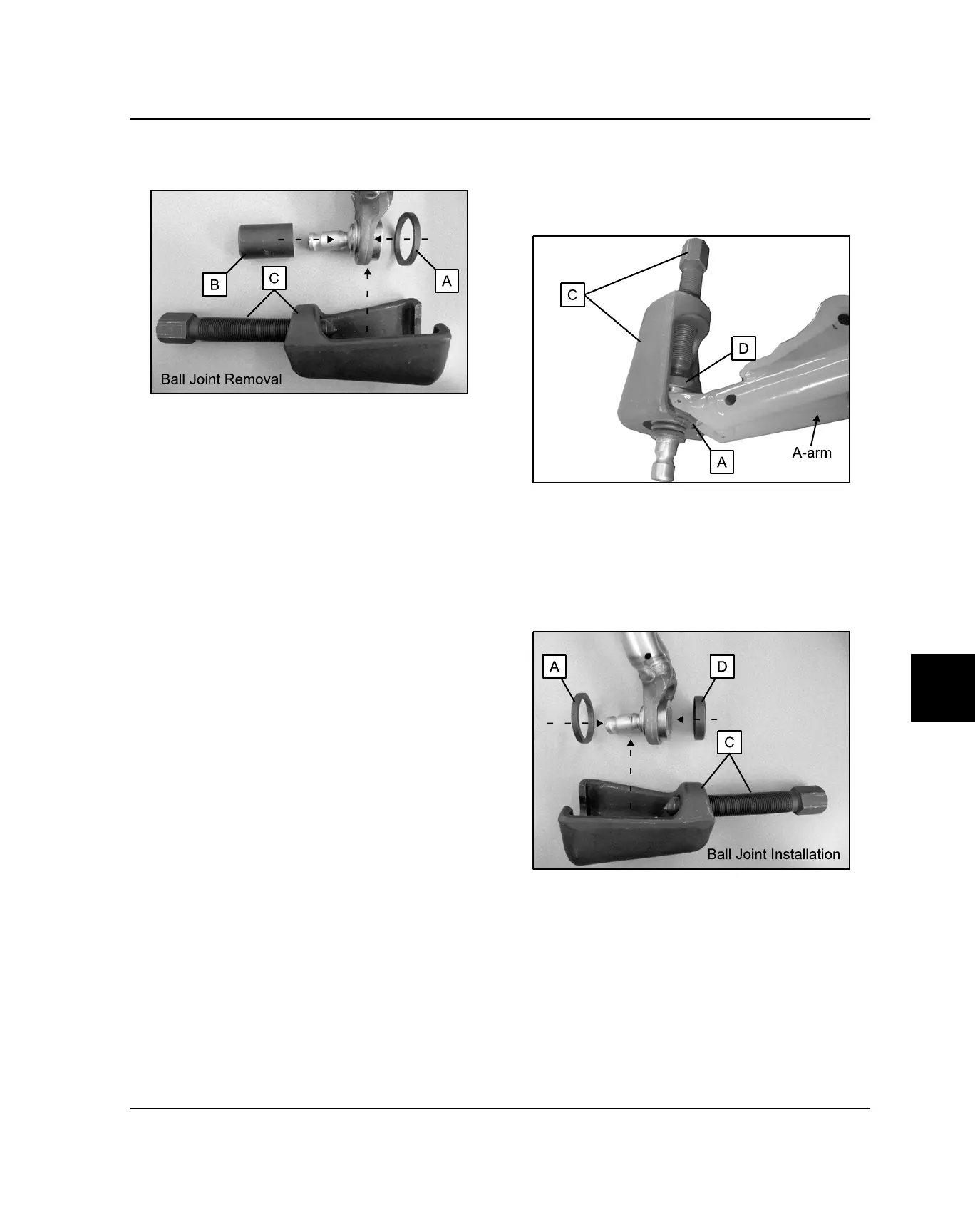

BALL JOINT INSTALLATION
1. By hand, install the NEW ball joint into the A-arm.
2. Position the Installation Adapter (D) over the face of
the ball joint.
3. Position the Spacer (A) over the shaft of the ball joint
so it is against the A-arm.
4. Install the Press Asm. (C) onto the A-arm to engage
the Installation Adapter and Spacer.
5. Tighten the Press Asm. screw and fully install the
ball joint into the arm.
STEERING / SUSPENSION
