7.36
9926813 R04 - 2013-2016 RZR 570 Service Manual
© Copyright Polaris Industries Inc.

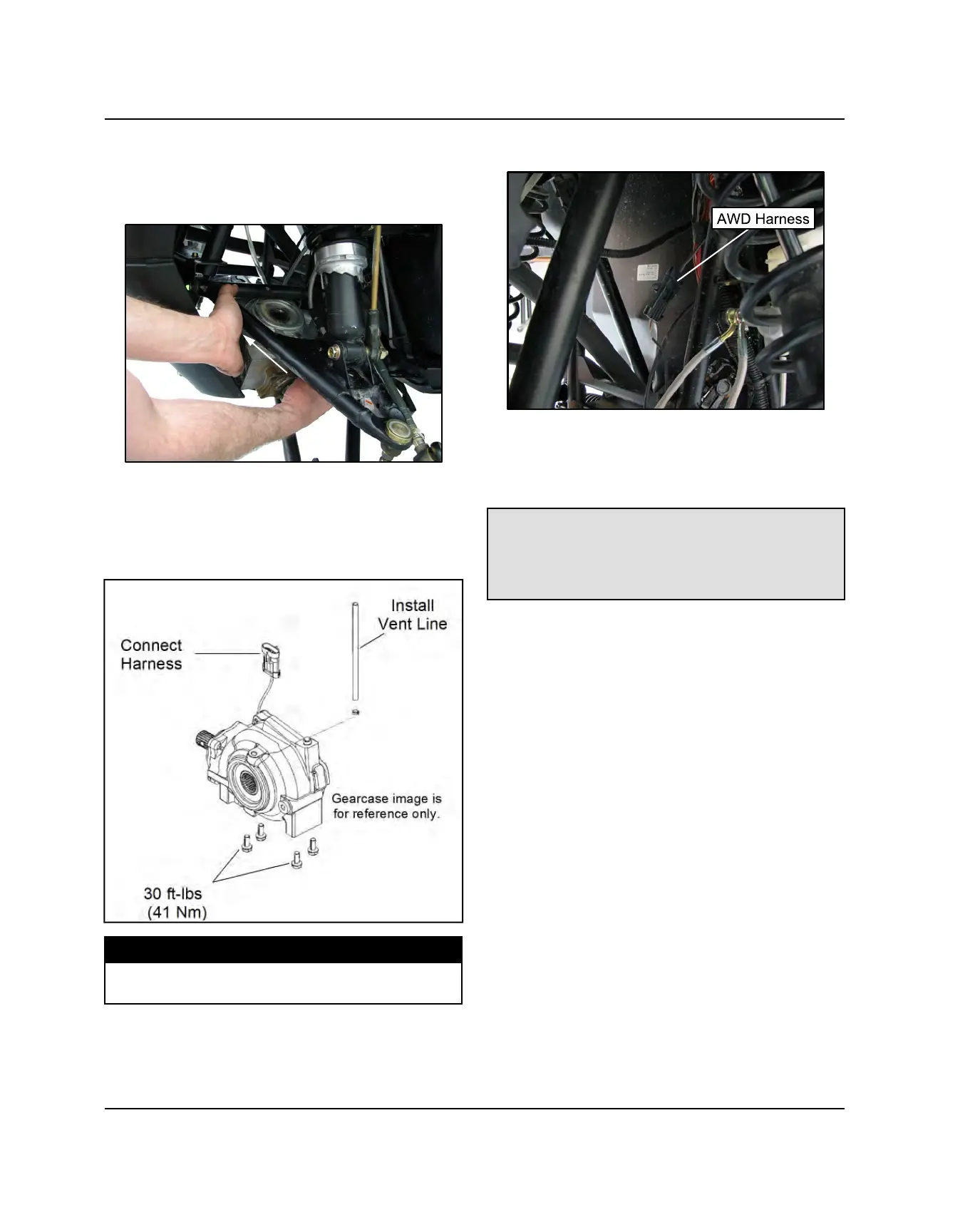

GEARCASE INSTALLATION
1. Install the gearcase back into the vehicle through the
left-hand wheel well area, between the upper and
lower A-arms.
2. Install the propshaft onto the front gearcase input
shaft. Use a NEW spring pin in the front propshaft.
3. Install the four bolts that secure the front gearcase to
the frame and torque to specification.
4. Install the vent line.
TORQUE
Front Gearcase Mounting Bolts:
30 ft-lbs (41 Nm)
5. Connect the AWD wire harness.
6. Refer to Front Drive Shaft Installation, page 7.12 and
install both front drive shafts into the gearcase.
7. Add the proper lubricant to the front gearcase. Refer
to Chapter 2 for fluid fill and change information.
Polaris Demand Drive Fluid:
2877922
Front Housin:g Capacity
6.75 fl. oz. (200 ml)
FINAL DRIVE
