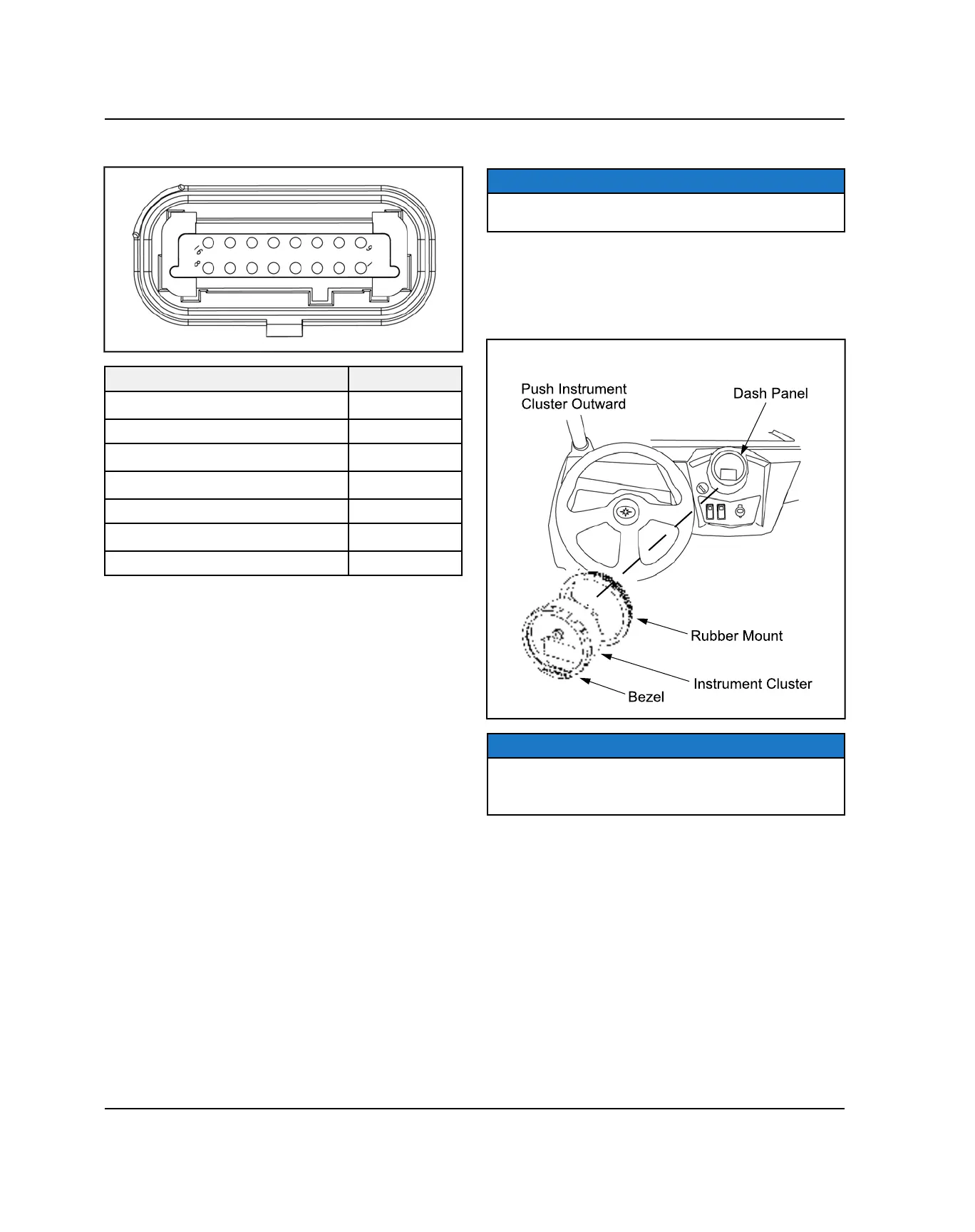

INSTRUMENT CLUSTER PINOUTS
FUNCTION PIN
CAN High
1
CAN Low 2
Switched Power (Vdc)
3
Constant Power (Vdc)
4
Ground
5
High Beam Input
8
Fuel Level Sensor 11
INSTRUMENT CLUSTER REMOVAL
NOTE
Do not allow alcohol or petroleum products to come in
contact with the instrument cluster lens.
1. Disconnect the wire harness connector from the
back side of the instrument cluster.
2. Push the instrument cluster out from the back side of
the dash while securely holding the dash and rubber
mount.
NOTE
Do not remove the rubber mount from the dash panel.
Only remove the rubber mount if necessary. The bezel
is a snap-on assembly and is a serviceable part.
ELECTRICAL
