CALIPER INSTALLATION

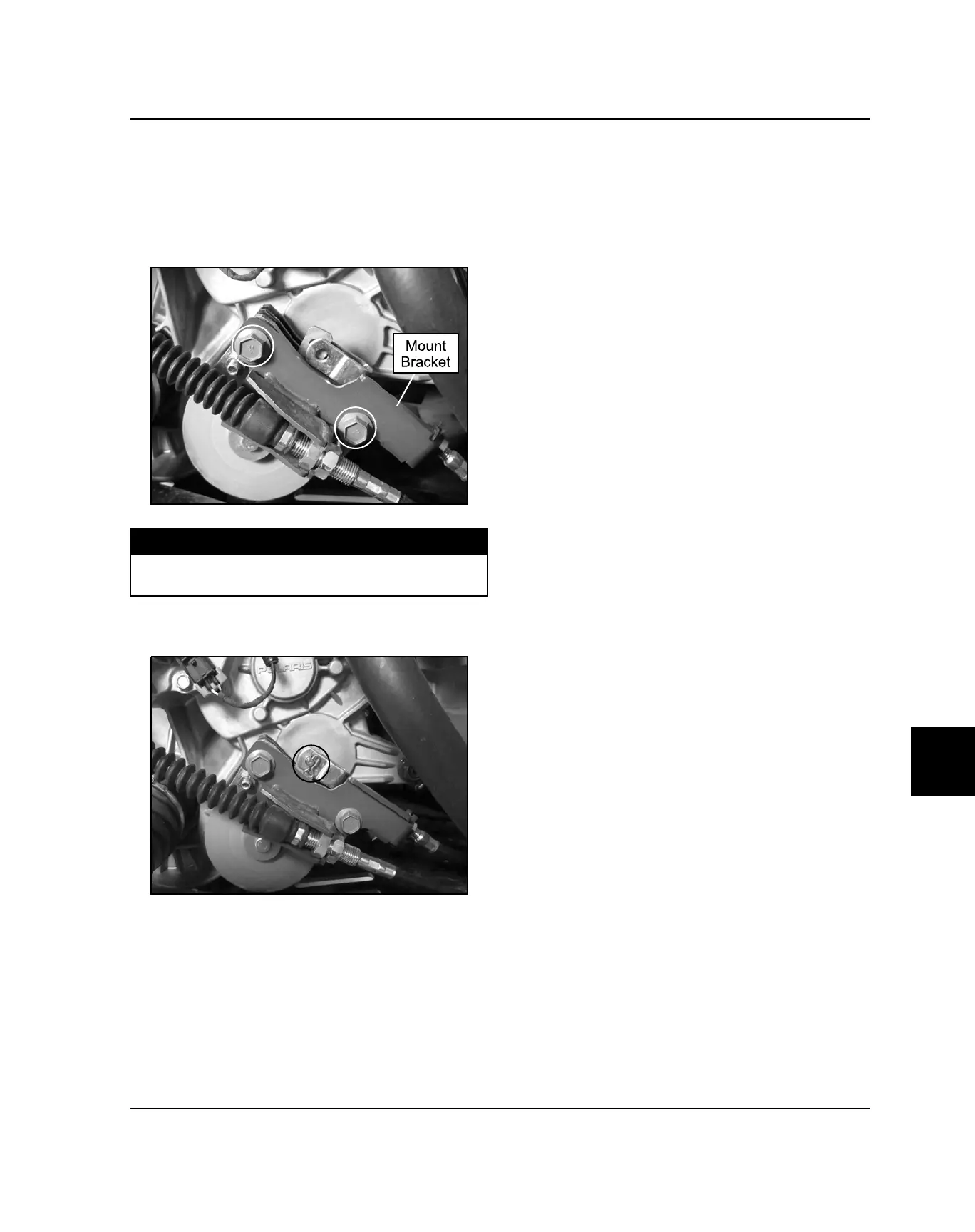

1. Install the parking brake caliper over the brake disc.
Align the caliper mounting sleeves with the holes in
the mount bracket.
2. Install and tighten the two caliper mount / shift cable
bracket fasteners to specification.
TORQUE
Parking Brake Caliper Mount Bracket Bolts:
37 ft-lbs (50 Nm)
3. Install the cable, pin and clip pin. Test the park brake
for proper function.
