Polaris RZR 570 2015 Service Manual

11.46
9926813 R04 - 2013-2016 RZR 570 Service Manual
© Copyright Polaris Industries Inc.

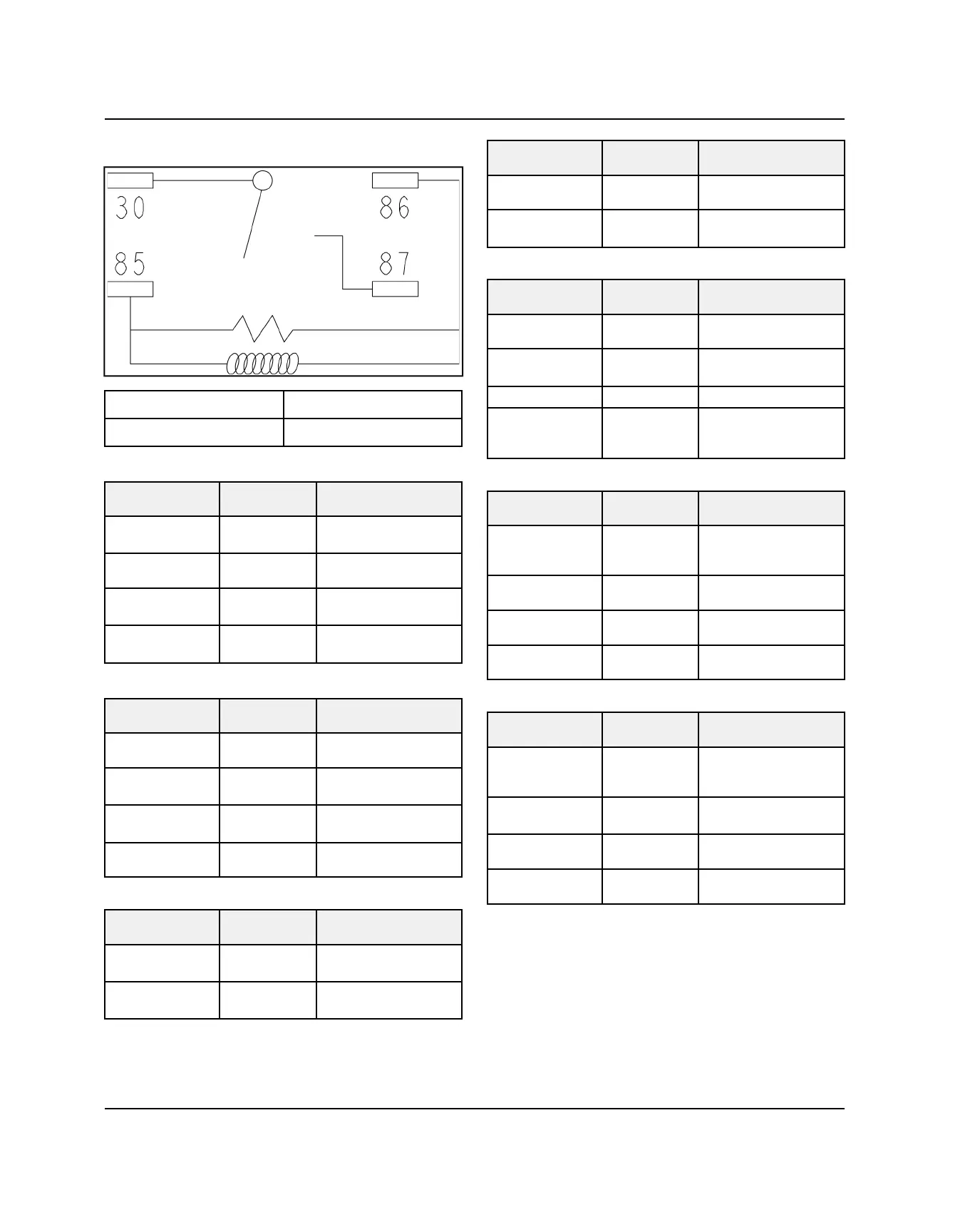

RELAYS
(85) Coil Ground (30) High side power in
(86) Coil Power (87) High side power out
HEADLIGHT RELAY (NON-EPS UNITS)
WIRE COLOR FUSE BOX
PIN
FUNCTION
Dark Green A2 High side power to
headlight splice
White / Red
A3
Coil power from key
switch
Brown B2
Ground (front ground
splice)
Red / Yellow B3 High side power from
20A Lights fuse
EPS RELAY (EPS UNITS)
WIRE COLOR FUSE BOX
PIN
FUNCTION
Orange
A2 High side power to
EPS unit
Orange A3 Coil power from B+
splice
Brown B2
Ground (front ground
splice)
Red B3
High side power from
30A Power fuse block
FUEL PUMP RELAY
WIRE COLOR FUSE BOX
PIN
FUNCTION
Red / Blue
A4 High side power to
fuel pump
Red / Dark Blue
A5
Coil power from ECM
B+ splice / key switch
WIRE COLOR FUSE BOX
PIN
FUNCTION
Dark Green /
Yellow
B4
Ground from ECU
Red / Green
B5
High side power from
10A Fuel Pump fuse
FAN RELAY
WIRE COLOR FUSE BOX
PIN
FUNCTION
Orange / Black A6 High side power to
fan
Red / Dark Blue
A7
Coil power from ECM
B+ splice / key switch
Orange / White
B6 Ground from ECU
Red B7
High side power from
20A Fan circuit
breaker
EFI RELAY
WIRE COLOR FUSE BOX
PIN
FUNCTION
Red / Dark Blue
A8 High side power to
ECM B+ splice / key
switch
Red / White
A9
Coil power from 20A
EFI fuse
Dark Green /
Yellow
B8 Ground from ECU
Red / White
B9
High side power from
20A EFI fuse
CHASSIS RELAY
WIRE COLOR FUSE BOX
PIN
FUNCTION
White
C8
High side power to
Lights, Drive, Accy
fuses
Orange C9 Coil power from B+
splice
Brown / White D8 Ground through
Chassis Diode
Red D9 High side power from
30A Power fuse block
ELECTRICAL
