PVT SYSTEM SERVICE

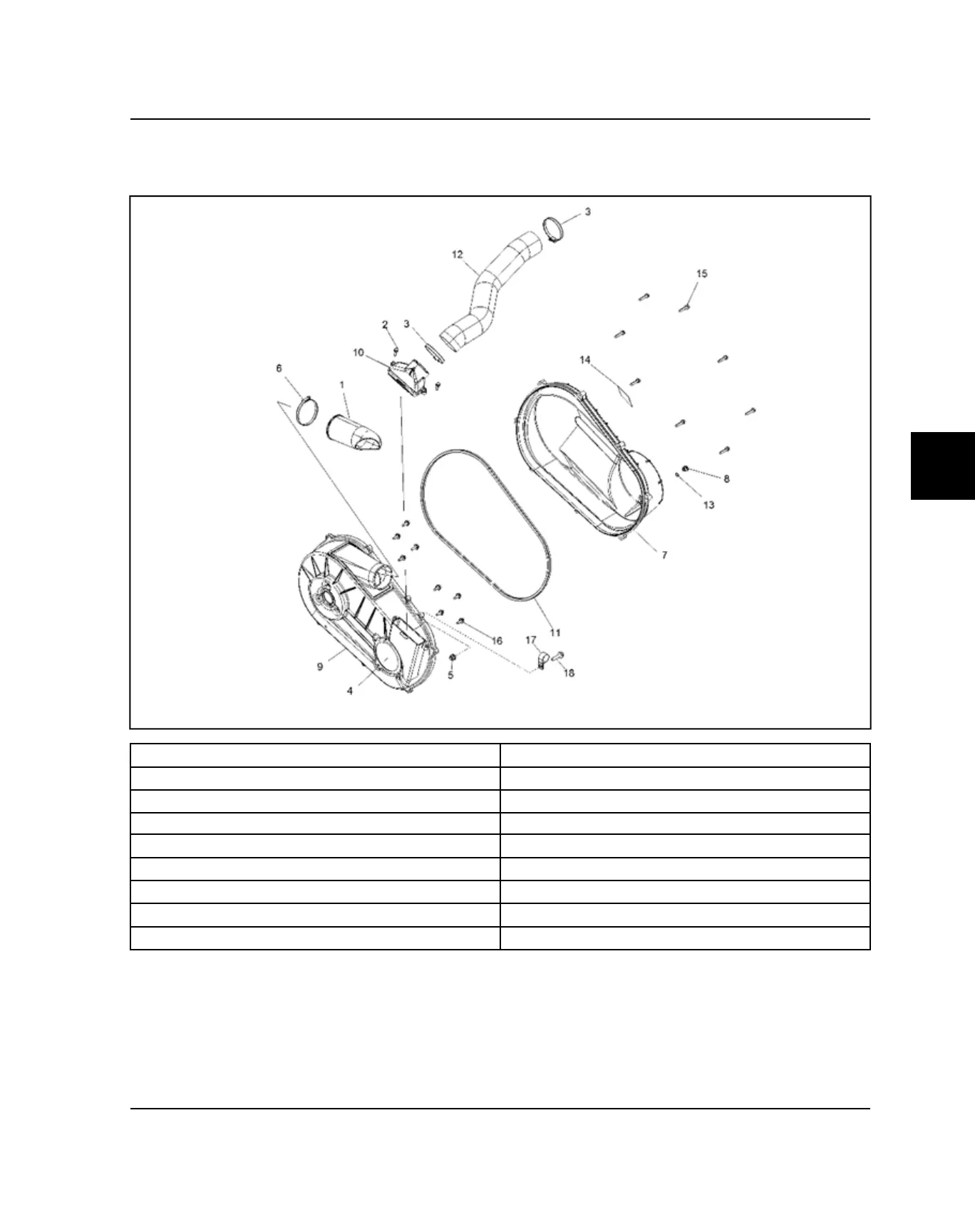

PVT COVERS AND DUCTING COMPONENTS
q
DUCT, OUTLET, CLUTCH
a
DUCT, CLUTCH, AIR INLET
w
SCREW
s
SEAL, OUTER, CLUTCH COVER
e
CLAMP, NARROW BAND
d
HOSE, INTAKE, CLUTCH
r
RTV SILICONE
f
O-RING
t
NUT
g
DECAL, BELT, CAUTION/CHECK
y
CLAMP, NARROW BAND
h
SCREW
u
ASM., COVER, CLUTCH, OUTER
j
ASM., BOLT/WASHER
i
PLUG, DRAIN
k
CLAMP, VINYL COATED
o
ASM., COVER, CLUTCH, INNER
l
BOLT
