9
9926813 R04 - 2013-2016 RZR 570 Service Manual
© Copyright Polaris Industries Inc.
9.33

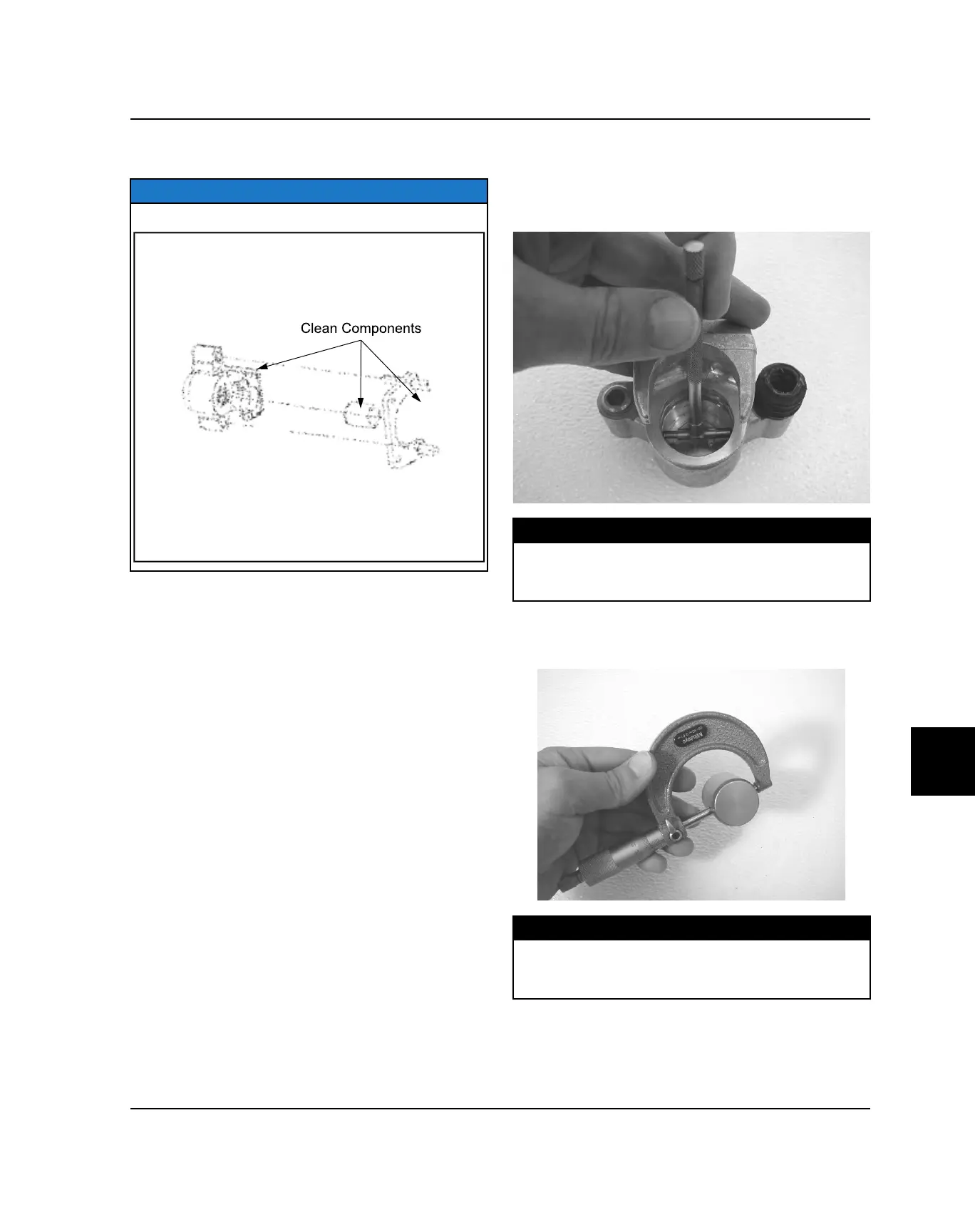

5. Clean the caliper body, piston, and retaining bracket
with brake cleaner or alcohol.
NOTE
Be sure to clean seal grooves in caliper body.
CALIPER INSPECTION
1. Inspect caliper body for nicks, scratches or wear.
Measure bore size and compare to specifications.
Replace if damage is evident or if worn beyond
service limit.
MEASUREMENT
Rear Caliper Piston Bore I.D.
Standard: 1.191″ (30.25 mm)
Service Limit: 1.192″ (30.28 mm)
2. Inspect piston for nicks, scratches, wear or damage.
Measure diameter and replace if damaged or worn
beyond service limit.
MEASUREMENT
Rear Caliper Piston O.D.:
Standard: 1.1875″ (30.16 mm)
Service Limit: 1.186″ (30.12 mm)
3. Inspect the brake disc and pads as outlined in this
chapter.
BRAKE SYSTEM
