CAB FRAME
ASSEMBLY / REMOVAL
NOTE
Finger tighten all components until cab frame is
completely assembled on vehicle, then tighten to
specifications listed.

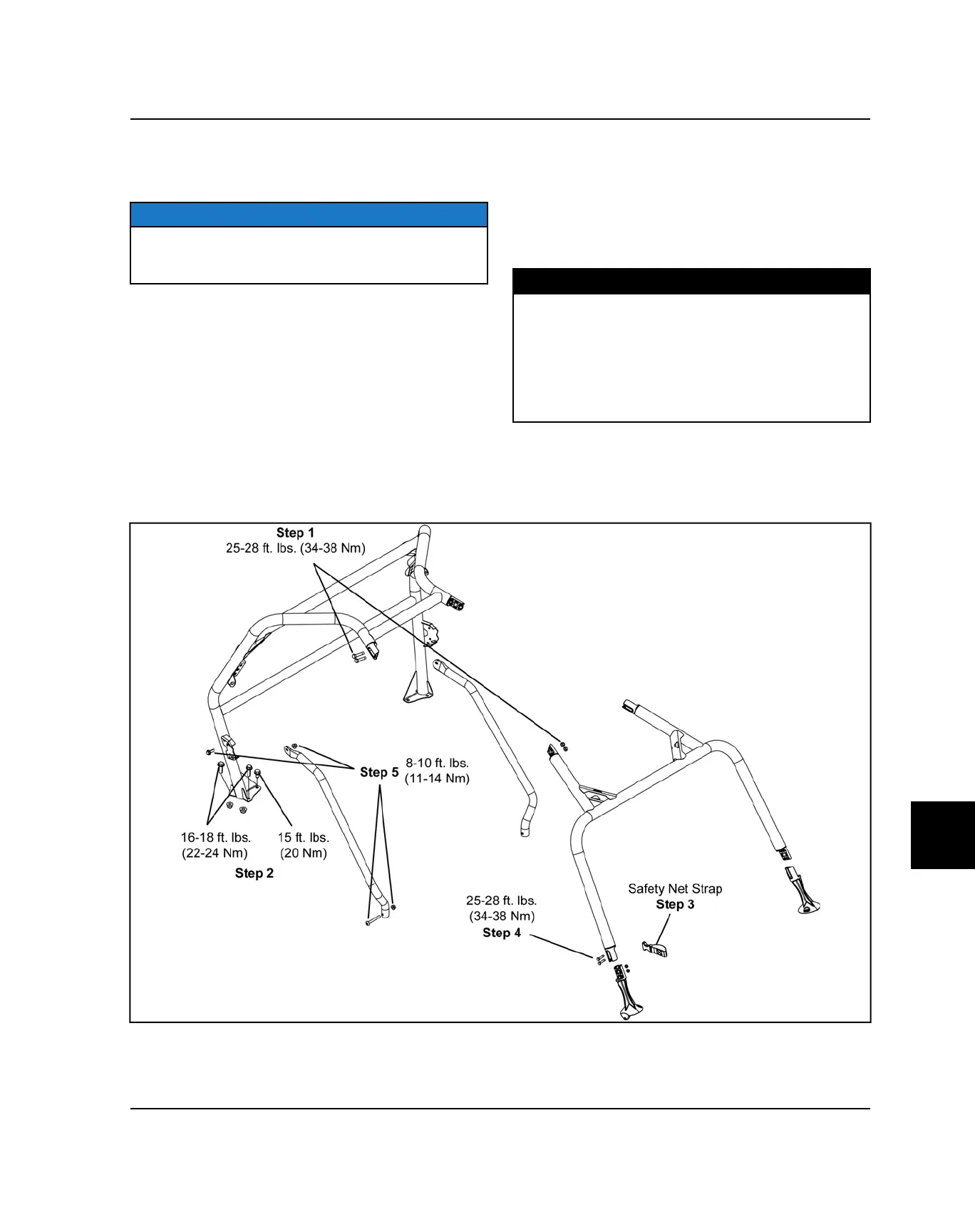

1. Assemble the rear cab frame and the front cab frame
at the coupler joints and secure with four (3/8-16 x 1
1/4) screws and (3/8-16 Nyloc) nuts. Tighten screws
to specification.
2. Place the assembled cab frame onto the vehicle and
align the rear mount holes. Fasten the rear cab
frame brackets to vehicle with four (5/16-18) bolts
and (5/16-18) nuts. Tighten bolts to 16-18 ft-lbs (22-
24 Nm). Fasten the two self-tapping screws to the
rear inner portion of the bracket on each side.
Tighten screws to specification.
3. Place the straps from the safety net over the front
coupler posts.
4. Fasten the front of the cab frame to the base
brackets and secure with four (3/8-16 x 1 1/4) screws
and (3/8-16 Nyloc) nuts. Tighten screws to
specification.
5. Attach side bars to cab frame using M6 screws and
nuts on top and M8 screws and nuts on the bottom.
Tighten to specification.
TORQUE
3/8-16 x 1 1/4 Screws: 25-28 ft-lbs (34 Nm)
5/16-18 Screws: 15 ft-lbs (20 Nm)
3/8-16 x 1 1/4 Nyloc Nuts:28 ft-lb (38 Nm)
M6 Screws (Hip Bolster Bolts): 8 ft-lb (11 Nm)
6. To remove the cab frame, reverse the assembly
procedure (steps 1-5).
