8.24
9926813 R04 - 2013-2016 RZR 570 Service Manual
© Copyright Polaris Industries Inc.

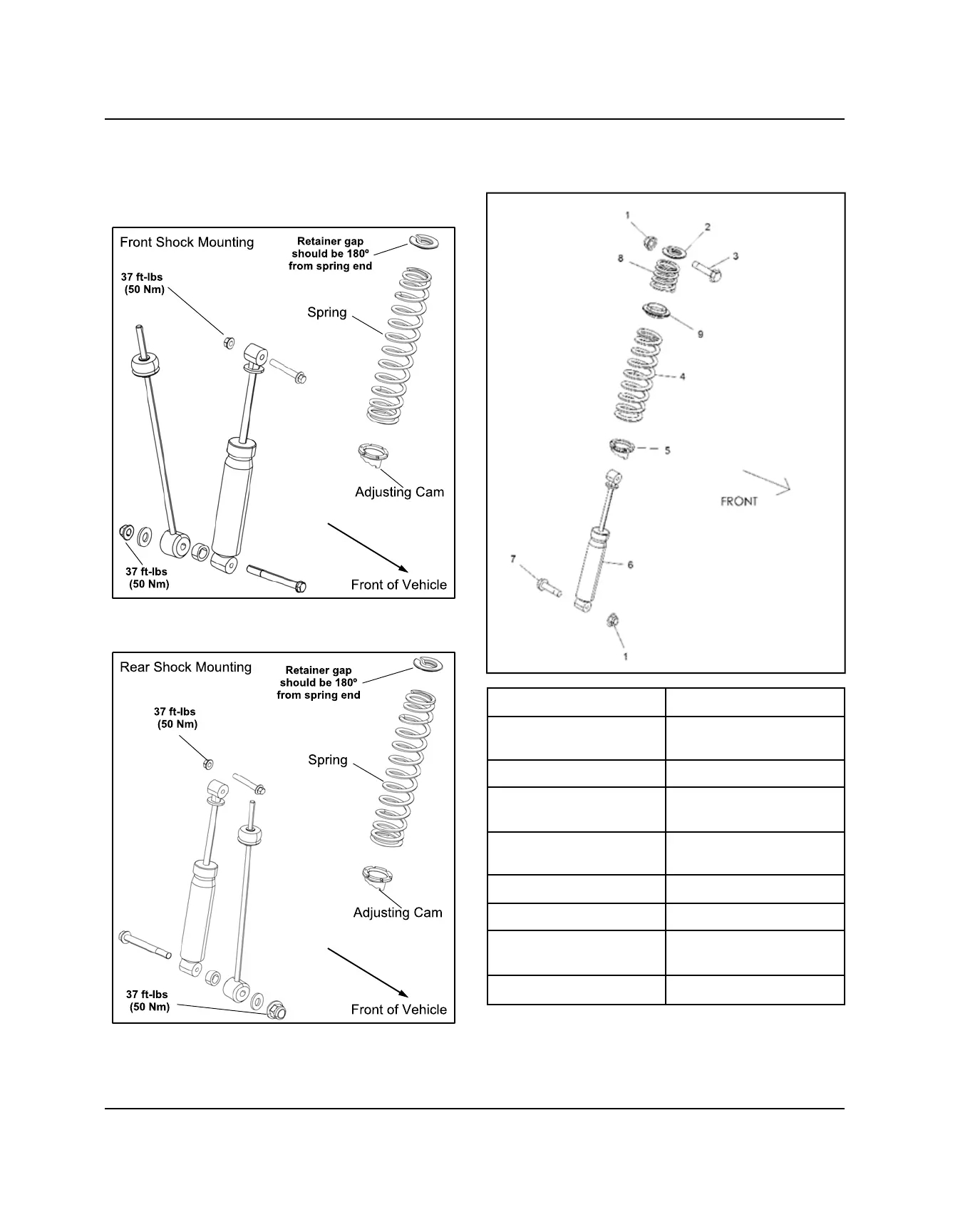

SHOCKS / SPRINGS
EXPLODED VIEW
2013-2016 Front Suspension
2013 Rear Suspension
2014-2016 Rear Suspension
q
NUT, FLANGED
37 ft-lbs (50 Nm)
w
RETAINER, SPRING
Retainer gap should be
180° from spring end.
e
SCREW
r
SPRING, MATTE
BLACK [AD]
t
CAM, ADJUSTING,
SPRING
y
SHOCK, REAR
u
BOLT
i
SPRING, MATTE
BLACK [AD]
o
SPACER, SPRING
STEERING / SUSPENSION
