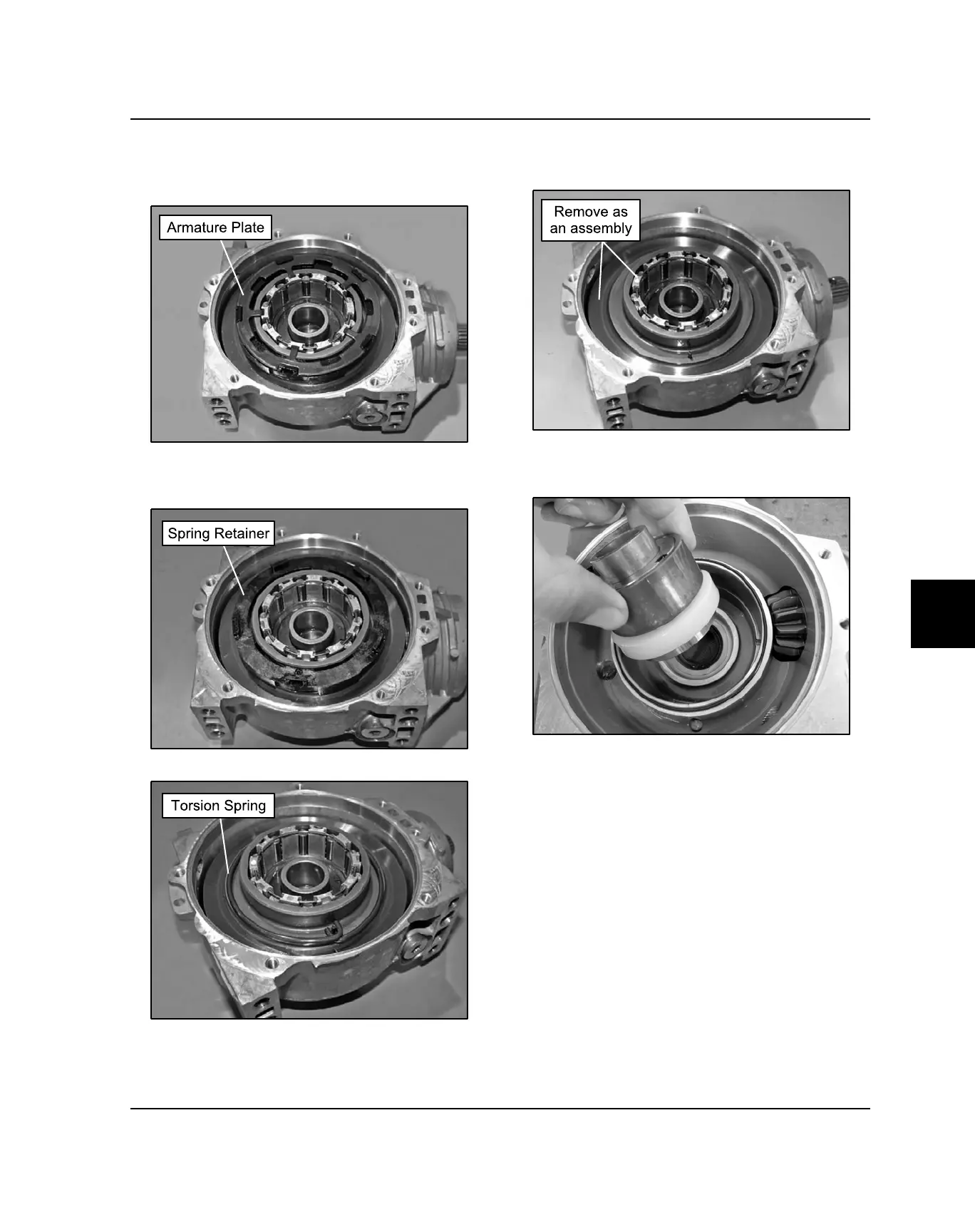

4. Remove and inspect the armature plate. Refer to
Chapter 7 – AWD Diagnosis, page 7.28 for detailed
inspection process.
5. Remove the torsion spring retainer and torsion
spring from the top of the ring gear.
6. Remove the clutch housing / ring gear and roll cage
assembly from the gearcase housing.
7. Remove the RH output hub assembly from the
gearcase housing.
