5.24
9926813 R04 - 2013-2016 RZR 570 Service Manual
© Copyright Polaris Industries Inc.

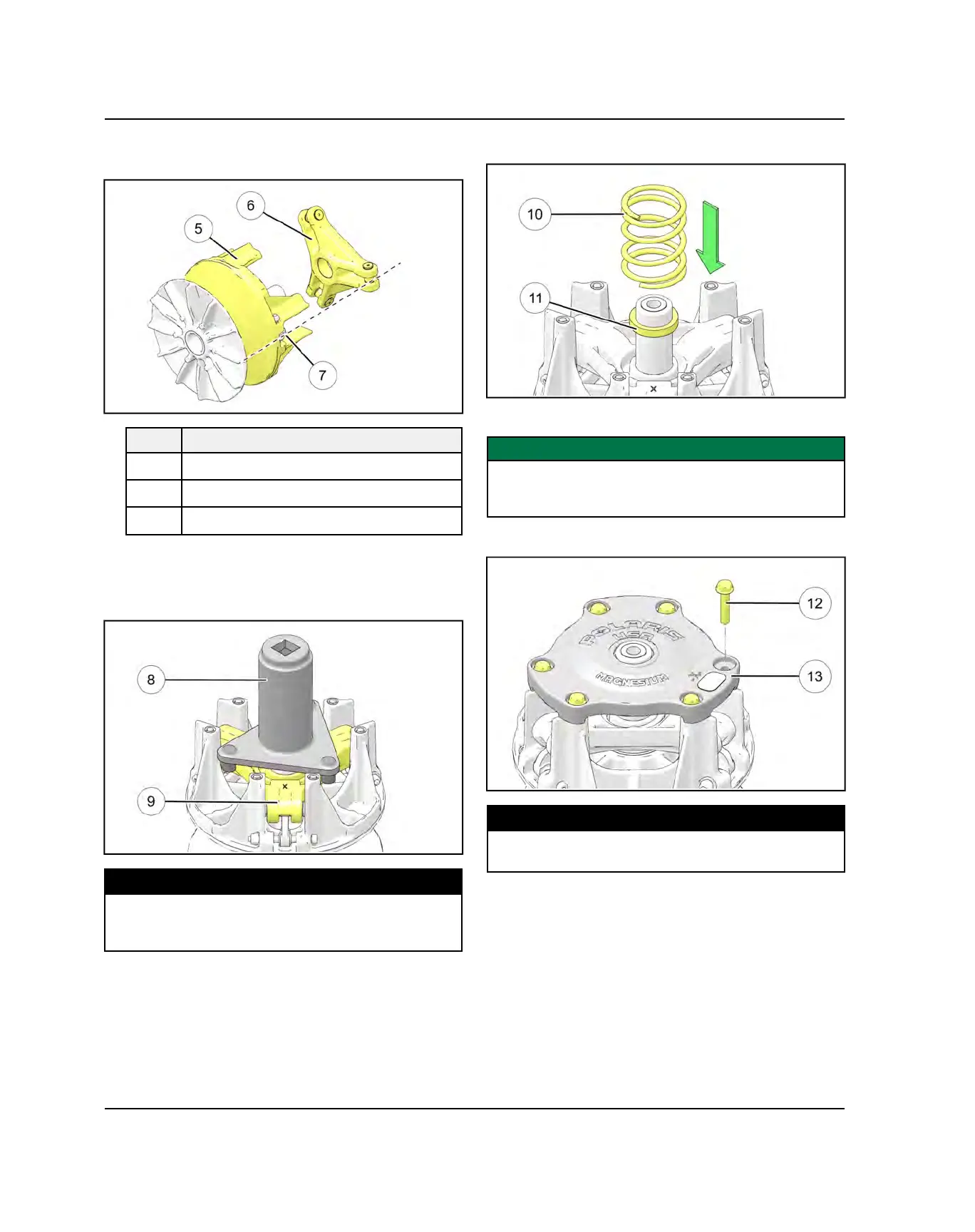

5. Install the spider assembly onto the shaft threads. Be
sure all of the alignment marks
u
are in alignment.
ITEM DESCRIPTION
t
Moveable Sheave
y
Spider
u
Alignment Marks
6. Install clutch onto holding fixture (PN 2871358-A) and
secure in a bench vice. Torque spider
o
to
specification using the holding fixture and spider tool
i
. Torque spider to specification
TORQUE
Spider:
225 ft-lb (305 Nm)(Apply 0.4 mL Loctite® 7088
Primer and 0.4 mL Loctite® 620™)
7. Install shift weights using new lock nuts on the bolts.
8. Reinstall clutch spring
a
and limiter spacer
s
.
9. Reinstall cover
f
, aligning “X” mark with other marks.
IMPORTANT
If the aligning marks are not in alignment, the clutch will
not be in balance. The drive clutch assembly must be
replaced.
10.Torque cover bolts
d
evenly to specification.
TORQUE
Drive Clutch Cover Bolt:
100 in-lb (12 Nm)
PVT SYSTEM
