6.24
9926813 R04 - 2013-2016 RZR 570 Service Manual
© Copyright Polaris Industries Inc.

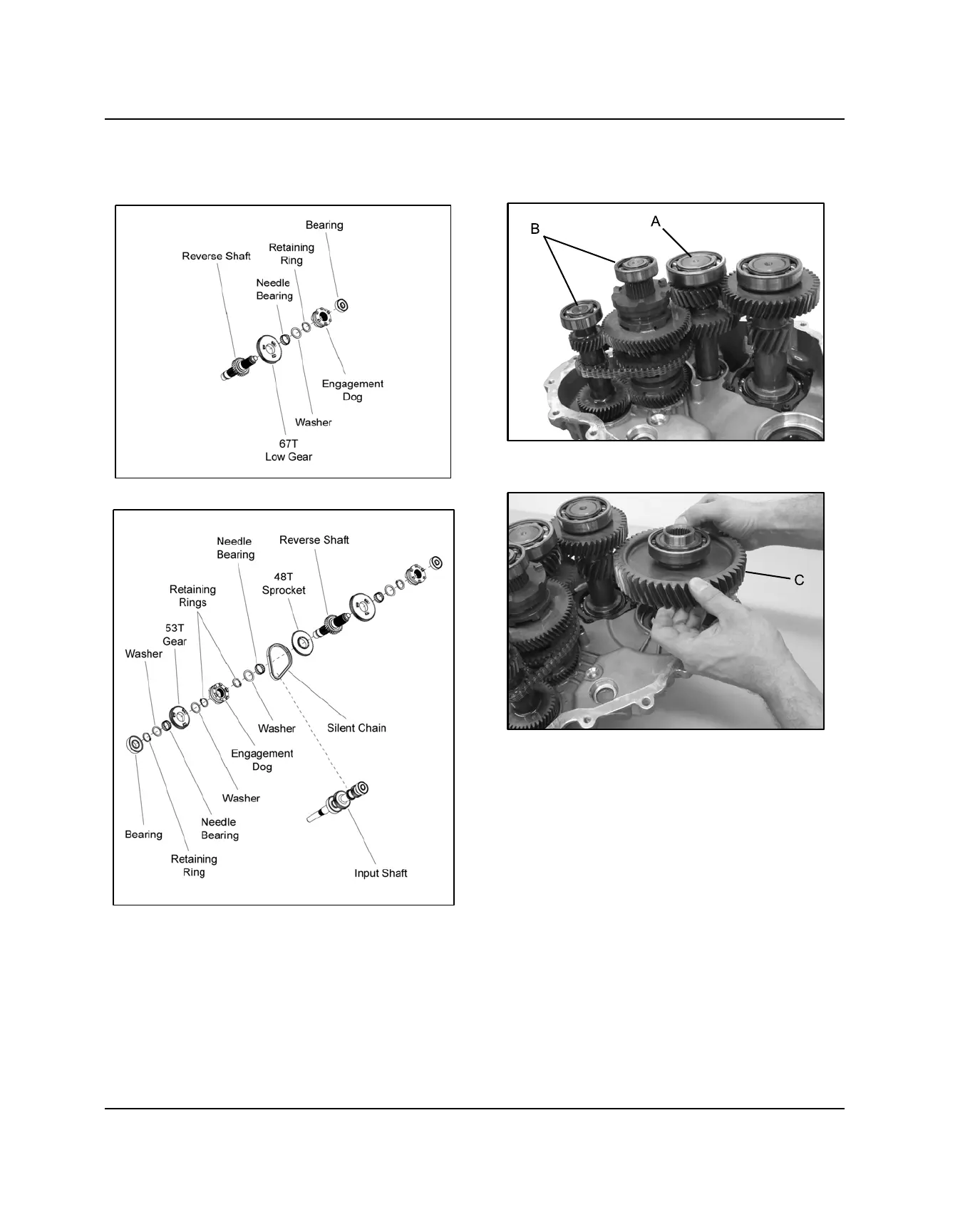

18. Assemble the reverse shaft assembly and input shaft
assembly if previously disassembled (see
illustrations).
19. Install the idler gear shaft assembly (A) and gear
cluster assembly (B) into the transmission housing,
all at the same time.
20. Install the rear output shaft assembly (C).
TRANSMISSION
