Submix Signals
This section describes the processing that is available for each submix channel.
Submixes may be defined as mono virtual channels or stereo virtual channels.
When the submix is a stereo virtual channel, the processing is applied equally
to both the left and the right physical channels that define the stereo virtual
channel. Each time a signal is sent to a submix and received back into the
matrix, 1.5 msec is added to the delay of the signal.

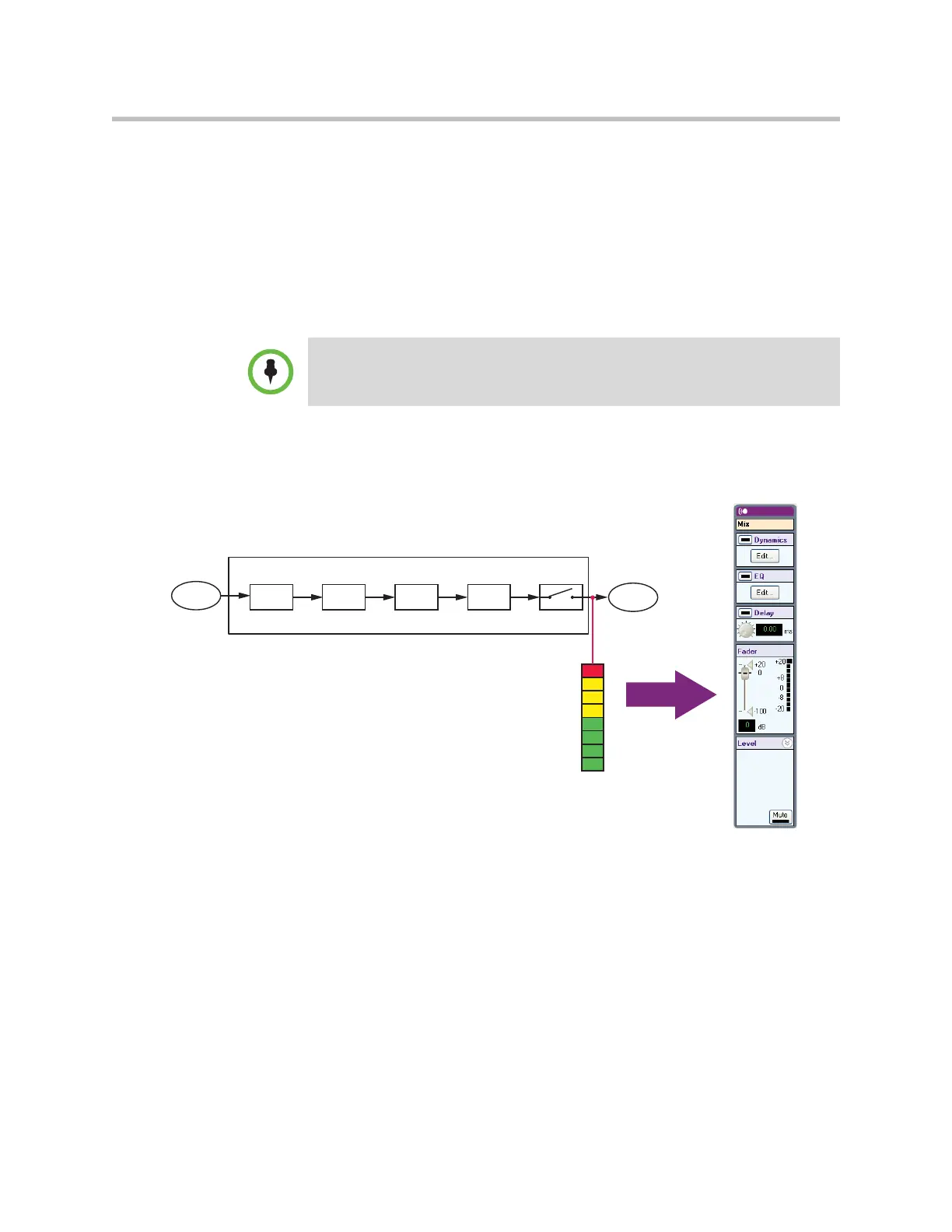

The submix processing flow is shown in the following figure along with the
location of the submix signal level meter. The gain on the submix can be
adjusted with the fader control.
Dynamics
The output dynamics processing available on the outputs is the same as the
input dynamics processing and is described in Section: Dynamics Processing.
Equalization
The equalization processing that is available for each submix consists of a
dedicated
• Low Pass,
Routing a signal to a submix adds 1.5 milliseconds of delay to the signal.
Mute
Submix Processing
Submix Input
from Matrix
Submix output
to Matrix
Dynamics
Processing
Parametric
Equalization
Fader Delay
