Physical Logic Pins

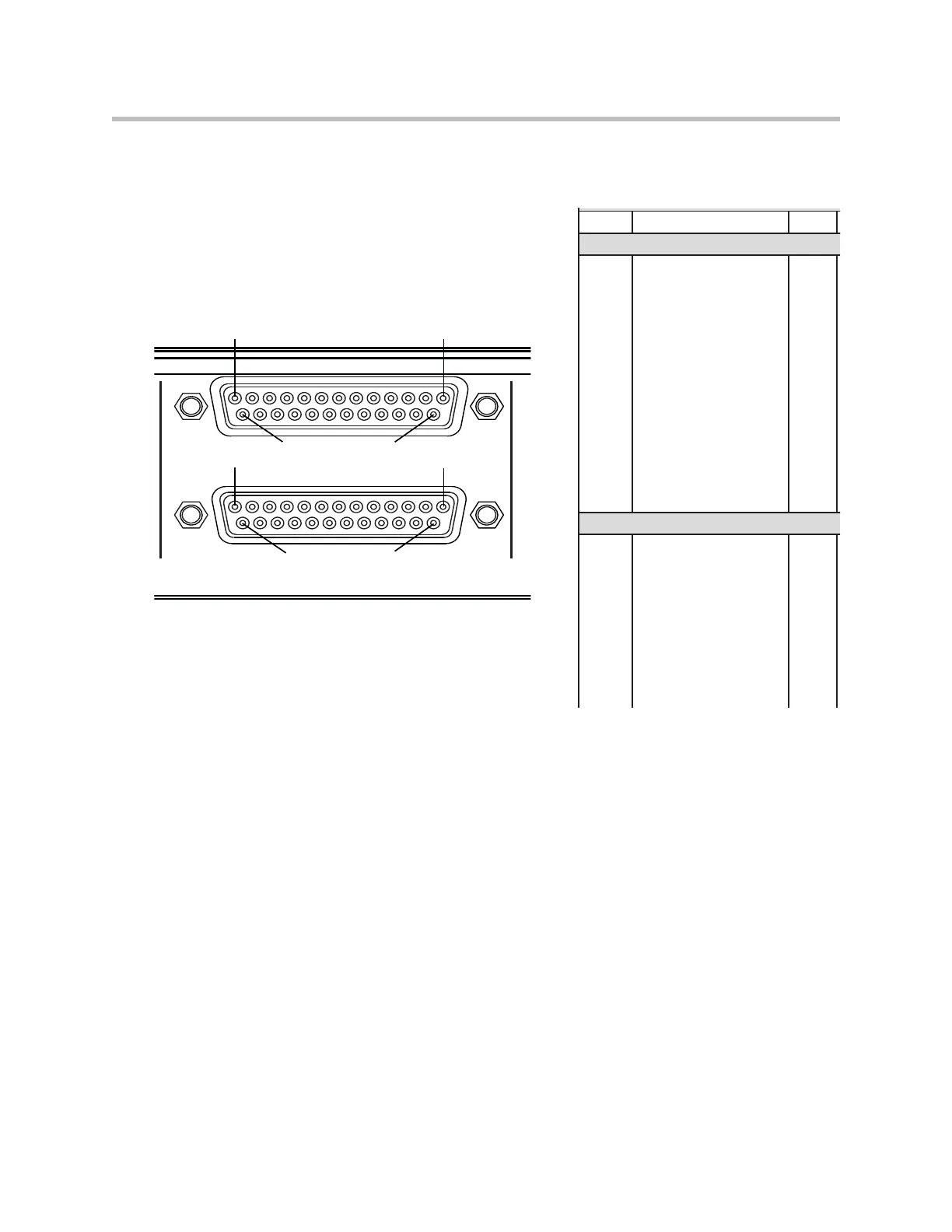

The physical logic pins and their labeling is shown in the following figure.
The logic inputs and logic outputs have physical inputs and outputs 1 - 11 on
Remote Control 1 connector and 12 - 22 on Remote Control 2 connector on each
SoundStructure device.
REMOTE CONTROL 2
REMOTE CONTROL 1
Pin 25 Pin 14
Pin 1Pin 13
Pin 1Pin 13
Pin 14Pin 25
Pin Signal
REMOTE CONTRO
REMOTE CONTRO
1 +5V
2 Logic output 1
3 Logic output 2
4 Logic output 3
5 Logic output 4
6 Logic output 5
7 Logic output 6
8 Logic output 7
9 Logic output 8
10 Logic output 9
11 Logic output 10
12 Logic output 11
13 Analog gain input 1
Pin
14
15
16
17
18
19
20
21
22
23
24
25
1 +5V
2 Logic output 12
3 Logic output 13
4 Logic output 14
5 Logic output 15
6 Logic output 16
7 Logic output 17
8 Logic output 18
9 Logic output 19
14
15
16
17
18
19
20
21
22
