6. Once the firmware has been updated, the SoundStructure system will
automatically reboot and SoundStructure Studio will display the Connect
to Devices dialog. Close the Connect to Devices dialog and wait for the
SoundStructure system to reboot. The SoundStructure front panel light
will blink green while the system is booting and will turn solid green
when the system has finished rebooting.
Installing the New Plugin Cards
Once the SoundStructure system has the appropriate firmware loaded, the
next step is to power down the system and install (or replace) the plug-in cards
with the newly selected cards.
Power Down the System
To power down the system, remove the power cord from the rear of the
SoundStructure system. If there are multiple devices in a system, remove
power from all the devices.
Install Plug-in Cards
Remove any existing plug-in cards that were replaced with the Upgrade

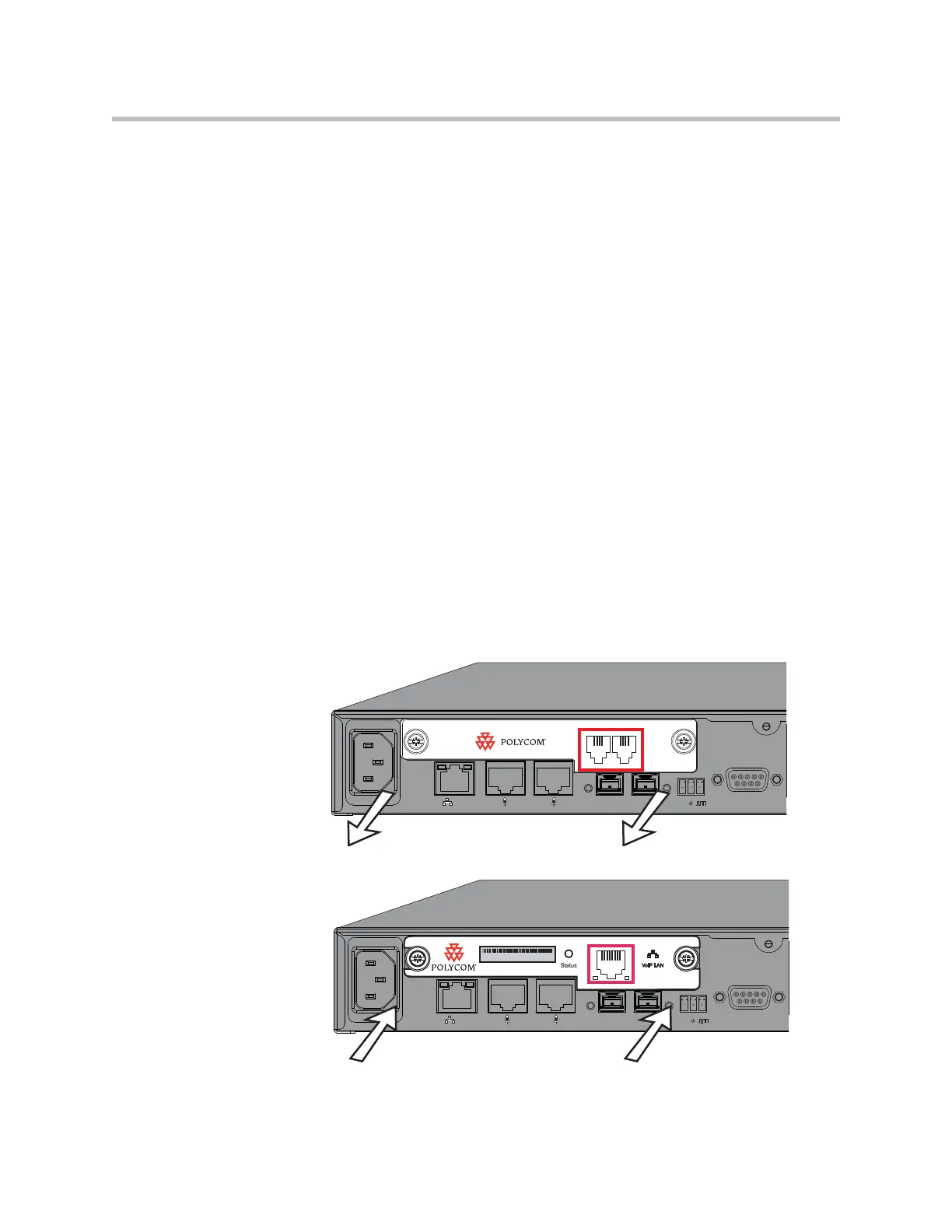

Plug-in Card Tool and replace with the new plug-in cards. The following
figure shows a SoundStructure TEL1 being replaced with a SoundStructure
VoIP Interface.
PHONE LINE
PIN 2: TXD
PIN 3: RXD
PIN 5: GROUND
PIN 7: CTS
PIN 8: RTS
LAN
C-LINK2
OBAM IR
RS-232
IN OUT
12V
0004F2009EFF
PIN 2: TXD
PIN 3: RXD
PIN 5: GROUND
PIN 7: CTS
PIN 8: RTS
LAN
C-LINK2
OBAM IR
RS-232
IN OUT
12V
PHONE LINE
