Connecting Over Conference Link2
6 - 17
Digital Microphone Array Example
As an example of using the digital microphone arrays, consider a design that
uses two ceiling microphone arrays, one wireless analog microphone, a stereo
program audio source, a Polycom HDX video conferencing system, a tele-
phone line, and a stereo amplifier.

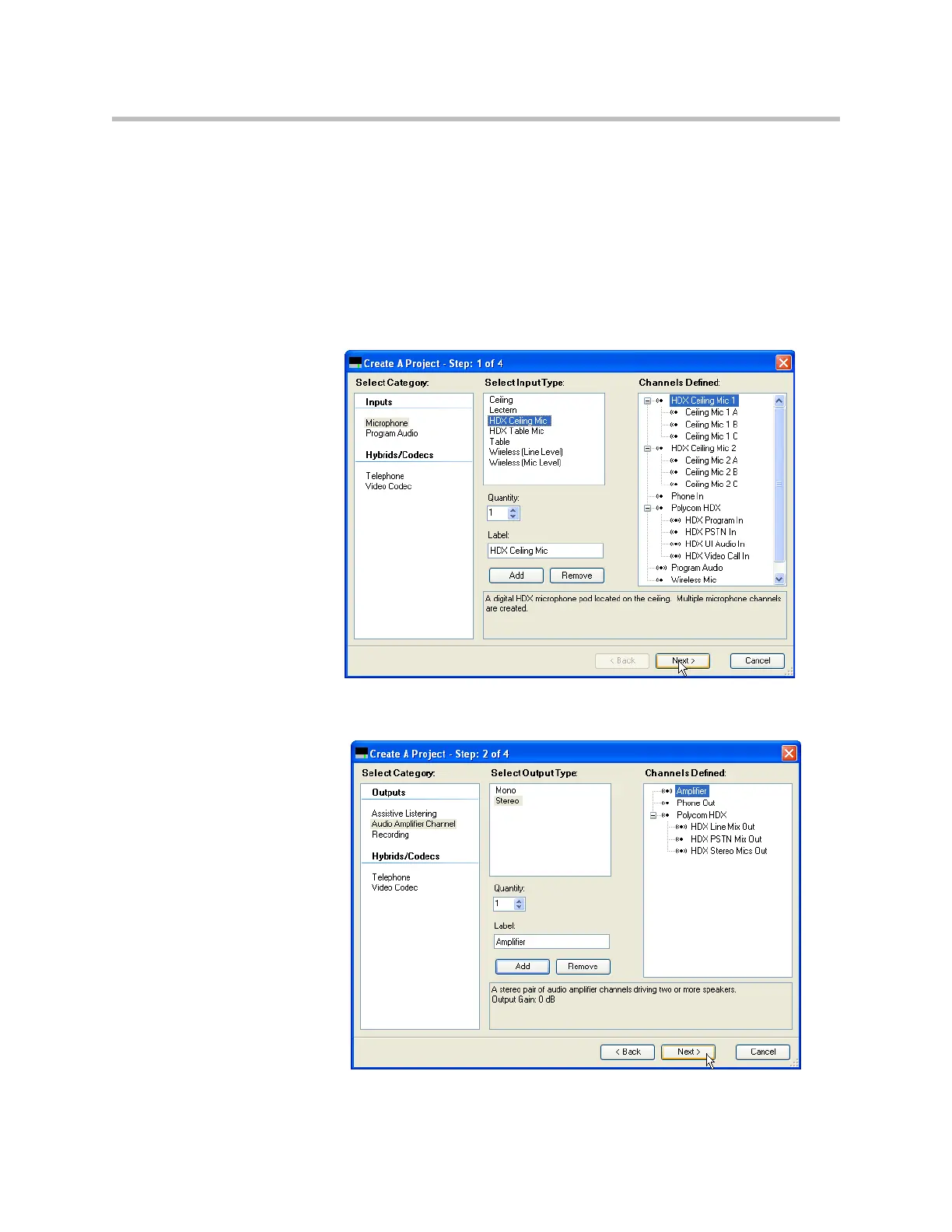

The first step of the design process is to select the input signals as shown in the
following figure. Notice that for each HDX ceiling microphone array that is
added, there are three mono microphones with names that include A, B, and
C that are added to the project.
The second step of the design process is to select the outputs from the system
as shown in the following figure.
