8 Mics With The Polycom HDX Video Conferencing System
This example shows how to use 8 analog microphones with a SoundStructure
device connected to a Polycom HDX video conferencing system. This system
will use the telephony interface that is native to the Polycom HDX system.

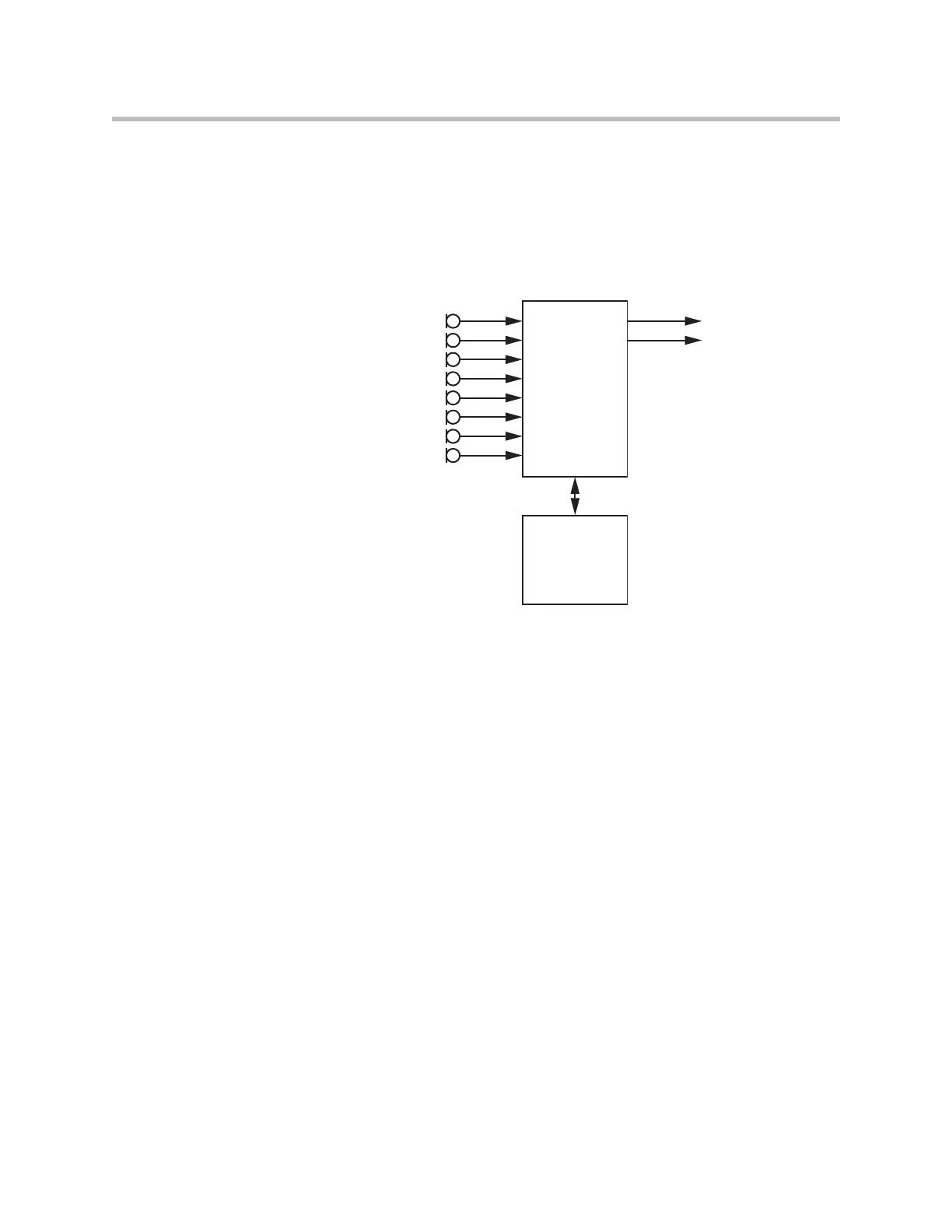

A drawing of this type of system is shown in the following figure.
SoundStructure Studio Steps
The steps to create this project are shown in the next figures. The names for the
channels are the names that SoundStructure Studio defines.
SoundStructure
C8
Polycom HDX
Table Mic 1
Table Mic 2
Table Mic 3
Table Mic 4
Table Mic 5
Table Mic 6
Table Mic 7
Table Mic 8
Conference Link2
Amplifier (L)
Amplifier (R)
