Design Guide for the Polycom SoundStructure C16, C12, C8, and SR12
13 - 88

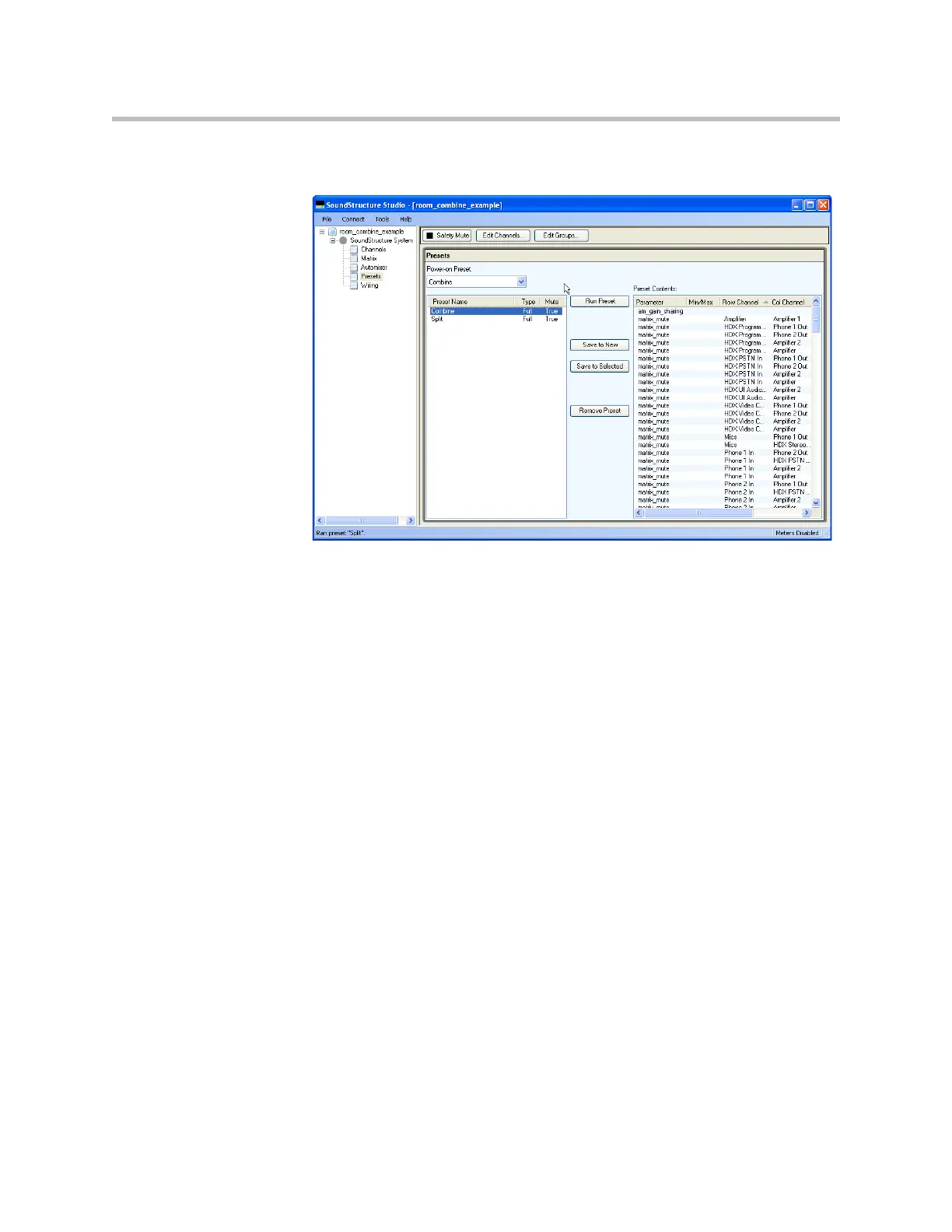

Finally, confirm that there is a power on preset - in this example it should be
set to be the “Combine” preset as shown in the following figure.
Wiring Information
The system should be wired according to the information found in the wiring
page and shown in the following figure. To wire the system with virtual chan-
nels on other physical inputs or outputs, simply drag the channels to their
desired locations and then wire the system according to the modified wiring
information.
