When a Polycom HDX video codec is selected, there are multiple audio chan-
nels that are created automatically and usable independently in the
SoundStructure matrix. See Chapter 6 - Connecting over CLink2 for additional
information on the audio channels and the processing that is available on these
channels.
When a video codec or telephony option is selected, the corresponding output
signal automatically appears in the outputs page as well.
Channels may be deleted by selecting the channel in the Channels Defined:
field and clicking Remove.
Step 2 - Output Signals
In step 2 of the design process, the outputs from the system are specified in the

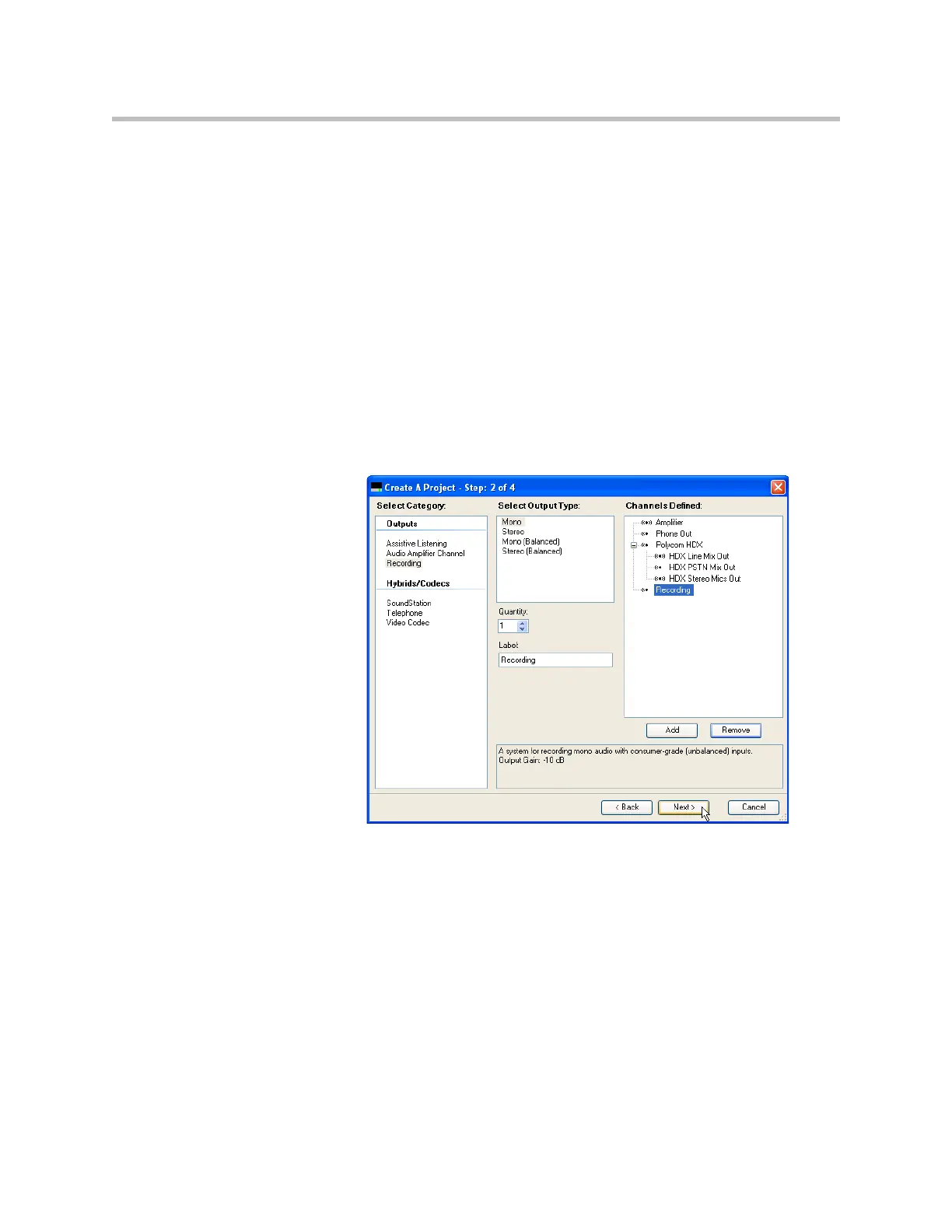

same manner that inputs were created. A sample collection of outputs is
shown in the following figure.
The outputs include audio amplifiers, recording devices, assistive listening
devices, and also other telephony or video codec systems. If the desired style
of outputs is not found, select something close and then customize the settings
as described in the next chapter.
In this example, a stereo amplifier was selected as well as a mono recording
output. The telephone and Polycom HDX video conferencing system outputs
were automatically created when their respective inputs were added to the
system. Notice that there are multiple audio channels associated with the Poly-
com HDX codec. See Chapter 6 for additional information.
