PoolPak MPK series - Remote Cooling Tower Condenser Sizing and Performance

© 2017 PoolPak LLC. All rights reserved. MPK Series - Installation, Operation and Maintenance | 25
PoolPak
®
MPK Series IOM

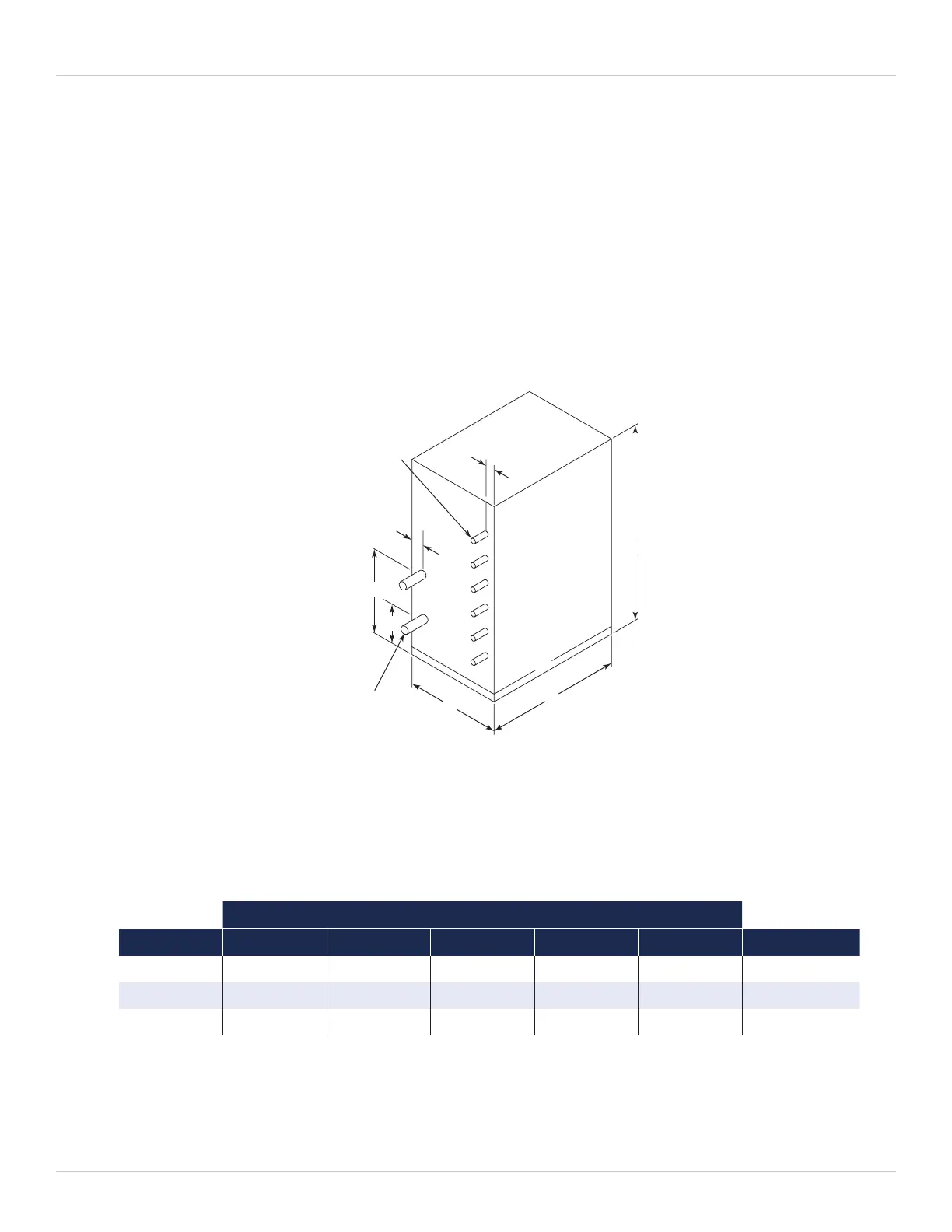

Figure 3-2. Remote Cooling Tower Dimensions
Table 3-4. Remote Cooling Tower and Chilled Water Cabinet Dimensions
PoolPak Optional Water-Cooled Condenser Cabinet - Remote
4. It is permissible to select a condenser with the proper capacity at the nominal temperature difference +3°F.
Choose the closest one.
5. The field wiring diagram requires a contact-closure signal indicating that power is applied at the air-cooled
condenser for proof of operational readiness.
6. Choose a condenser with fan-cycling head pressure controls set to a minimum condensing temperature of 90°F.
If there are questions, consult the factory.
Remote Cooling Tower Condenser Sizing and Performance
F
E
B
A
C
REFRIGERATION
CONNECTIONS
3" APPROXIMAT E
3" APPROXIMATE
POOLPAK OPTIONAL WATER-COOLED
CONDENSER CABINET - REMOTE
D
- WATER
PIPING
DIAMETER
DISCHARGE
SYSTEM 2
LIQUID
SYSTEM 2
DISCHARGE
SYSTEM 3
LIQUID
SYSTEM 3
LIQUID
SYSTEM 1
DISCHARGE
SYSTEM 1
Dimensions from Figure 3-3 (Inches)
Cabinet Size
2
A1 B1 C1 E1 F1 Weight (lbs)
B 91 68 68 15 45 800
C 91 68 75 15 55 1200
D 91 68 75 15 55 1350
1
All Dimensions are approximate — Contact factory for exact dimensions
2
B - cabinet - B030, B035, B040, B045, B050;
C - cabinet - C035, C040, C045, C050, C060, C070;
D - cabinet - D060, D070, D080, D090
