PoolPak MPK series - Multiple Unit Control Schematic; MPK Field Wiring - Communications

© 2017 PoolPak LLC. All rights reserved. MPK Series - Installation, Operation and Maintenance | 85
PoolPak
®
MPK Series IOM

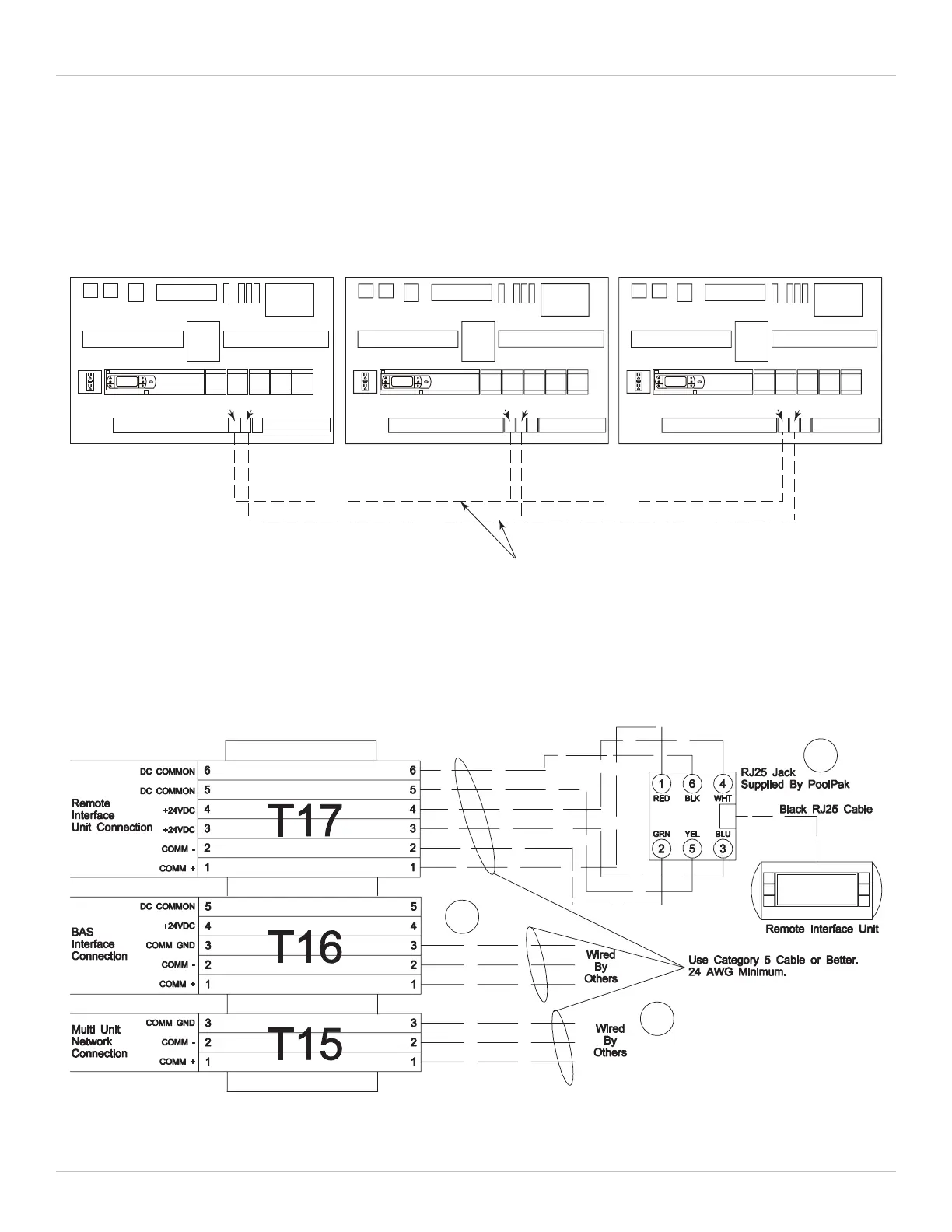

Figure 6-2. Multiple Unit Connection Schematic
Figure 6-3. Field Wiring - Communications
Multiple Unit Control Schematic
MPK Field Wiring - Communications
CONTROL PANEL
UNIT #1
CONTROL PANEL
UNIT #2
CONTROL PANEL
UNIT #3
T16
BAS BAS
T15
- 3 WIRES
- 24 GAUGE MIN
- 500 FT MAX LENGTH
T16
T15
T16
T15
CATEGORY 5
TWISTED PA IR
NET NET
3
2
1
