www.poolpak.com | 800-959-772532 | MPK Series - Installation, Operation and Maintenance
3L1 3L2 3L3
G
ELECTRIC
HEAT FUSED
DISCONNECT
3 PHASE
60 HZ
COPPER CONDUCTORS ONLY
ELECTRIC HEAT ONLY
1L1 1L2 1L3
G
FUSED
DISCONNECT
3 PHASE
60 HZ
COPPER CONDUCTORS ONLY
3L1 3L2 3L3
G
ELECTRIC
HEAT FUSED
3 PHASE
60 HZ
COPPER CONDUCTORS ONLY
ELECTRIC HEAT ONLY
1L1 1L2 1L3
G
FAN MOTORS
FUSED
DISCONNECT
3 PHASE
60 HZ
2L1 2L2 2L3
COMPRESSOR
FUSED
DISCONNECT
3 PHASE
60 HZ
COPPER CONDUCTORS ONLY
G

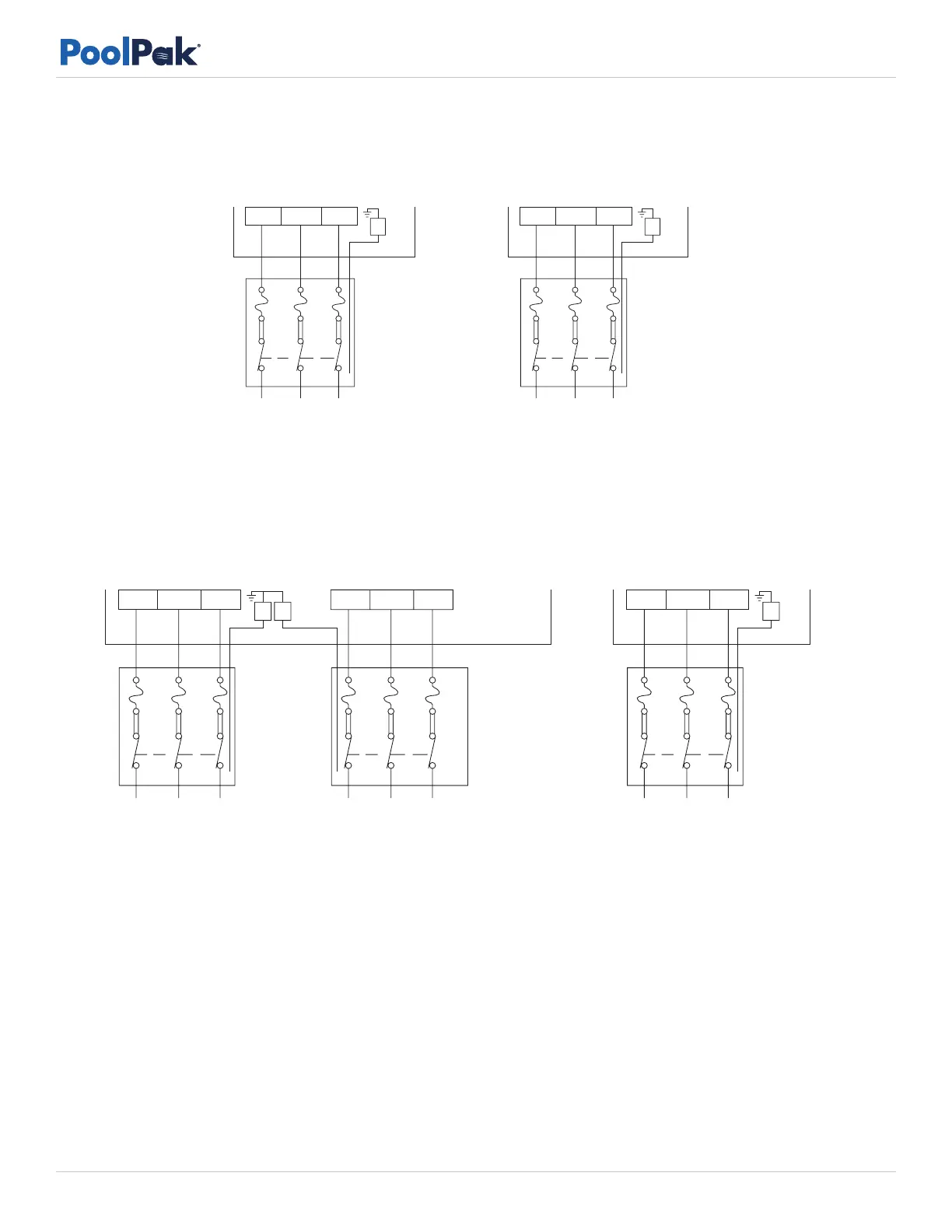

Figure 4-2. Single Point Power Supply
Figure 4-3. Dual Point Power Supply
CONTROL WIRING
All control wiring field connections are described in the CPCS Controls Field Wiring information in this section.
This wiring diagram is also furnished with the PoolPak.
CONDENSATE PIPING
The condensate may be piped to a drain or returned to the pool if local codes allow. If returned to the pool, the
condensate should be piped to the skimmer. PoolPak LLC recommends neither for, nor against, the practice of
returning condensate to the pool. The installer should review the local codes prior to making the decision of where
to dispose of the condensate. The amount of condensate produced in a year is about equal to the volume of the
pool.
