PoolPak
®
MPK Series IOM
Analog Outputs
Accessing the Analog Outputs menu is typical for advanced troubleshooting. Below is a listing of the available
analog outputs and default values for testing:
• Rcrc Dpr Sig – Recirculation Air Damper Signal -
Ovrd = 000.0, Min Val 000.0 = 02.0V, Max Val 100.0 = 10.0V
• OA Dpr Sig – Outside Air Damper Signal -
Ovrd = 000.0, Min Val 000.0 = 02.0V, Max Val 100.0 = 10.0V
• EvapByp Dpr Sig – Evaporator/Bypass Damper Signal -
Ovrd = 000.0, Min Val 000.0 = 02.0V, Max Val 100.0 = 10.0V
• AuxAir Ht Sig – Auxiliary Air Heating Signal (Control Valve) -
Ovrd = 000.0, Min Val 000.0 = 02.0V, Max Val 100.0 = 10.0V
• AuxAir Cl Sig – Auxiliary Air Cooling Signal (Control Valve) -
Ovrd = 000.0, Min Val 000.0 = 02.0V, Max Val 100.0 = 10.0V
• Sply Spd Sig – Supply Fan Speed Signal -
Ovrd = 000.0, Min Val 000.0 = 00.0V, Max Val 2000.0 = 10.0V
• Exh Spd Sig – Exhaust Fan Speed Signal -
Ovrd = 000.0, Min Val 000.0 = 00.0V, Max Val 2000.0 = 10.0V
• Pur Spd Sig – Purge Fan Speed Signal -
Ovrd = 000.0, Min Val 000.0 = 00.0V, Max Val 2000.0 = 10.0V
HISTORY
The History menu, also known as the Fault History Log, maintains a log of the last 100 unit faults. Each fault in the
log is assigned a number from 1 to 100 (Fault #01 is the most recent). This fault number is in the upper left of each
fault screen. The time and date the fault occurred is in the upper right. The Fault Condition is on the second line on
each screen. See the list of Fault Conditions in the Troubleshooting section.
Use the  and  arrow keys to cycle through the faults one at a time. For each fault, there are also six screens of
additional information. Use the

key to scroll through these detailed fault screens. See below breakdown of each
screen for more details.

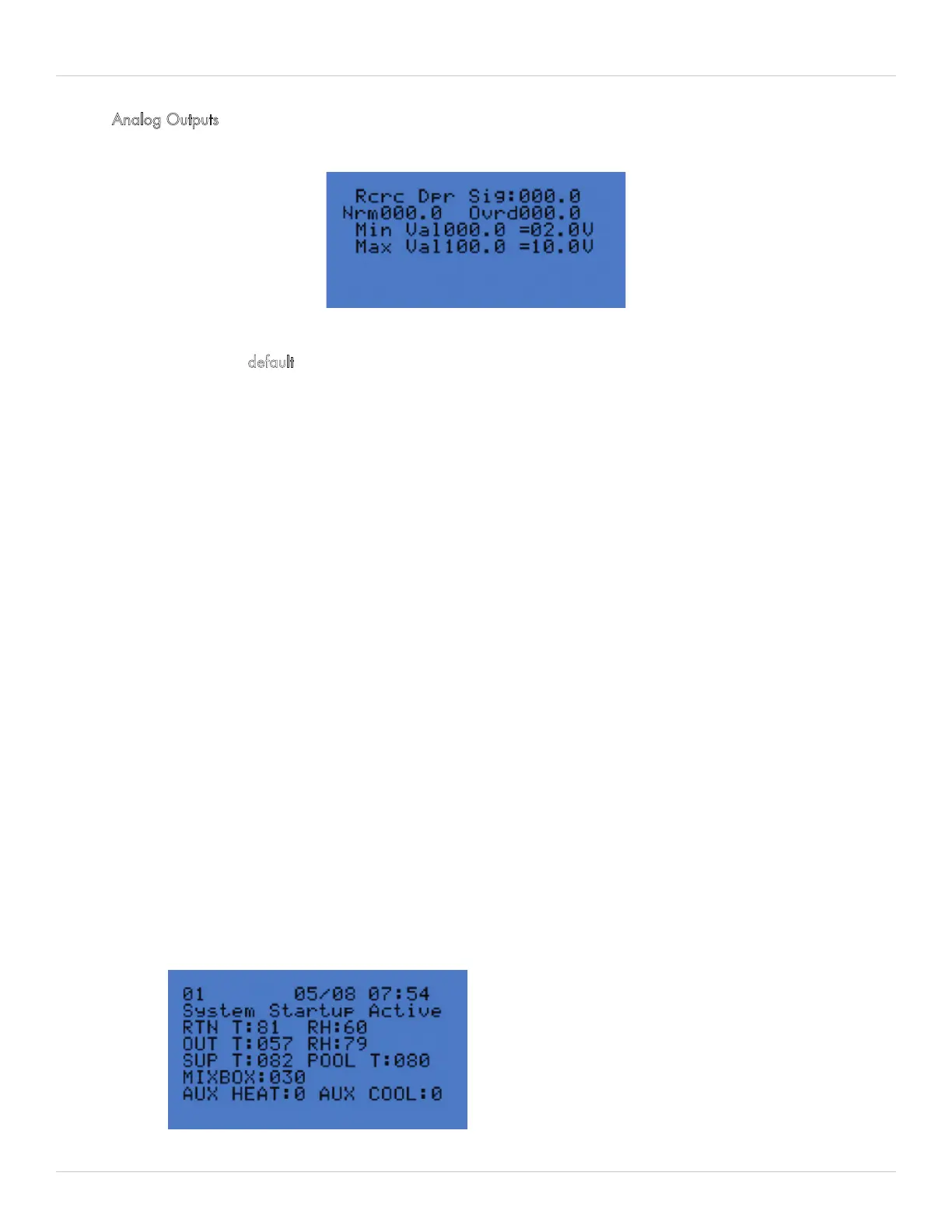

Figure 5-18. Analog Outputs - Recirculation Damper Screen
Figure 5-19. Fault Screen 1 – System Status Overview
RTN T – Return Air Temperature (°F)
RH – Return Air Relative Humidity (%)
OUT T – Outside Air Temperature (°F)
RH – Outside Air Relative Humidity (%)
SUP T – Supply Air Temperature (°F)
POOL T – Pool Water Temperature (°F)
MIXBOX – Mixing Box Position (%)
AUX HEAT – Auxiliary Heat Stages
AUX COOL – Auxiliary Cool Stages
