PoolPak MPK series - Multiple Units; Units in Pits; Decorative Fences

© 2017 PoolPak LLC. All rights reserved. MPK Series - Installation, Operation and Maintenance | 45
PoolPak
®
MPK Series IOM

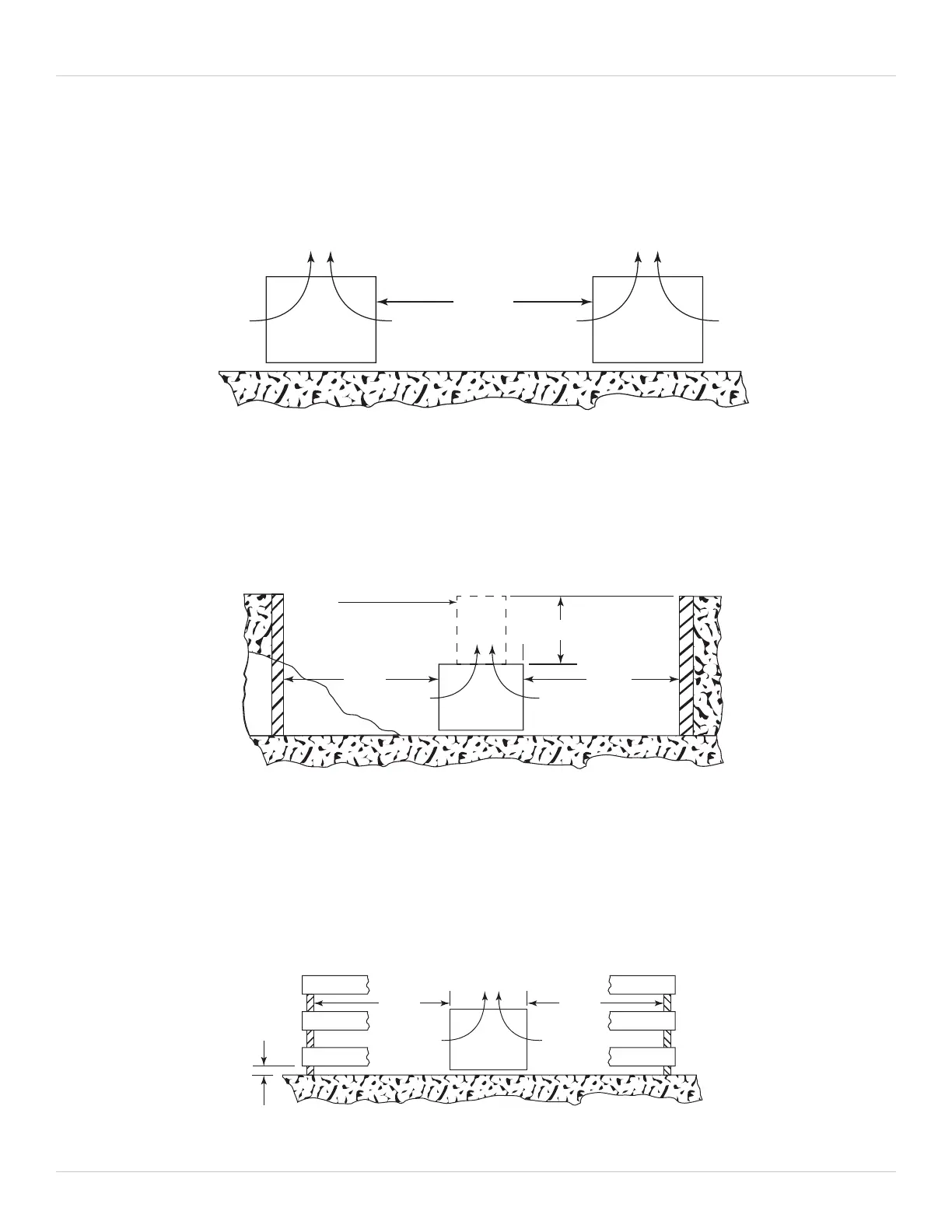

Figure 4-10. Remote ACC Installation Clearances
Figure 4-11. Remote ACC Installation When Installing Units in Pits
Figure 4-12. Remote ACC Installation When Installing Units Near Decorative Fences
MULTIPLE UNITS
For units placed side by side, the minimum distance between units is 12 feet on the coil sides. See Figure 4-10.
UNITS IN PITS
The top of the unit should be level with the top of the pit and side distances increased to 8 feet on the coil sides.
If the top of the units is not level with the top of the pit, discharge cones or stacks must be used to raise discharge
air to the top of the pit. This is a minimum requirement. See Figure 4-11.
DECORATIVE FENCES
Fences must have 50% free area, with 1 foot undercut, a 6 feet minimum clearance on the coil sides, and must not
exceed the tops of the unit. See Figure 4-12. If these requirements are not met, the unit must be installed as indicated
for “Units in Pits”.
MIN.
12 FT
AIR FLOW
AIR FLOW
MIN.
MIN.
AIR
FLOW
8 FT
8 FT
STACK
(BY OTHERS
IF SUPPLIED)
10’ MAX.
MIN.
1”
MIN.
MIN.
AIR FLOW
6 FT
6 FT
