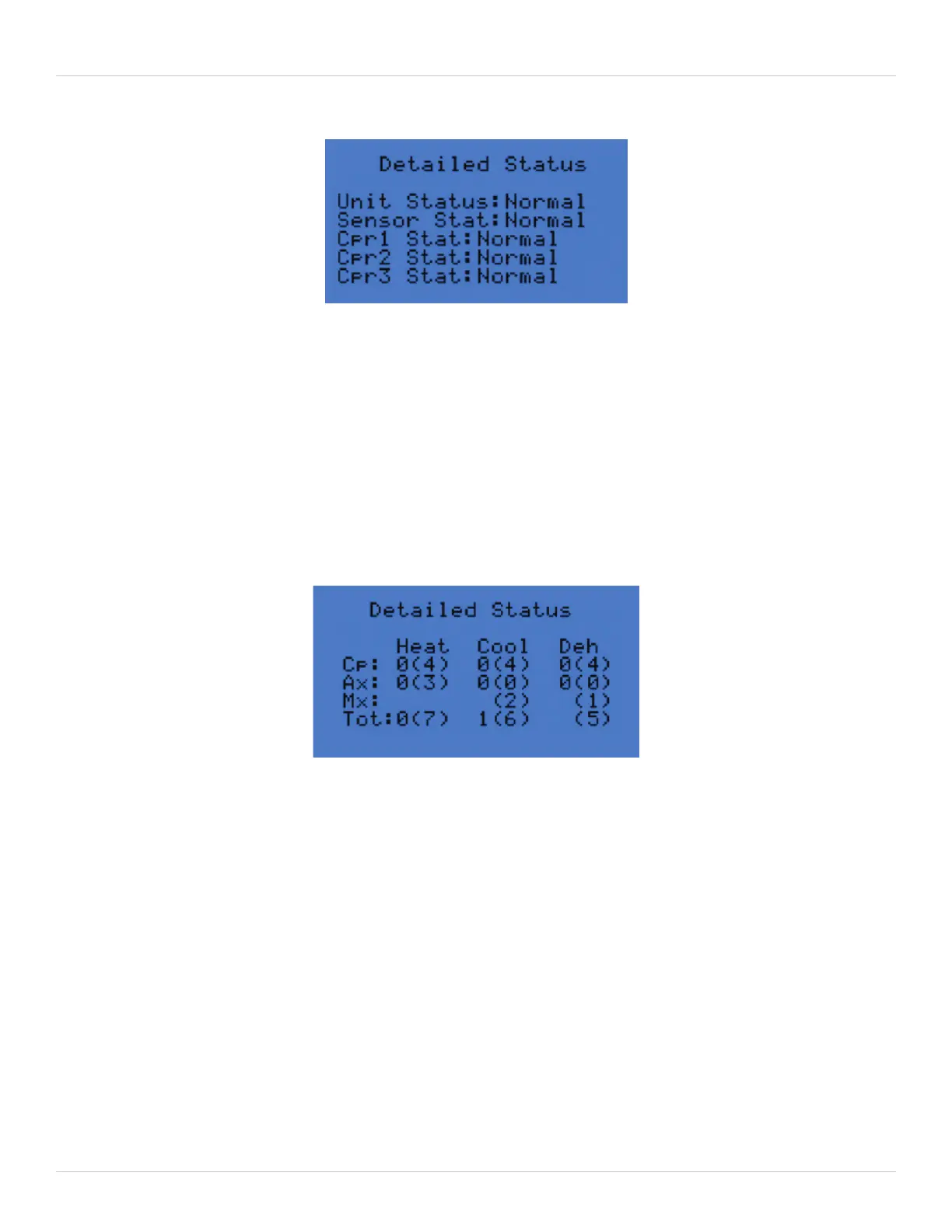

Figure 5-8. Detailed Status Screen 5: Status Overview
Figure 5-9. Detailed Status Screen 6: Operation Mode Stages
• Unit Status = Unit Status Normal or AlarmName condition
• Sensor Stat = Sensor Status Normal or SensorName. If multiple sensors are in error, this field indicates the
highest priority sensor with an error.
• Cpr1 Stat = Compressor Module 1 Status Normal or CprFaultName
• Cpr2 Stat = Compressor Module 1 Status Normal or CprFaultName
• Cpr3 Stat = Compressor Module 1 Status Normal or CprFaultName
Refer to the Troubleshooting section for a listing and description of AlarmName, SensorName. and CprFaultName.
• Cp = Compressor Stages Requested (Available) for Heating, Cooling, or Dehumidification
• Ax = Auxiliary Stages Requested (Available) for Heating, Cooling, or Dehumidification
• Mx = Mixing Box Stages Requested (Available) for Cooling or Dehumidication
• Tot = Total Stages Requested (Available) for Heating, Cooling, or Dehumidification
