SECOND STAGE
3755

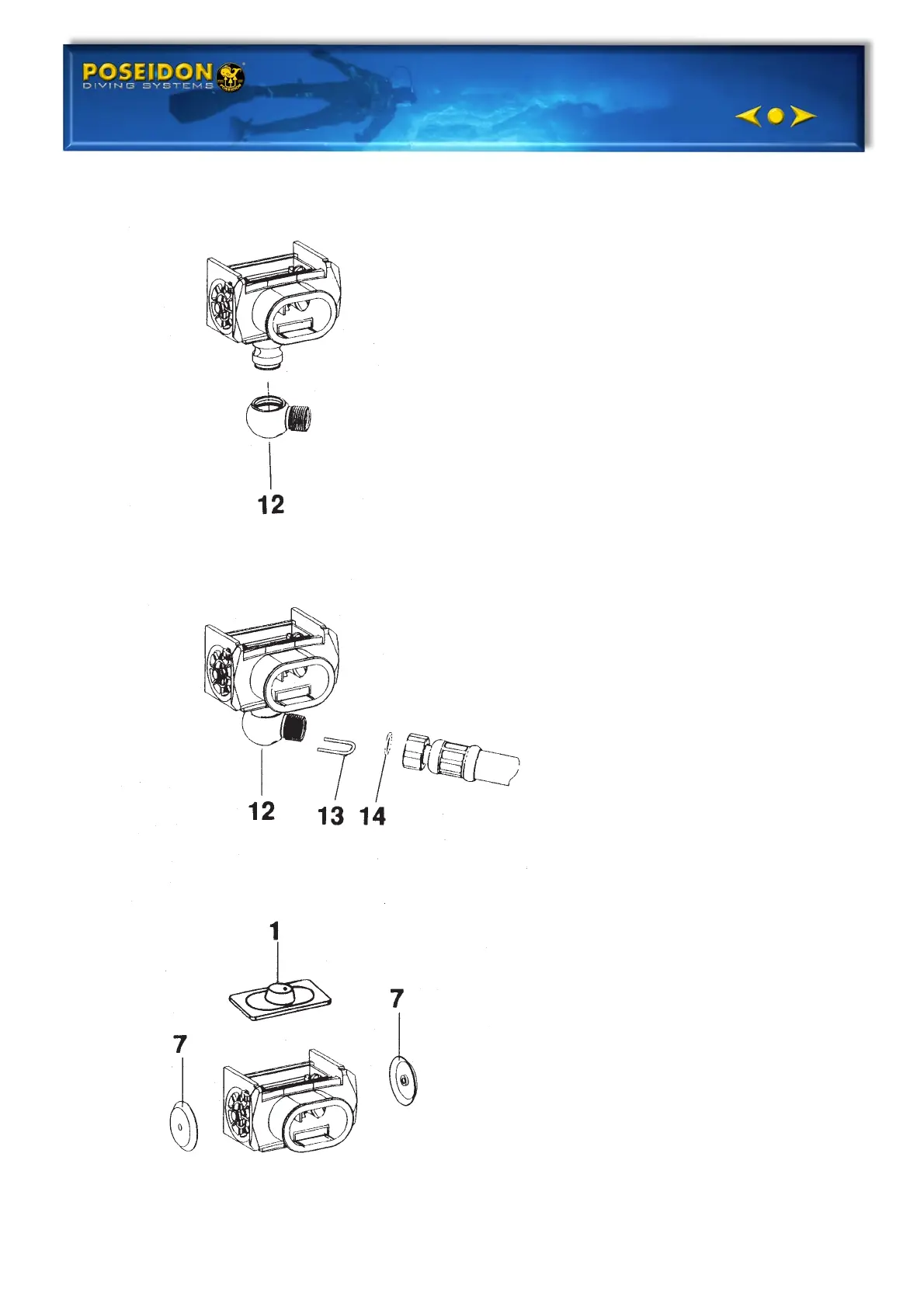

Assembly:
1. Lubricate the inside of the
swivel (12) and press it on the
second stage.
2. Press in the securing clip (13).
Install the o-ring (14) on the low
pressure hose. Lubricate the o-
ring (14) and the thread at the
swivel (12). Screw the low
pressure hose on the swivel.
Tighten with a 15 mm open
wrench.
3. Test the low pressure valve for
leaks according to chapter
“Testing and adjustment of
regulator Triton”.
4. Install the exhaust valves (7) and
the diaphragm (1). Press the
edge of the diaphragm into the
groove of the valve housing. Use
an o-ring remover.
